Combination crusher

Combination crusher

Processing capacity:12-1000t/h Discharge opening:3-60mm Feeding size: 35-300mm Applied material: Iron ore, coal, clinker, limestone, dolomite, flint clay, lead zinc ore, serpentine, blast furnace slag, gangue and phosphate ore.

Similar Products

Overview of compound crusher

The compound crusher can crush large materials, and the discharging granularity can be adjusted at will without influencing the abrasion of board hammer and lining plate. The combination crusher adopts the no-grizzly-bar structure to avoid blocking, which is suitable to crush materials with high moisture and silt content. The elastic adjustment structure of compound crusher will help discharge materials that can’t be crushed, thus avoid damaging the equipment.

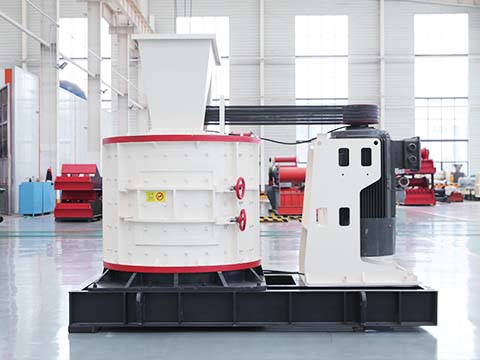

compound crusher

Working principle of compound crusher

Materials fall into the high speed spinning impeller from the top of the compound crusher or combination crusher, and get crashed and crushed at high speed with the other materials spreading around the impeller in an umbrella shape under the high speed centrifugal action. After materials hit each other in the combination crusher, they get further crashing, grinding and crushing in eddy current between the impeller and chassis, then they are discharged from the bottom barrel, forming multiple closed circuit recycling process. The particle size of finished product is controlled by the screening machine.

compound crusher

Technical Parameters

Model
800
1000
1250
1500
1750
Rotor
diameter
(mm)
650
800
1000
1250
1560
Cylinder
height(mm)
800
850
850
1000
1410
Main shaft
rotation
speed
(r/min)
1350
970
740
650
600
Feeding
size(mm)
50
70
100
100
100
Discharging
size (mm)
0-5
0-5
0-5
0-5
0-5
Processing
capacity (t/h)
5-15
10-30
20-60
30-80
40-100
Motor
Power(kw)
30
55
75
110
132
Rotation
speed
1440
1440
750
750
750
Dimensions
(L×W×H)(mm)
2200×860×1980
2700×1160×2000
2800×1400×2730
3100×1900×2300
3350×2100×2800
Total weight (t)
2.3
4.5
9.73
18.1
26.61
