Cone ball mill

Cone ball mill

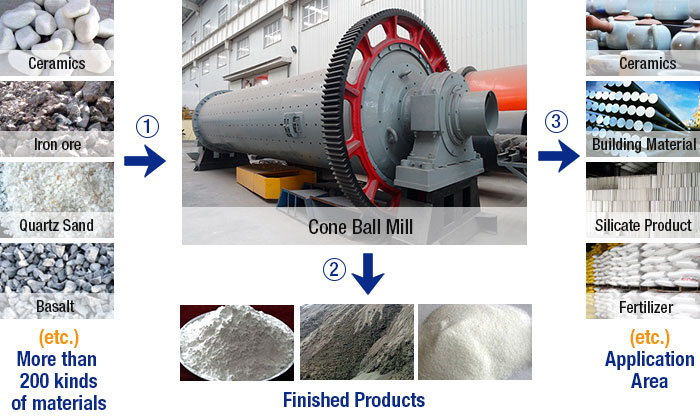

Processing ability:0.5-500t/h Feeding size:≤25mm Applied material: cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

Similar Products

The cone ball mill made by the cone ball mill machine manufacturer of Henan Fote is the key equipment for further grinding process of the crushed materials. Cone ball mill is widely used to grind wet or dry materials in the industries of cement, silicate products, new construction materials, refractory matter, chemical engineering, non-ferrous and ferrous metals and ceramics, etc. Our cone ball mill price is quite reasonable and our cone ball mills are popular among customers. The cone ball mill is made up of the feeder, discharging device, rotary part and transmission engine (reducer, small transmission gear, electrical machine, electronic control).

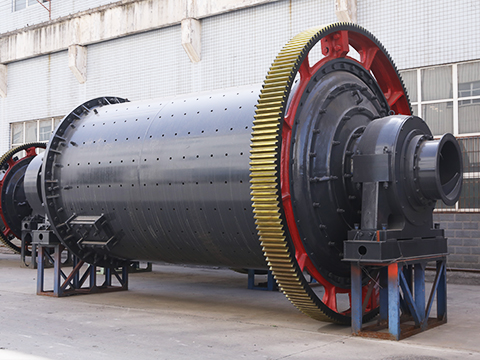

Cone ball mill

The cone ball mill made by the Chinese ball grinder manufacturer is a grid shaped one made up of a horizontal type cylinder rotating device, gear drive and two cabins. Materials enter the first cabin via the feeding device across the hollow shaft uniformly. In the first cabin, there is a ladder scale board or a ripple scale board with different steel balls which will be lifted to certain height in the effect of centrifugal force produced by the rotating cylinder. Then the balls fall to impact and grind the materials. After the rough grinding process, materials enter the second cabin through the single layer cabin separating board. There is a scale board with steel balls in the second cabin which will grind materials. The finished powder materials are discharged from the unloading plate, thus finishing the grinding process.

cone ball mill

Technical Parameters

Model Shell rotation speed
(r/min)
Ball load
(t)
Feeding size
(mm)
Discharging size
(mm)
Capacity
(t/h)
Motor power
(kw)
Total weight
(t)
Ф900×1800 36-38 1.5 ≤20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 ≤20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 ≤25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 ≤25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 ≤25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 ≤25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 ≤25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 ≤25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 ≤25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 ≤25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 ≤25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 ≤25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 ≤25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 ≤25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 ≤25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 ≤25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 ≤25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 ≤25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 ≤25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 ≤25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 ≤25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 ≤25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 ≤25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 ≤25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 ≤25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 ≤25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 ≤25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 ≤25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 ≤25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 ≤25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 ≤25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 ≤25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 ≤25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 ≤25 0.074-0.4 148-615 4500 525
