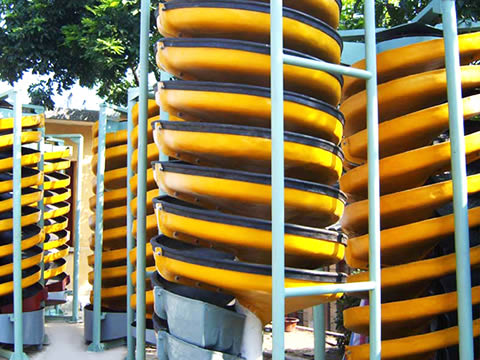

Gravity spiral chute

Gravity spiral chute

Supply Ability:0.15-6 t/h Spiral diameter:300-3000mm Spiral rotation speed:3.2-30r/min Applied material:iron ore, ilmenite, chromite, pyrite, zircon, rutile, monazite, tungsten, tin, tantalum, niobium, etc

Similar Products

Overview of gravity spiral chute

gravity spiral chute

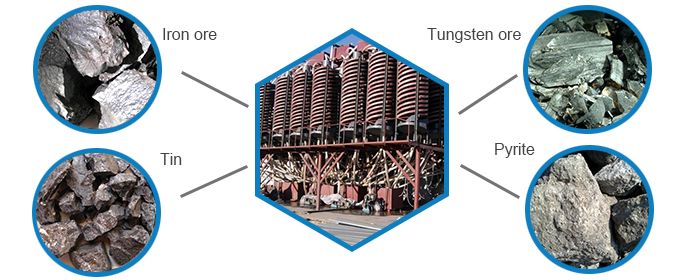

The separating granularity of the gravity spiral chute is 0.3-0.02mm, and it's mainly used for separating iron ore,limonite, chromites, trotline, zirconium, retiles, monazite, centimes, wolfram ore, Stan nary, tantalum minerals, niobium minerals and other non feerous metal, rare metal and non metal.

The advantage of the gravity spiral chute is even separation process,easy to control,and adjustable feeding size,high concentrate ratio, etc.

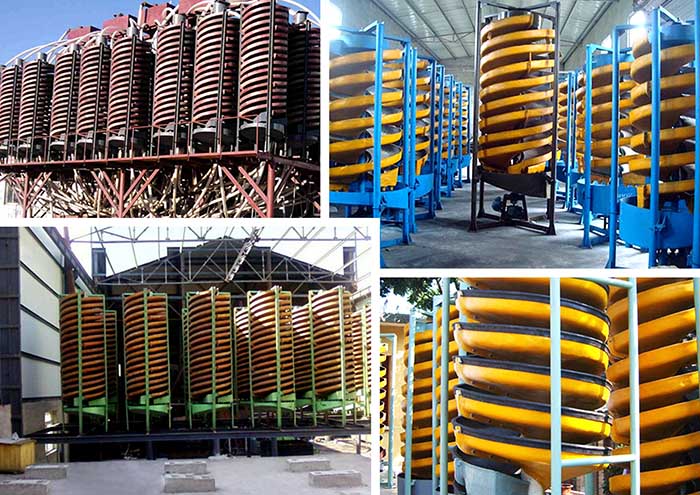

Gravity Spiral Chute

Working principle of gravity spiral chute

Make the gravity spiral chute stand,adjust the vertical line,fixed the proper place with the iron stucture or wood. Make the ore sand deliver to two feed openings of the gravity spiral chute top,enter enough water,adjust the mash chrome,the mash flows freely from the high,produce the inertial force at the speed of the rotary,divided the sand and ore,the concentrate comes into bucket with tract,gangue comes into the bucket with the tract to the sand pool,and pump off,complete the whole process.

Technical Parameters

Model
DL2000
DL1500
LL1200
LL900
External diameter
(mm)
2000
1500
1200
900
Inner diameter
(mm)
360
250
220
180
Screw distance
(mm)
1200
900-675
720/540
540/360
Ratio
(scroll distance/diameter)
0.6
0.6
0.6/0.45
0.6/0.4
Transverse obliquity
(°)
Star
2-4
2-4
2-4
2-4
Turn
3.5
4
4/5
4/5
Feeding size
(mm)
0.4-1
0.03-1
0.03-0.3
0.03-0.3
Feeding thickness
(%)
20-45
30-45
30-50
30-50
Processing capacity
(t/h)
15-40
8-16
4-6
2-3
Area
(㎡)
5.7
3.3
2
1.2
Height
(mm)
6.6-8
5.5
5.23
3.2
