Heavy hammer crusher

Heavy hammer crusher

Processing ability:100-800t/h Inlet size:1020×750-1850×1400mm Feeding size:≤600–≤1200mm Applied materials:limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc

Similar Products

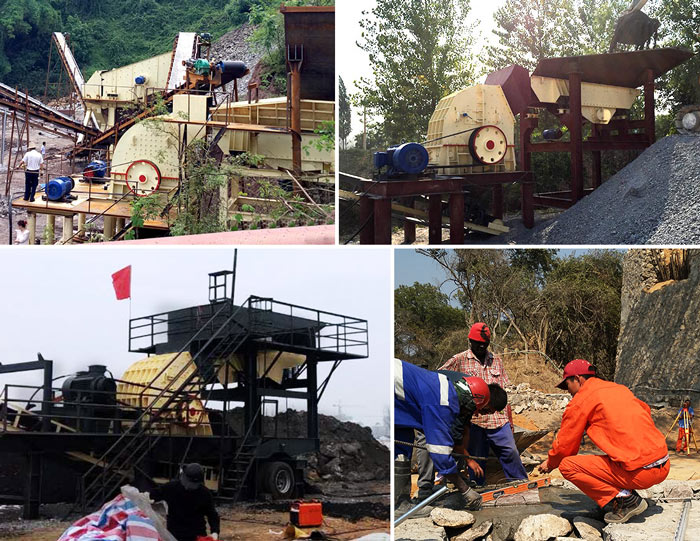

Application of PCZ Hammer Crusher

PCZ type heavy hammer crusher is applied to highways, high-speed railways, tunnels, large bridge, cement, metallurgy, building materials, coal, and chemical industry.

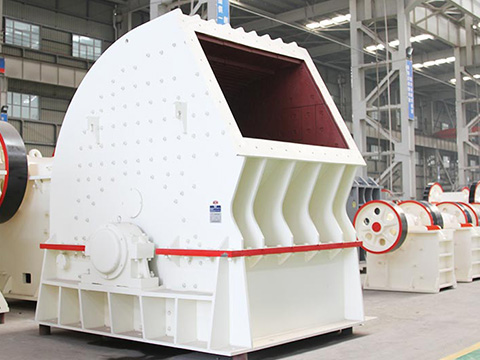

Heavy Hammer Crusher

Brief introduction to heavy hammer crusher

The heavy hammer crusher is a new type of hammer crusher improved based on the design of the PC series crushers. Our experts combine the experimental data from the crushing test base with the latest customers’ feedback and the industrial development status. Compared with other hammer crushers, the heavy hammer crusher has the advantages of large diameter, heavy hammerhead and high striking speed. This crusher overcomes the disadvantages of the abrasion problem of the hammerhead and the fracture problem of the hammer pin.

Heavy Hammer Crusher

Working principle of heavy hammer crusher

Users can adjust the distance between the grates of the heavy hammer crusher to change the material particles in order to meet different demands. The high speed rotary hammer can impact the materials high efficiently and the crusher can be used for the wet and dry crushing processes. The main working part of the heavy hammer crusher is the rotor with the hammerhead which is made up of the main shaft, round disk, pin roll and the hammerhead. The motor drives the rotor to rotate at high speed and the materials enter the crusher from the upper feeding hole. After being impact, cut and ground by the hammer, materials are crushed completely. There is a screening board installed at the bottom of the rotor. Materials with the particle size smaller than the screen holes will be discharged from the screening board. The rough particles will remain on the screen board to be impact and ground again. Then they are also discharged through the screen board.

Technical Parameters

Model Rotor diameter×length
    (mm)
Feed opening Length×width
(mm)
Feeding size
   (mm)
Capacity
  (t/h)
Power
(kw)
Total weight
(t)
PCZ1308 1300×1000 930×650 ≤600 100-180 4P   132 2818×2100×2391
PCZ1410 1400×1000 1020×750 ≤700 180-230 4P   160/90×2 2830×2100×2485
PCZ1610 1600×1000 1150×1000 ≤900 260-350 4P   220-250/132×2 3370×2415×2751
PCZ1615 1600×1500 1400×1000 ≤900 380-550 4P   355-400/200×2 3371×2925×2752
PCZ1716 1700×1600 1640×1300 ≤1200 600-1100 4P   250×2 3520×3000×3210
PCZ1720 1700×2000 1980×1300 ≤1200 800-1200 4P   400×2 3670×3390×3328
PCZ2018 2000×1800 1850×1600 ≤1500 900-1500 450×2 3729×3300×4451
PCZ2225 2200×2500 2100×2300 ≤1700 2000-2600 1250 3931×4100×4660
