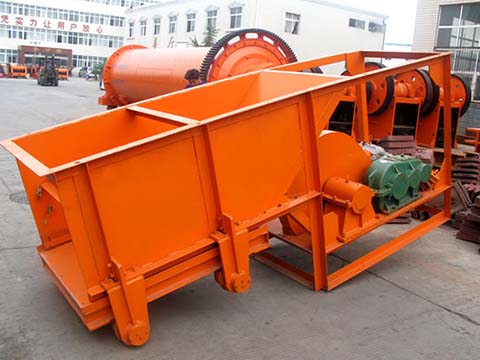

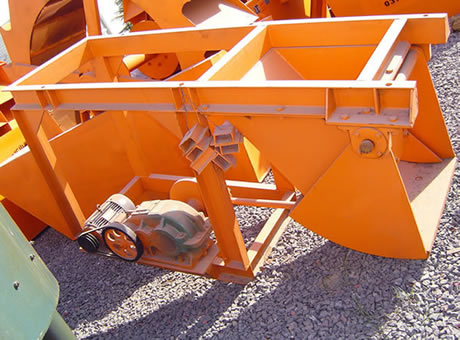

Pendulum feeder

Pendulum feeder

Processing ability:0-25t/h Feeding granularity:35-50mm Applied material: granular material, powdery material, etc

Similar Products

Pendulum feeder is suitable for concentrating coal chemical industryand other departments, makes the grain delivery to various set of accepting the material from the store chute by the filter. The pendulum feeder is not suitable for delivering the dry power of the too big material or else, it may appear the fly-ash pollution or the jam of the output.

Pendulum feeder

Pendulum feeder is suitable for concentrating coal chemical industryand other departments, makes the grain delivery to various set of accepting the material from the store chute by the filter. The pendulum feeder is not suitable for delivering the dry power of the too big material or else, it may appear the fly-ash pollution or the jam of the output.

Technical Parameters

Product Name
Pendulum feeder
Pendulum feeder
Product size
400×400
600×600
Swing times(time/min-1)
47
45.8
Discharge opening(mm)
Width
400
600
Height
400
600
Swing journey(mm)
0-170
0-220
Max.Feeding Size(mm)
35
50
Processing capacity(t/h)
0-12
3-25
Motor
Model
Y90S-4
Y100L-4
Power(kw)
1.1
2.2
Total weight(kg)
269
558
