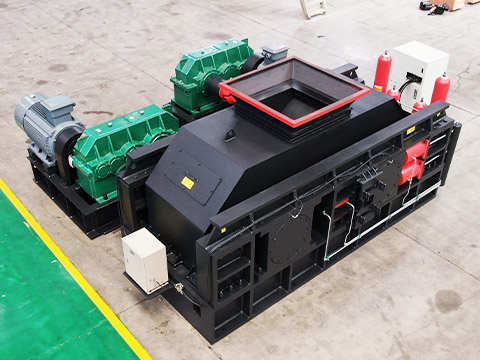

Teeth roll crusher

Teeth roll crusher

Processing ability:70-460t/h Feeding granularity:100-800mm Applied material:coal, pebble, perlite, limestone, dolomite, etc

Similar Products

Overview of teethed roll crusher

The tooth roll crusher is with big reduction ratio, large capacity, low noise, little vibration, less dust, low energy consumption, small footprint, simple and convenient maintenance, without any requirements on moisture of to-be-crushed materials. Double toothed roll crusher is equipped with hydraulic automatic subordination device, can effectively prevent damage on roll, and the teeth-roll crusher or toothed-roll crusher is equipped with smart-clearing device, which can automatically remove adherent material on chamber wall of crusher.

tooth roll crusher

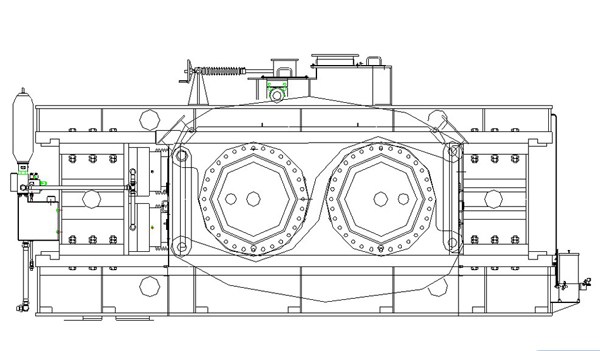

Teeth roll crusher uses the high squeezing extrusion force generated by relative rotation of wear-resistant rollers to crush materials. After materials being fed into the roll gap, materials will be crushed into required size under extrusion force and shear stress, and then, crushed materials will be discharged and then sent out by belt conveyor.

Production Capability of teeth roll crusher

Henan Fote Heavy Machinery Co., ltd. is a large-scale and professional manufacturer of mining machinery and general machinery, with two professional industrial workshops and more than 300 machine machining, welding and assembly equipment with large and medium size.

Technical Parameters

Model Roller
diameter
(mm)
Roller
length
(mm)
Max.
Feeding
 Size
(mm)
Discharging
size(mm)
Output
(t/h)
Motor
power
(kw)
Total
weight(t)
Overall
dimension
(L×W×H)
(mm)
2PGC600×500 600 500 200-450 15-100 30-60 4P   11×2 3800 2450×1800×950
2PGC600×800 600 750 300-600 20-120 60-100 4P   18.5×2 7200 4500×1900×1350
2PGC800×1000 800 1000 500-800 30-150 100-160 4P   22×2 12600 2550×2050×1100
2PGC1000×1000 1000 1000 700-950 30-200 150-200 6P   45×2 18800 2780×4100×1550
2PGC1200×1200 1200 1200 800-1050 30-200 180-250 6P   55×2 29500 2780×3200×1980
2PGC1500×1200 1500 1200 1000-1150 30-200 200-300 6P   75×2 38600 8010×4500×2050
