Vibrating feeder

Vibrating feeder

Processing capacity:1-105t/h Feeding size:125-250mm Trough size:650×2300-6000×1300mm Applied Materials:Pebbles, granite, basalt, iron ore, limestone, quartz stone, gangue, construction waste.

Similar Products

Overview of vibrating feeder

The vibrating feeder also called the vibratory feeder is used to feed the bulk and particle materials continuously and uniformly to the receiving device from the storage bin. In the sand making production line, the application of the vibrating feeder can prevent the receiving port from being blocked.

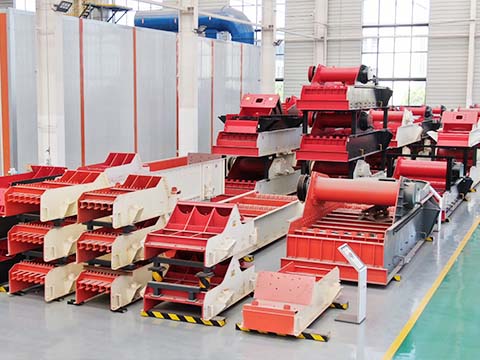

Vibrating Feeder

Advantages and application of vibratory feeder

The vibratory feeder or vibrating feeder is famous for its simple structure, easy operation and low power consumption. We no longer need the lubricating oil to assist the transferring process and can adjust the feeding quantity of the ore reserves. The vibratory feeder and vibrating feeder can be applied in the industries of mining, metallurgy, construction materials, chemical engineering, ore beneficiation and coal mine etc.

vibrating feeder

Technical Parameters

Model Max.
Feeding
Size
(mm)
Processing
 capacity
(t/h)
Motor
power
(kw)
Obliquity
of material
 trough
(°)
Total
 weight
(kg)
Trough
size
(mm)
Dimensions
(L×W×H)
(mm)
GZD-650×2300 300 80 6P   1.1×2 10 2798 650×2300 2300×1360×780
GZD-750×2500 350 100 6P   1.1×2 10 3260 750×2500 2500×1460×780
GZD-850×3000 400 120 6P   3×2 10 3607 850×3000 3110×1800×1600
GZD-1000×3600 500 150 6P   5.5×2 10 3895 1000×3600 3850×1950×1630
GZD-1100×4200 580 240 6P   5.5×2 10 4170 1100×4200 4400×2050×1660
GZD-1300×4900 650 450 6P   7.5×2 10 5200 1300×4900 5200×2350×1750
GZD-1500×5600 1050 450-800 6P   11×2 10 7500 1500×5600 5700×2000×1750
ZSW-380×95 500 100-160 8P   11 0 4823 3800×960 3920×1640×1320
ZSW-490×110 630 150-320 6P   15 0 6647 4900×1100 4980×1830×1320
ZSW-490×130 750 400-600 6P   22 0 8760 4900×1300 4980×2580×2083
ZSW-600×130 750 400-600 4P   22 0 9250 6000×1300 6082×2580×2083
ZSW-600×150 800 500-800 4P   30 0 10190 6000×1500 6086×2662×1912
ZSW-600×180 800 700-1000 4P   37 0 13750 6000×1800 6310×3262×2230
