Ball Mill Ball Mill

Ball Mill

  • Capacity:≤600t/h
  • Feeding Size:≤25mm
  1. Home
  2. Product
  3. Ball Mill

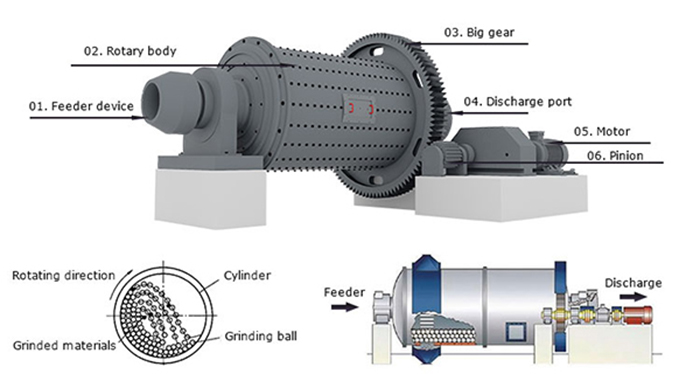

Brief Introduction

Ball mill is an important equipment in the grinding process. It is mainly placed after the crushing equipment and is a key equipment for re-crushing coarse sand and gravel materials.It has the characteristics of high crushing ratio, good reliability, strong adaptability and large processing capacity.According to the different grinding media installed, it can be divided into ball mill, rod mill and autogenous grinding machine without media.

  • Application area:metallurgy, mineral processing, chemical industry, fertilizer, refractory, Ceramics, glass, building materials,solid waste recycling.
Get Price Now Leave Message
Ball Mill

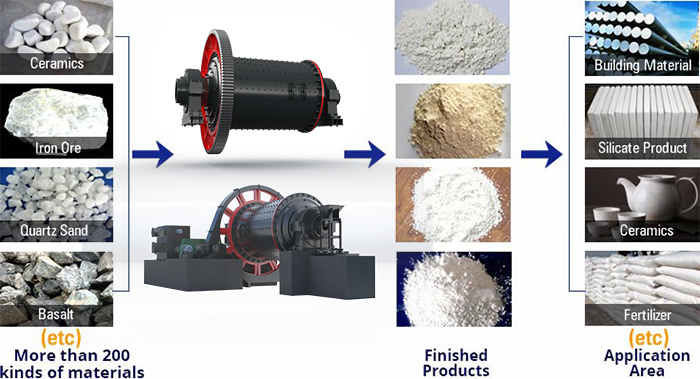

Material

  • Gold ore

  • Iron ore

  • Copper ore

  • Quartz

  • Limestone

Product Advantage

  • Save energy

    Rolling bearings are used instead of traditional sliding bearings to improve starting conditions, reduce the starting torque of the mill and the current during normal operation. The energy consumption of the mill during normal operation is 15 to 20% lower than that of a mill using traditional bearing bushes.

  • Liner castings

    The structure, shape, and material of the cylinder lining plate, end lining plate, compartment plate and discharge grate plate have been tested by long-term production practice.

  • Optimization of cylinder structure

    Lining plates and grinding bodies can be made of alumina ceramics, quartz, SILEX or special materials, and hard minerals are designed to be free of iron pollution.

  • Flexible design of the discharge department, the feeding part has a large amount of feed

    The discharge port can be selected as either grid type or overflow type according to process requirements.The feed inlet is equipped with a feeding spiral to force feeding, which increases the feeding amount.

  • Use a closed system to reduce dust

    The ultra-fine ball mill and classifier form a closed system, with negative pressure transportation and small dust, reducing harm to the human body.

  • Dry oil spray lubrication

    Large and small gears are lubricated with dry oil spray lubrication, which has uniform and reliable lubrication, high energy efficiency, low fuel consumption, small footprint, no oil leakage, and no environmental pollution.

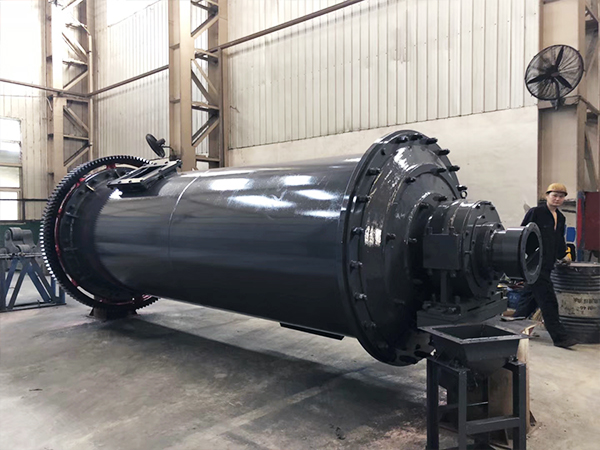

Product Photos

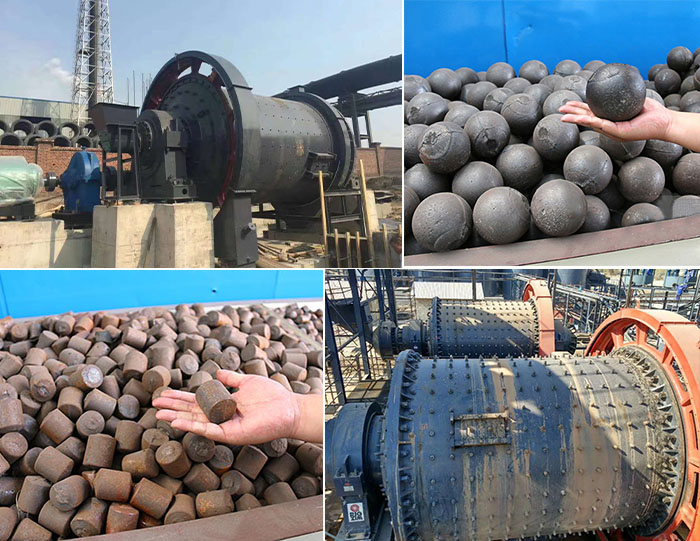

  • Production site

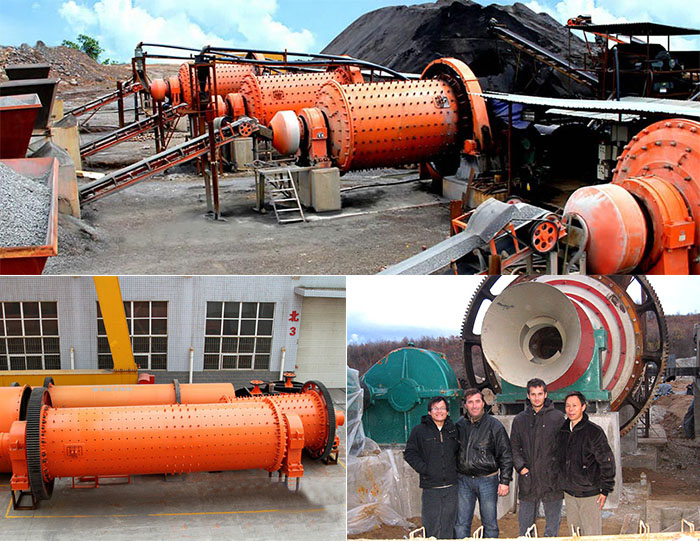

  • Delivery Site
  • Videos

Customer reviews

  • Capacity: 10TPH

  • Material: Gold Ore

Avatar Mr. Mwamba★★★★★

Tanzania Gold Ore Grinding Project

This ball mill works perfectly for small gold ore grinding. Stable running, low noise and energy use, great grinding effect, higher gold recovery. No faults in use, reliable quality meets our needs well. We’re highly satisfied!

321m agoTanzania

  • Capacity: 30TPH

  • Material: Manganese Ore

Avatar Mr. Ndlovu★★★★★

South Africa Manganese Ore Grinding Project

We chose this ball mill to process manganese ore, and it has brought us great surprises. The lining plate is wear-resistant, the operation is simple, and the maintenance is very convenient.

4m agoSouth Africa

Related Products

Technical Parameter

Model Shell rotation speed
（r/min）		 Ball load
(t)		 Feeding size
(mm)		 Discharging size
(mm)		 Capacity
(t/h)		 Motor power
(kw)		 Total weight
(t)
Ф900×1800 36-38 1.5 <20 0.075-0.89 0.65-2 18.5 5.85
Ф900×3000 36 2.7 <20 0.075-0.89 1.1-3.5 22 6.98
Ф1200×2400 36 3 <25 0.075-0.6 1.5-4.8 30 13.6
Ф1200×3000 36 3.5 <25 0.074-0.4 1.6-5 37 14.3
Ф1200×4500 32.4 5 <25 0.074-0.4 1.6-5.8 55 15.6
Ф1500×3000 29.7 7.5 <25 0.074-0.4 2-5 75 19.5
Ф1500×4500 27 11 <25 0.074-0.4 3-6 110 22
Ф1500×5700 28 12 <25 0.074-0.4 3.5-6 130 25.8
Ф1830×3000 25.4 11 <25 0.074-0.4 4-10 130 34.5
Ф1830×4500 25.4 15 <25 0.074-0.4 4.5-12 155 38
Ф1830×6400 24.1 21 <25 0.074-0.4 6.5-15 210 43
Ф1830×7000 24.1 23 <25 0.074-0.4 7.5-17 245 43.8
Ф2100×3000 23.7 15 <25 0.074-0.4 6.5-36 155 45
Ф2100×4500 23.7 24 <25 0.074-0.4 8-43 245 56
Ф2100×7000 23.7 26 <25 0.074-0.4 12-48 280 59.5
Ф2200×4500 21.5 27 <25 0.074-0.4 9-45 280 54.5
Ф2200×6500 21.7 35 <25 0.074-0.4 14-26 380 61
Ф2200×7000 21.7 35 <25 0.074-0.4 15-28 380 62.5
Ф2200×7500 21.7 35 <25 0.074-0.4 15-30 380 64.8
Ф2400×3000 21 23 <25 0.074-0.4 7-50 245 58
Ф2400×4500 21 30 <25 0.074-0.4 8.5-60 320 72
Ф2700×4000 20.7 40 <25 0.074-0.4 22-80 380 95
Ф2700×4500 20.7 48 <25 0.074-0.4 26-90 480 102
Ф3200×4500 18 65 <25 0.074-0.4 As per process conditions 630 149
Ф3600×4500 17 90 <25 0.074-0.4 As per process conditions 850 169
Ф3600×6000 17 110 <25 0.074-0.4 As per process conditions 1250 198
Ф3600×8500 18 131 <25 0.074-0.4 45.8-256 1800 260
Ф4000×5000 16.9 121 <25 0.074-0.4 45-208 1500 230
Ф4000×6000 16.9 146 <25 0.074-0.4 65-248 1600 242
Ф4000×6700 16.9 149 <25 0.074-0.4 75-252 1800 249
Ф4500×6400 15.6 172 <25 0.074-0.4 84-306 2000 280
Ф5030×6400 14.4 216 <25 0.074-0.4 98-386 2500 320
Ф5030×8300 14.4 266 <25 0.074-0.4 118-500 3300 403
Ф5500×8500 13.8 338 <25 0.074-0.4 148-615 4500 525
Model Feeding size
(mm)		 Capacity
(t/h)
Ф900×1800 <20 0.65-2
Ф900×3000 <20 1.1-3.5
Ф1200×2400 <25 1.5-4.8
Ф1200×3000 <25 1.6-5
Ф1200×4500 <25 1.6-5.8
Ф1500×3000 <25 2-5
Ф1500×4500 <25 3-6
Ф1500×5700 <25 3.5-6
Ф1830×3000 <25 4-10
Ф1830×4500 <25 4.5-12
Ф1830×6400 <25 6.5-15
Ф1830×7000 <25 7.5-17
Ф2100×3000 <25 6.5-36
Ф2100×4500 <25 8-43
Ф2100×7000 <25 12-48
Ф2200×4500 <25 9-45
Ф2200×6500 <25 14-26
Ф2200×7000 <25 15-28
Ф2200×7500 <25 15-30
Ф2400×3000 <25 7-50
Ф2400×4500 <25 8.5-60
Ф2700×4000 <25 22-80
Ф2700×4500 <25 26-90
Ф3200×4500 <25 As per process
conditions
Ф3600×4500 <25 As per process
conditions
Ф3600×6000 <25 As per process
conditions
Ф3600×8500 <25 45.8-256
Ф4000×5000 <25 45-208
Ф4000×6000 <25 65-248
Ф4000×6700 <25 75-252
Ф4500×6400 <25 84-306
Ф5030×6400 <25 98-386
Ф5030×8300 <25 118-500
Ф5500×8500 <25 148-615
Model Feeding capacity
（t/time）		 Shell rotation speed
（r/min）		 Reference motor
（kw）		 Liner material
600×700 0.05 50 2.2 Chinaware,silicon,rubber or metal（the related motor power varied as per the different liner materials and grinding materials）
800×600 0.075 42 3
900×1200 0.2 38.5 5.5
1300×1500 0.5 33 7.5
1500×1800 1.2 28.5 11
1800×2000 1.5 24 15
2600×2800 5 16.5 37
3000×3800 10 14.5 57.2
3200×4600 15 13.5 75
Model Feeding capacity
（t/time）		 Shell rotation speed
（r/min）		 Liner material
600×700 0.05 50 Chinaware,silicon,rubber or metal（the related motor power varied as per the different liner materials and grinding materials）
800×600 0.075 42
900×1200 0.2 38.5
1300×1500 0.5 33
1500×1800 1.2 28.5
1800×2000 1.5 24
2600×2800 5 16.5
3000×3800 10 14.5
3200×4600 15 13.5
Model Cylinder Effective Volume
(m³)		 Max.Ball Loading
(t)		 Speed
(r/min)		 Main Motor
(KW)
Diameter (mm) Length (mm)
MQY-1530 1500 3000.0 4.5 8 30 90
MQY-1545 1500 4500.0 6.7 12 30 132
MQY-1830 1830 3000.0 6.7 12 26.6 130
MQY-1845 1830 4500.0 10.5 19 26.8 180
MQY-2130 2100 3000.0 9.2 16 23.8 210
MQY-2136 2100 3600.0 11 20 23.8 210
MQY-2145 2100 4500.0 13.8 25 23.8 280
MQY-2230 2200 3000.0 10 18.5 21.3 210
MQY-2245 2200 4500.0 15.2 28 21.3 280
MQY-2430 2400 3000.0 12 22 21.3 245
MQY-2436 2400 3600.0 14 26 21.3 280
MQY-2445 2400 4500.0 17.8 30 21.6 320
MQY-2460 2400 6000.0 24 44 21.7 480
MQY-2736 2700 3600.0 18 33 20.7 400
MQY-2740 2700 4000.0 20.6 38 20.7 400
MQY-2745 2700 4500.0 23.2 43 20.7 480
MQY-2750 2700 5000.0 25.8 48 20.6 500
MQY-2760 2700 6000.0 31 57 20.6 630
MQY-3040 3000 4000.0 25.7 47 19 500
MQY-3064 3000 6400.0 40.2 74 19 800
MQY-3245 3200 4500.0 32 59 18.2 630
MQY-3254 3200 5400.0 38 73 18.2 800
MQY-3270 3200 7000.0 50.6 93 18.2 1250
MQY-3645 3600 4500.0 40.8 75 18 1000
MQY-3650 3600 5000.0 46 86 18 1250
MQY-3660 3600 6000.0 54 102 18 1250
MQY-3685 3600 8500.0 79 131 18 1800
MQY-4060 4000 6000.0 70 126 16.9 1500
MQY-4067 4000 6700.0 78 136 16.9 1600
MQY-4361 4270 6100.0 80 144 15.7 1850
MQY-4564 4500 6400.0 95 172 15.6 2000
MQY-5064 5030 6400.0 120 216 14.4 2600
MQY-5083 5030 8300.0 152 266 14.4 3300
MQY-5585 5500 8500.0 187 338 13.8 4500

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Effective Volume
(m³)		 Max.Ball Loading
(t)		 Main Motor
(KW)
MQY-1530 4.5 8 90
MQY-1545 6.7 12 132
MQY-1830 6.7 12 130
MQY-1845 10.5 19 180
MQY-2130 9.2 16 210
MQY-2136 11 20 210
MQY-2145 13.8 25 280
MQY-2230 10 18.5 210
MQY-2245 15.2 28 280
MQY-2430 12 22 245
MQY-2436 14 26 280
MQY-2445 17.8 30 320
MQY-2460 24 44 480
MQY-2736 18 33 400
MQY-2740 20.6 38 400
MQY-2745 23.2 43 480
MQY-2750 25.8 48 500
MQY-2760 31 57 630
MQY-3040 25.7 47 500
MQY-3064 40.2 74 800
MQY-3245 32 59 630
MQY-3254 38 73 800
MQY-3270 50.6 93 1250
MQY-3645 40.8 75 1000
MQY-3650 46 86 1250
MQY-3660 54 102 1250
MQY-3685 79 131 1800
MQY-4060 70 126 1500
MQY-4067 78 136 1600
MQY-4361 80 144 1850
MQY-4564 95 172 2000
MQY-5064 120 216 2600
MQY-5083 152 266 3300
MQY-5585 187 338 4500

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Cylinder Effective Volume
(m³)		 Max.Ball Loading
(t)		 Speed
(r/min)		 Main Motor
(KW)
Diameter (mm) Length (mm)
MQS-1530 1500 3000 4.5 9 30 110
MQS-1545 1500 4500 6.7 14 29.6 155
MQS-1830 1830 3000 6.7 14 26.6 155
MQS-1845 1830 4500 10.5 20 26.8 210
MQS-2130 2100 3000 8.8 18 23.8 210
MQS-2136 2100 3600 11 22.5 23.8 245
MQS-2145 2100 4500 13.8 28 23.8 280
MQS-2230 2200 3000 10 20 21.3 210
MQS-2245 2200 4500 15.2 30.5 21.4 320
MQS-2430 2400 3000 12 25 21.3 280
MQS-2436 2400 3600 14 29 21.4 320
MQS-2445 2400 4500 17.8 37 21.4 380
MQS-2470 2400 7000 28 58 21.5 480
MQS-2736 2700 3600 18 38 20.7 400
MQS-2740 2700 4000 20.6 43 20.7 450
MQS-2745 2700 4500 23.2 48 20.7 480
MQS-2750 2700 5000 25.8 54 20.6 560~630
MQS-2760 2700 6000 31 65 20.6 630~710
MQS-3040 3000 4000 25.7 54 19 560~630
MQS-3064 3000 6400 40.2 84 19 1000
MQS-3230 3200 3000 21.8 46 18.2 500
MQS-3236 3200 3600 26.2 56 18.2 630
MQS-3245 3200 4500 32 65 18.2 800
MQS-3254 3200 5400 38 80 18.2 1000
MQS-3640 3600 4000 36 75 18 1000
MQS-3645 3600 4500 40.8 88 18 1250
MQS-3650 3600 5000 46 96 18 1400
MQS-3660 3600 6000 54 117 18 1400~1600
MQS-4050 4000 5000 58 121 16.9 1500
MQS-4060 4000 6000 70 146 16.9 1800
MQS-4560 4500 6000 87 182 15.6 2300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Effective Volume
(m³)		 Max.Ball Loading
(t)		 Speed
(r/min)
MQS-1530 4.5 9 30
MQS-1545 6.7 14 29.6
MQS-1830 6.7 14 26.6
MQS-1845 10.5 20 26.8
MQS-2130 8.8 18 23.8
MQS-2136 11 22.5 23.8
MQS-2145 13.8 28 23.8
MQS-2230 10 20 21.3
MQS-2245 15.2 30.5 21.4
MQS-2430 12 25 21.3
MQS-2436 14 29 21.4
MQS-2445 17.8 37 21.4
MQS-2470 28 58 21.5
MQS-2736 18 38 20.7
MQS-2740 20.6 43 20.7
MQS-2745 23.2 48 20.7
MQS-2750 25.8 54 20.6
MQS-2760 31 65 20.6
MQS-3040 25.7 54 19
MQS-3064 40.2 84 19
MQS-3230 21.8 46 18.2
MQS-3236 26.2 56 18.2
MQS-3245 32 65 18.2
MQS-3254 38 80 18.2
MQS-3640 36 75 18
MQS-3645 40.8 88 18
MQS-3650 46 96 18
MQS-3660 54 117 18
MQS-4050 58 121 16.9
MQS-4060 70 146 16.9
MQS-4560 87 182 15.6

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Cylinder Effective Volume
(m³)		 Max.Ball Loading
(t)		 Speed
(r/min)		 Main Motor
(KW)
Diameter (mm) Length (mm)
MQG-1557 1500 5700 8.5 12 28 130
MQG-1564 1500 6400 9.6 13 28 155
MQG-1864 1830 6400 15 20 23.8 210
MQG-1870 1830 7000 16 22 23.8 245
MQG-1880 1830 8000 18.8 26 23.8 280
MQG-2170 2100 7000 22 30 24.1 320
MQG-2175 2100 7500 23.5 33 24.1 355
MQG-2265 2200 6500 22 35 21.7 380
MQG-2270 2200 7000 23.8 38 21.7 380
MQG-2275 2200 7500 25.5 42 21.7 450
MQG-2470 2400 7000 28 52 21.7 570
MQG-2480 2400 8000 32 60 21.5 630
MQG-2750 2700 5000 25.8 54 20.7 630
MQG-2760 2700 6000 31 65 20.6 710

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Effective Volume
(m³)		 Max.Ball Loading
(t)		 Speed
(r/min)
MQG-1557 8.5 12 28
MQG-1564 9.6 13 28
MQG-1864 15 20 23.8
MQG-1870 16 22 23.8
MQG-1880 18.8 26 23.8
MQG-2170 22 30 24.1
MQG-2175 23.5 33 24.1
MQG-2265 22 35 21.7
MQG-2270 23.8 38 21.7
MQG-2275 25.5 42 21.7
MQG-2470 28 52 21.7
MQG-2480 32 60 21.5
MQG-2750 25.8 54 20.7
MQG-2760 31 65 20.6

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Cylinder Effective Volume
(m³)		 Speed
(r/min)		 Main Motor
(KW)
Diameter (mm) Length (mm)
MZ-2410 2400 1000 4.5 22 55
MZ-3212 3200 1200 9.2 18.2 160
MZ-4014 4000 1400 16.6 17.6 245
MZ-5518 5500 1800 34.6 15 800
MZ-6433 6400 3300 107 12.8 2000
MZ-6724 6700 2400 80.5 12.5 2000
MZ-7525 7500 2500 107 11.4 2500

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Effective Volume
(m³)		 Speed
(r/min)		 Main Motor
(KW)
MZ-2410 4.5 22 55
MZ-3212 9.2 18.2 160
MZ-4014 16.6 17.6 245
MZ-5518 34.6 15 800
MZ-6433 107 12.8 2000
MZ-6724 80.5 12.5 2000
MZ-7525 107 11.4 2500

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Cylinder Effective Volume
(m³)		 Max.Rod Loading
(t)		 Speed
(r/min)		 Main Motor
(KW)
Diameter (mm) Length (mm)
MBS(Y)-1530 1500 3000 4.5 8 27 90
MBS(Y)-1532 1500 3200 4.8 8.5 27 90
MBS(Y)-1830 1830 3000 6.7 14 23.7 155
MBS(Y)-1832 1830 3200 7.2 15 23.7 155~180
MBS(Y)-2130 2100 3000 8.8 18 21.4 210
MBS(Y)-2132 2100 3200 9.6 20 21.4 210
MBS(Y)-2136 2100 3600 11 23 21.4 245
MBS(Y)-2230 2200 3000 10 21 19 245
MBS(Y)-2236 2200 3600 12 25 19 245
MBS(Y)-2430 2400 3000 12 25 19 280
MBS(Y)-2436 2400 3600 14 29 19 320
MBS(Y)-2730 2700 3000 15.5 32.5 18.4 355
MBS(Y)-2736 2700 3600 18 38 18.4 400
MBS(Y)-2740 2700 4000 20.6 43 18.4 480
MBS(Y)-3040 3000 4000 25.7 54 17 630
MBS(Y)-3230 3200 3000 21 44 16.4 500
MBS(Y)-3245 3200 4500 32 67 16.4 800
MBS(Y)-3642 3600 4200 38 79.5 15.8 1000
MBS(Y)-3645 3600 4500 40.8 85 15.8 1000~1250
MBS(Y)-3650 3600 5000 46 96 15.8 1250
MBS(Y)-3660 3600 6000 54 113 15.8 1400

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Effective Volume
(m³)		 Max.Rod Loading
(t)		 Speed
(r/min)
MBS(Y)-1530 4.5 8 27
MBS(Y)-1532 4.8 8.5 27
MBS(Y)-1830 6.7 14 23.7
MBS(Y)-1832 7.2 15 23.7
MBS(Y)-2130 8.8 18 21.4
MBS(Y)-2132 9.6 20 21.4
MBS(Y)-2136 11 23 21.4
MBS(Y)-2230 10 21 19
MBS(Y)-2236 12 25 19
MBS(Y)-2430 12 25 19
MBS(Y)-2436 14 29 19
MBS(Y)-2730 15.5 32.5 18.4
MBS(Y)-2736 18 38 18.4
MBS(Y)-2740 20.6 43 18.4
MBS(Y)-3040 25.7 54 17
MBS(Y)-3230 21 44 16.4
MBS(Y)-3245 32 67 16.4
MBS(Y)-3642 38 79.5 15.8
MBS(Y)-3645 40.8 85 15.8
MBS(Y)-3650 46 96 15.8
MBS(Y)-3660 54 113 15.8

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Need some help?

Talk to our experts about how we can help you today

Get in touch

Messages welcome

Helping us to understand your needs will help us to ensure we're getting you the best advice.

FTM will use your personal data to respond to your enquiry. Your personal data will be deleted when this purpose is fulfilled or if you actively opt-out in beforehand.

Fote Heavy Machinery With a 40 year history

Copyright: China Henan Fote Mining Machinery Co., Ltd.All rights reserved Privacy Policy
