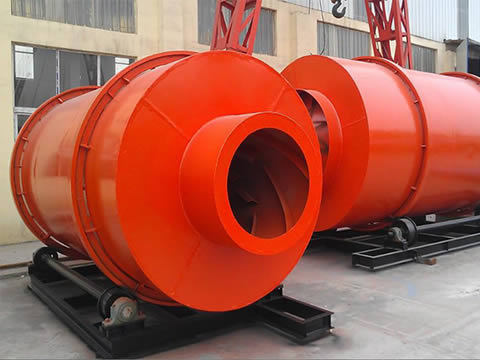

Binocular dryer machine

Binocular dryer machine

  • Outer Cylinder Diameter: 2.5 - 3.6 m
  • Production Capacity:25 - 30 t/h
  • Application Range: Industries of mining, ore beneficiation, construction materials, chemical engineering and metallurgy.
  • Processible Materials: Coal, iron powder, yellow sand, molding sand, slag and coal cinder.

    Get Price Now Leave Message

what can i do for you

40 Years history production base and exporter

Contact Us ( sales@sinofote.com )

The binocular dryer machine, also the binocular drying equipment or binocular drying machine, is used to dry particle materials with certain humidity and particle size including the yellow sand for the dry-mixed mortar industry, the casting sand for the casting industry, blast furnace slag and small particle clay for the construction cement industry, the small size materials that won’t change chemical properties and not be afraid of high temperature and smoke for the chemical engineering industry. Materials after dried can hold the water content of 1-0.5% and the material particle reaches smaller than 30mm.

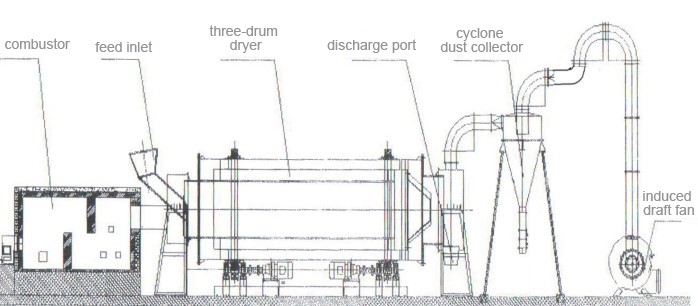

Binocular dryer machine

Compared with the three-cylinder dryer, it’s more convenient for users to replace the lifting board of the binocular dryer machine. The heat exchanging air in the binocular dryer should not excess 750 degree; if the high temperature drying process is needed, the entrance internal cylinder and the lifting board of the binocular dryer should be made of heat resisting steel sheet.

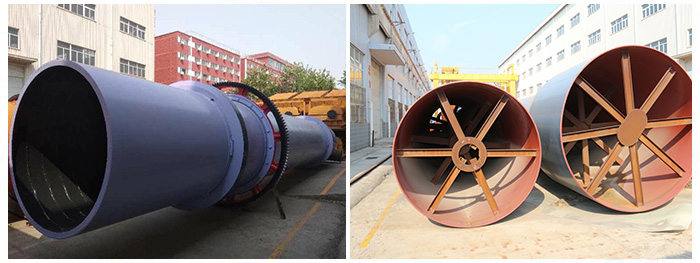

Binocular dryer machine

Technical Parameters

Item/Unit/Model Φ2.5×7m Φ2.7×7m Φ3.0×7.0m Φ3.2×7.0m Φ3.6×8m
Diameter of outer cylinder(m) 2.5 2.7 3.0 3.2 3.6
Length of outer cylinder(m) 7 7 7.0 7.0 8
Cylinder volume( m³ ) 16.63 16.63 52.678 52.678 81.38
Rotating speed of cylinder(rpm) 4-10 4-10 4 -10 4 -10 4 -10
Initial moisture of slag(%) 10-12 10-12 10-12 10-12 10-12
Final moisture of slag(%) 1 1 1 1 1
Initial moisture of yellow ground(%) 8-10 8-10 8-10 8-10 8-10
Final moisture of yellow ground (%) 0.5-1 0.5-1 0.5-1 0.5-1 0.5-1
Highest intake air temperature(℃) 700-750℃ 700-750℃ 700-750℃ 700-750℃ 700-750℃
Production capacity(T/h) Yellow sand: 25-30
Slag: 20-25
Yellow sand: 30-35
Slag: 25-30
Yellow sand: 35-40
Slag: 30-35
Yellow sand: 45-50
Slag: 35-40
Yellow sand: 65-70
Slag: 60-65
Motor type Y2-132m-4E Y2-132m-4E Y2-160m-4 Y2-160m-4 Y2-160m-4
Motor power(kw) 7.5×2 11×2 7.5×4 7.5×4 15×4
Reducer type XWD7-23-11W XWD7-23-11W XWD6-23-7.5KW XWD6-23-7.5KW XWD8-23-15KW
Velocity ratio of reducer 29 29 29 29 29
Item/Unit/Model Cylinder volume( m³ ) Production capacity(T/h)
Φ2.5×7m 16.63 Yellow sand: 25-30
Slag: 20-25
Φ2.7×7m 16.63 Yellow sand: 30-35
Slag: 25-30
Φ3.0×7.0m 52.678 Yellow sand: 35-40
Slag: 30-35
Φ3.2×7.0m 52.678 Yellow sand: 45-50
Slag: 35-40
Φ3.6×8m 81.38 Yellow sand: 65-70
Slag: 60-65
