Coal briquette press machine

Coal briquette press machine

Theoretical yield:2-28(t/h) Diameter of Roller: 500-1000mm Applied materials:Pulverized coal, coking coal, iron powder, aluminum powder, scrap iron, graphite, clay, kaolin, desulfurization gypsum, cryolite, chemical fertilizer, limestone, carbon powder, activated carbon, coke powder, tailings, slag, sludge, etc

Similar Products

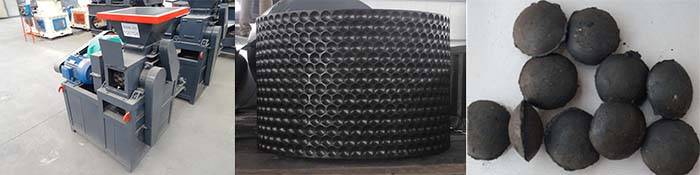

The finished products and applications of coal briquette press machine

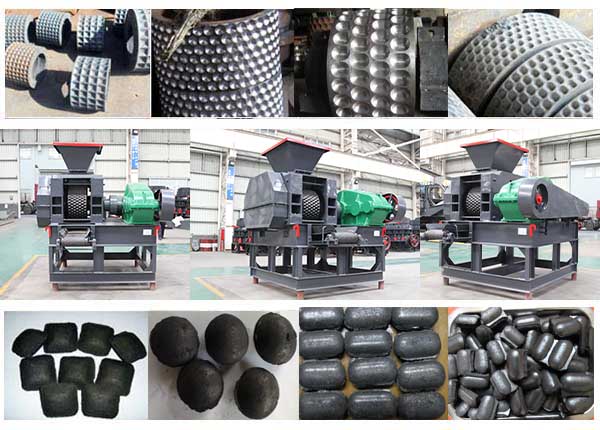

Coal briquette press machine Products and Applications

The coal briquette press machine is mainly used to press powder materials that are hard to be shaped. The coal briquetting machine has the features of strong pressing pressure, adjustable revolution and screw conveying device. This coal briquette machine can save energy and protect the environment and the final products are convenient to be transported, thus improving the utilization of the waste materials and have excellent economic and social benefits. In addition, the power consumption of this coal briquetting machine is low.

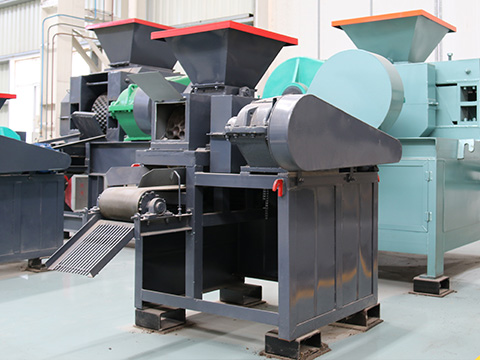

Coal Briquette Press Machine

Fote coal briquetting machine is casted with 65 manganese, and with special heat treatment, its hardness can reach over 58°. The roller skin adopts composite assembly, so that it can be changed when abraded. Fote coal briquette machine or coal briquette press machine has a shock absorber which can better protect the equipment from the impact of hard materials. Fote coal briquetting machine is designed with ball bowl adjustable device to make sure the ball bowls of the two rollers are always in the adjustable range.

Briquetting Machine

Henan Fote Heavy Machinery Co., ltd. is a large-scale and professional manufacturer of mining machinery and general machinery, with two professional industrial workshops and more than 300 machine machining, welding and assembly equipment with large and medium size. Fote Machinery has won wide praise at home and abroad by the exquisite techniques and advanced technology, and it’s also become the large mining machinery export base in China.

Briquetting Machine

Leave us a message for more product details and price list?

Technical Parameters

Model Roll diamter
(mm)
Roll width
(mm)
Total pressure
(t)
Main motor power
(kw)
Output
(t)
Weight
(t)
GY520-150 520 196 150 55 2.2-3.5 13
GY650-220 650 200 220 110 4-6.5 19.2
GY750-300 750 280 300 185 6-8.5 34
GY1000-350 1000 440 350 250 10-15 50.8
GY1000-450 1000 504 450 280 14-17 58.5
GY1000-500 1000 504 500 315 15-20 58.5
GYS1000-500 1000 600 500 280 17-21 56.5
GY1000-540 1000 900 540 185Kw×2 30-35 60
GY1200-800 1200 900 800 280Kw×2 40 110
GY1400-1000 1400 1000 1000 400Kw×2 50 156
