Crawler type mobile cone crusher|Mobile cone crusher|Cone mobile crusher

The crawler type mobile cone crusher, as a type of mobile crusher or crushing station and with more advantages than the past ordinary cone crusher, is mainly used in the fine crushing field.

According to different stone properties and product functions, we use the cone mobile crusher in the sand making production to take the place of the impact crusher to produce sand materials with higher hardness and finer granularity.

Users can change the crushing cavity patterns to meet various demands and adapt to a wide range of application fields.

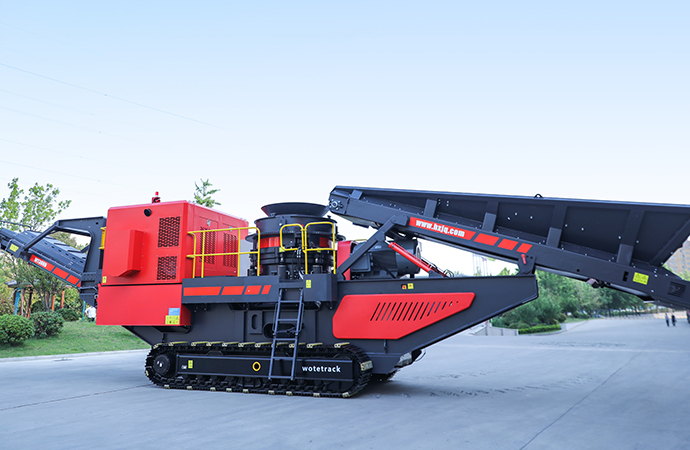

Crawler type mobile cone crusher

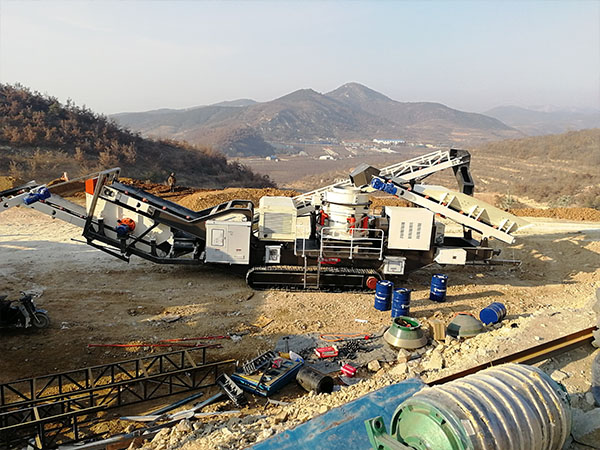

When the cone mobile crusher works, the crawler type mobile cone crusher can break the raw materials to the ideal particles which are later screened by the circular vibrating screen to different sand materials. Then these finished products are transported by the belt conveyor from the material stacking or to the final destination. As the crawler type mobile cone crusher adopts the latest high efficient cone crusher, it can realize the one step crushing effect and produce finished products with the perfect granularity.

Technical Parameters

Model		WT160SC	WT250SC	WT300HPM	WT400HPM
Dimensions of Transmission Devices	Length	16800mm	19000mm	19000mm	19500mm
	Width	3500mm	3600mm	3900mm	3900mm
	Height	3700mm	3800mm	3800mm	3800mm
	Weight	50t	60t	55t	65t
Belt Conveyor	Hopper Volume	3m³	3m³	3m³	3m³
	Loading Height	2600m	2600m	2600m	2800m
	Loading Width	1900mm	1900mm	1900mm	1900mm
	Dimensions (Width×Length)	1000×6300mm	1000×6300mm	1000×6300mm	1200×6500mm
Crusher	Model	SC160	SC250	HP300	HP400
	Inlet Dimensions	75-360mm	75-450mm	60-200mm	68-280mm
	Max.Feeding Size	360mm	450mm	200mm	280mm
	Min. Discharging Size	8-25mm	8-35mm	8-45mm	8-51mm
Main Belt Conveyor	Dimensions (Width×Length)	1000×9000mm	1000×10000mm	1000×10000mm	1000×11000mm
Main Belt Conveyor	Dumping Height	3100mm	3490mm	3490mm	3690mm
Secondary Screen	Dumping Height	4200mm	4200mm	4400mm	4400mm
	Model	FT1536	FT1536	FT1536	FT1536
	Sieve Dimensions	1500×3600mm	1500×3600mm	1500×3600mm	1500×3600mm
Belt Conveyors at the Bottom	Dimensions (Width×Length)	1000×5600mm	1000×5600mm	1000×5600mm	1000×6500mm
Belt Conveyors at the Bottom	Dumping Height	3020mm	3020mm	3020mm	3300mm
Belt Conveyors to the Sieve	Dimensions (Width×Length)	650×2100mm	650×2100mm	650×2100mm	650×2100mm
Belt Conveyors to the Sieve	Dumping Height	1370mm	1370mm	1370mm	1370mm
Belt Conveyors for Discharging Material	Dimensions (Width×Length)	650×10000mm	650×10000mm	650×11000mm	650×11000mm
Belt Conveyors for Discharging Material	Dumping Height	4200mm	4200mm	4400mm	4400mm
Diesel Engine	Power	96kw	132kw	106kw	132kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins	Carter Perkins	Carter Perkins
The Main Machine	Power	207.12kw	297.12kw	267.12kw	362.12kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)	Wired/Wireless (optional)	Wired/Wireless (optional)

Model WT160SC and WT250SC

Model		WT160SC	WT250SC
Dimensions of Transmission Devices	Length	16800mm	19500mm
	Width	3500mm	3600mm
	Height	3700mm	3800mm
	Weight	50t	60t
Belt Conveyor	Hopper Volume	3m³	3m³
	Loading Height	2600m	2600m
	Loading Width	1900mm	1900mm
	Dimensions (Width×Length)	1000×6300mm	1000×6300mm
Crusher	Model	SC160	HP400
	Inlet Dimensions	75-360mm	75-450mm
	Max.Feeding Size	360mm	450mm
	Min. Discharging Size	8-25mm	8-35mm
Main Belt Conveyor	Dimensions (Width×Length)	1000×9000mm	1000×11000mm
Main Belt Conveyor	Dumping Height	3100mm	3490mm
Secondary Screen	Dumping Height	4200mm	4400mm
	Model	FT1536	FT1536
	Sieve Dimensions	1500×3600mm	1500×3600mm
Belt Conveyors at the Bottom	Dimensions (Width×Length)	1000×5600mm	1000×6500mm
Belt Conveyors at the Bottom	Dumping Height	3020mm	3020mm
Belt Conveyors to the Sieve	Dimensions (Width×Length)	650×2100mm	650×2100mm
Belt Conveyors to the Sieve	Dumping Height	1370mm	1370mm
Belt Conveyors for Discharging Material	Dimensions (Width×Length)	650×10000mm	650×10000mm
Belt Conveyors for Discharging Material	Dumping Height	4200mm	4200mm
Diesel Engine	Power	96kw	132kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins
The Main Machine	Power	207.12kw	362.12kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)

Model WT300HPM and WT400HPM

Model		WT300HPM	WT400HPM
Dimensions of Transmission Devices	Length	19000mm	19500mm
	Width	3900mm	3900mm
	Height	3800mm	3800mm
	Weight	55t	65t
Belt Conveyor	Hopper Volume	3m³	3m³
	Loading Height	2600m	2800m
	Loading Width	1900mm	1900mm
	Dimensions (Width×Length)	1000×6300mm	1200×6500mm
Crusher	Model	HP300	HP400
	Inlet Dimensions	60-200mm	68-280mm
	Max.Feeding Size	200mm	280mm
	Min. Discharging Size	8-45mm	8-51mm
Main Belt Conveyor	Dimensions (Width×Length)	1000×10000mm	1000×11000mm
Main Belt Conveyor	Dumping Height	3490mm	3690mm
Secondary Screen	Dumping Height	4400mm	4400mm
	Model	FT1536	FT1536
	Sieve Dimensions	1500×3600mm	1500×3600mm
Belt Conveyors at the Bottom	Dimensions (Width×Length)	1000×5600mm	1000×6500mm
Belt Conveyors at the Bottom	Dumping Height	3020mm	3300mm
Belt Conveyors to the Sieve	Dimensions (Width×Length)	650×2100mm	650×2100mm
Belt Conveyors to the Sieve	Dumping Height	1370mm	1370mm
Belt Conveyors for Discharging Material	Dimensions (Width×Length)	650×11000mm	650×11000mm
Belt Conveyors for Discharging Material	Dumping Height	4400mm	4400mm
Diesel Engine	Power	106kw	132kw
Diesel Engine	Manufacturer	Carter Perkins	Carter Perkins
The Main Machine	Power	267.12kw	362.12kw
The Main Machine	Ways of Controlling	Wired/Wireless (optional)	Wired/Wireless (optional)
