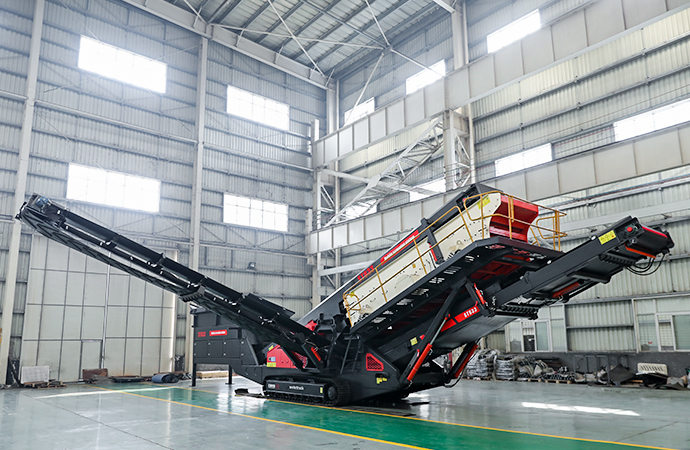

Crawler type mobile sieving machine

Crawler type mobile sieving machine

Feeding size:480-850mm Processing capacity:45-500t/h Applied material:river pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, etc.Application area:mining, coal, garbage and construction waste recycling, earthwork, urban infrastructure, roads or construction sites and other venues operations.

Similar Products

Bried introduction:

The flexibility of the mobile screening machine or mobile screening plant can meet customers’ demand completely. At present, the crawler type mobile sieving machine has been widely applied in the projects of open-air coal exploitation, road and bridge construction, urban construction and mineral exploitation because of its advantages such as high crushing reduction ratio, high crushing efficiency, reliable performance, strong adaptability and flexibility.

The multi-function processing feature makes the crawler type mobile sieving machine be widely used:

1. In the fields of mining, coal mine, waste and construction waste recycling, cubic earth and stone project, the urban infrastructure construction, road construction and other construction sites.

2. To handle the surface earth and other materials, to separate the sticky concrete aggregate, to screen materials after the crushing process and to take part in the construction, explosion and stone exploitation industries.

The crawler type mobile sieving machine or the crawler type mobile screening plant has two processing modes of “crushing to screening” or "screening to crushing” according to the actual crushing requirement. The mobile screening and crushing station also owns two types of screening systems: the coarse and fine crushing and screening process; coarse, medium and fine crushing and screening process.

Technical Parameters

Classification
of items
A type Dual power crawler type mobile
feeding and screening plant
B type Dual power crawler type mobile
 feeding and screening plant
models Y3S154GL Y3S184GL Y3S186GL Y3S154BL Y3S184BL Y3S186BL
Vibrating
screen(mm)
3YZS1548 3YZS1848 3YZS1860 3YZS1548 3YZS1848 3YZS1860
Main belt
conveyor
Belt conveyor feeding Sorting and feeding
Belt
conveyor
Feeding
belt
conveyor
B1000×4M B1000×4M B1200×4.5M B1200×3M B1200×3M B1200×3M
Main belt
conveyor
B800×5M B1000×5M B1000×5M B1000×8M B1200×8M B1200×9M
Under
vibrating
 screen
B800×4.5M B1000×4.5M B1000×5.5M B800×7M B1000×7M B1000×8M
Left side-opening
 belt conveyor
B500×7.3M B500×7.3M B650×7.3M B500×7.3M B500×7.3M B650×7.3M
Right side-opening
belt conveyor1
B500×7.3M B500×7.3M B650×7.3M B500×7.3M B500×7.3M B650×7.3M
Right side-opening
belt conveyor2
B500×7.3M B500×7.3M B500×7.3M B500×7.3M B500×7.3M B650×7.3M
Genset(kw) 120 120 120 120 120 120
Transportation
length(mm)
12300 12300 13500 12000 12000 13200
Transportation
width(mm)
2700 2920 2920 2900 3150 3150
Transportation
height(mm)
3900 3900 3900 3600 3600 3700
Transportation
Weight(t)
28 30 34 28 32 35
