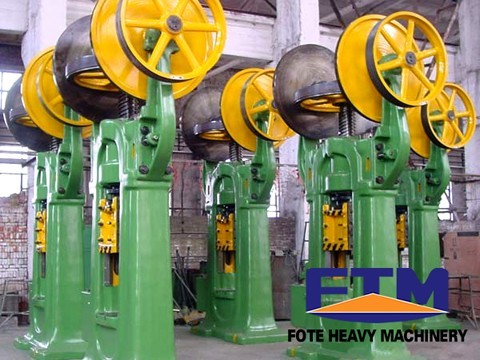

Double-disk friction screw press machine is widely used in the machinery manufacturing industry, can be used to complete the die forging, horizontal forging, bending, calibration, pressure-sizing and other mechanical work. Double-disk friction screw press has greater versatility in the application, and has simple and affordable structure, easy to install and control and other benefits, so double disk friction screw press machine is widely used in press shop, forging and die forged workshop in building, auto, tractor, aviation and other industries, as well as blanking of refractory matter.
40 Years history production base and exporter
Pre-sale service
24 hours online
Free technical support and solutions
Factory visit anytime, free pick up
Sales service
Commit to delivery fast
Provide On-site installation service
Free training of product operation
After-sales service
365 days after-sales online
Solve customer feedback problems timely.
Help customers optimize and upgrade equipment
Contact Us ( sales@sinofote.com )
Double-disk friction screw press machine is widely used in the machinery manufacturing industry, can be used to complete the die forging, horizontal forging, bending, calibration, pressure-sizing and other mechanical work. Double-disk friction screw press has greater versatility in the application, and has simple and affordable structure, easy to install and control and other benefits, so double disk friction screw press machine is widely used in press shop, forging and die forged workshop in building, auto, tractor, aviation and other industries, as well as blanking of refractory matter.
| Model | Nomal force kn |
Max. force kn |
Slide stroke (mm) |
Number of strokes (min) |
Min. enclosed height (mm) |
Height of base plate (mm) |
Working table-board (mm) |
Back surface of Sliding block (mm) |
Max. ejector force kn |
Ejecting stroke (mm) |
Dimension (mm) |
Main motor power (kw) | Quality (kg) |
| J54-630 | 6300 | 10000 | 600 | 11 | 650 | 180 | 920×820 | 760×700 | 10 | 200 | 3800×5962 ×6060 | 55 | 51650 |
| J54-1000c | 10000 | 16000 | 700 | 10 | 700 | 200 | 1200×1000 | 1190×800 | 10 | 200 | 4700×6640 ×7650 | 90 | 88900 |
| J54-1600C | 16000 | 25000 | 700 | 10 | 750 | 200 | 1250×1100 | 1000×900 | 10 | 200 | 4500×5742 ×8090 | 132 | 103825 |
| J54-1600D | 16000 | 25000 | 700 | 10 | 750 | 200 | 1250×1100 | 1000×900 | 10 | 200 | 4500×5742 ×8090 | 2×75 | 103825 |
| J54-2500C | 25000 | 40000 | 800 | 9 | 980 | 300 | 1560×1200 | 1280×1060 | 10 | 200 | 1860×6280 ×7715 | 220 | 220000 |
| J54-3150 | 31500 | 50000 | 500 | 9 | 1100 | 300 | 2000×1300 | 1900×1120 | 10 | 200 | 7000×5400 ×10220 | 2×160 | 350000 |
Through long-term arduous technology research and international communication, our product quality has been in line with international level, winning a world-wide acclaim and honor, and our products are exported to ninety countries and regions like Tanzania, Nigeria, South Africa, Kenya, Turkey, Saudi Arabia, Philippines, Indonesia, Malaysia, Vietnam, Mexico, Brazil, Russia, Uzbekistan, Australia, etc.
