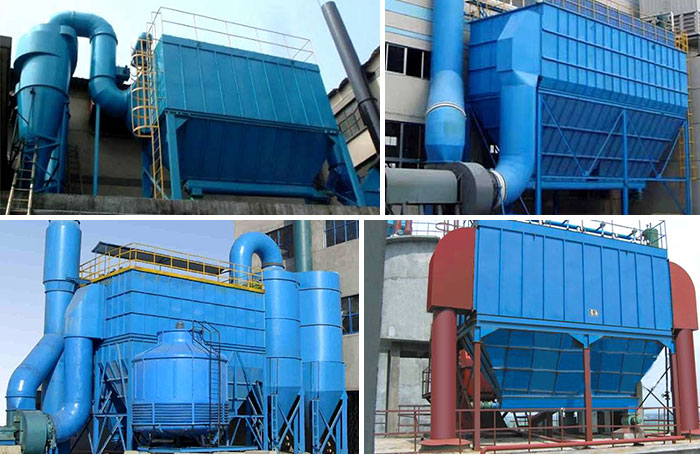

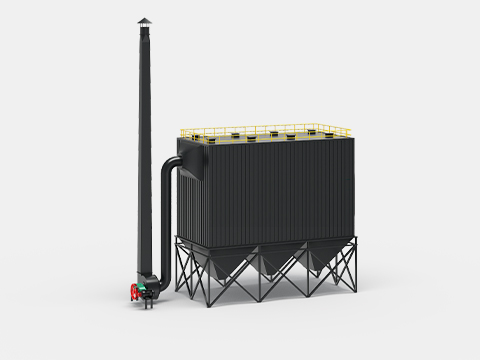

In general, we call the equipment that can separate the dust from the smoke the dust collector or the dust removal machine. The dust collector’s properties are mainly determined by the disposable gas amount, the resistance loss of the air when it passes the dust collector and the dust removal efficiency. Additionally, factors like the price, operation and maintenance expense, service life and the management and operation difficulty will also influence the dust collector’s performance. The dust collector is a common facility used in the boiler and other industrial production lines.
40 Years history production base and exporter
Pre-sale service
24 hours online
Free technical support and solutions
Factory visit anytime, free pick up
Sales service
Commit to delivery fast
Provide On-site installation service
Free training of product operation
After-sales service
365 days after-sales online
Solve customer feedback problems timely.
Help customers optimize and upgrade equipment
Contact Us ( sales@sinofote.com )
The dust air enters the filtering chamber via the ash bucket and the coarse particles fall into the ash bucket or ash bin. The dust air is filtered by the filter bag and the dust is retained on the surface of the filter bag. The filtered air flows to the clean air chamber through the bag and a great amount of air is discharged from the draught fan. When the dust on the surface of the filter bag accumulates and the device resistance rises to the set value, the time relay outputs signal and the program control starts to work. When we open the pulse valve in turns, we use the compressed air to blow and remove ash towards the filter bag via the nozzle. After the filter bag expands suddenly, the dust attaching to the filter bag surface is separated to the ash bucket in the action of the counterblast. The dust is discharged from the cinder valve and the dust collector goes back to normal.
| Model | Filtering area （m²） |
Air volume （m³/h） |
Fan model | Fan motor | Number of filter bag | model of matched german raymond mill |
Note |
| DMC24 | 18 | 1080~2160 | 4-72-3.2A | Y90L-2-1.5kw | 24 | ||
| DMC36 | 27 | 1620~3240 | 4-72-3.6A | Y100L-2-3kw | 36 | HGM88 HGM95 | |
| DMC48 | 36 | 2160~4320 | 4-68-4A | Y112M-2-4kw | 48 | HGM100 | |
| DMC64 | 48 | 2880~5760 | 4-68-4A | Y112M-2-4kw | 64 | HGM130 HGM 120 | |
| DMC80 | 60 | 3600~7200 | 4-72-4A | Y132S1-2-5.5kw | 80 | ||
| DMC96 | 72 | 4320~8640 | 4-72-4.5A | Y132S2-2-7.5kw | 96 | HGM160 HGM175 | |
| DMC112 | 84 | 5040~10800 | 4-72-4.5A | Y132S2-2-7.5kw | 112 | HGM190 | |
| DMC128 | 96 | 5760~11520 | 4-72-4.5A | Y132S2-2-7.5kw | 128 | Selecting Based on Air Volume. More Dust, Lower Filter Wind Speed. |
|
| 8640~14400 | 4-72-5A | Y160M2-2-15kw | 128 | ||||
| DMC150 | 112.5 | 6750~13500 | 4-72-5A | Y160M2-2-15kw | 150 | ||
| 10000~20000 | 4-68-6.3C | Y180M2-2-22kw | 150 | ||||
| DMC180 | 135 | 12000~24000 | 4-72-8C | Y200L-2-30kw | 180 | Multipe Dust Collection & Location Timing. A Settling Room is a Must. |
|
| DMC220 | 165 | 15000~34000 | 7-72-8C | Y200L2-2-37kw | 220 |
| Model | Filtering area （m²） |
Air volume （m³/h） |
| DMC24 | 18 | 1080~2160 |
| DMC36 | 27 | 1620~3240 |
| DMC48 | 36 | 2160~4320 |
| DMC64 | 48 | 2880~5760 |
| DMC80 | 60 | 3600~7200 |
| DMC96 | 72 | 4320~8640 |
| DMC112 | 84 | 5040~10800 |
| DMC128 | 96 | 5760~11520 |
| 8640~14400 | ||
| DMC150 | 112.5 | 6750~13500 |
| 10000~20000 | ||
| DMC180 | 135 | 12000~24000 |
| DMC220 | 165 | 15000~34000 |
Through long-term arduous technology research and international communication, our product quality has been in line with international level, winning a world-wide acclaim and honor, and our products are exported to ninety countries and regions like Tanzania, Nigeria, South Africa, Kenya, Turkey, Saudi Arabia, Philippines, Indonesia, Malaysia, Vietnam, Mexico, Brazil, Russia, Uzbekistan, Australia, etc.
