Flotation cell

Flotation cell

  • Processing ability:0.2-16m³/min
  • Impeller rotation speed: 191-400r/min
  • Weight:468-4486kg
  • Applied materials:non-ferrous metals, ferrous metals, precious metals, non-metallic mineral, chemical raw materials, etc

    Get Price Now Leave Message

what can i do for you

40 Years history production base and exporter

Contact Us ( sales@sinofote.com )

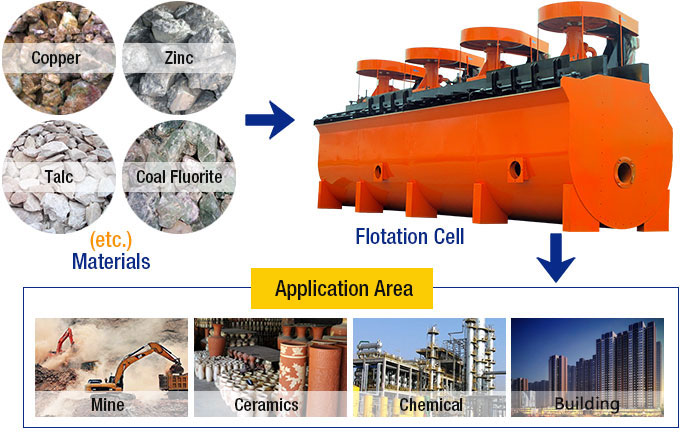

Application and advantages of flotation cell

The flotation cell or flotation machine is main equipment in flotation plant applied not only to separate and grade non-ferrous metals like copper, zinc, lead, nickel and gold, but also to make rough and fine separation of the ferrous metals. Flotation cells and flotation machine made by Fote, the Chinese famous flotation-cell manufacturer, have the following advantages: high air absorption rate and low energy consumption. There are three functions of each tank: air suction, pulp suction and flotation separation. They form the flotation loop on their own without any accessory. The horizontal arrangement of the flotation cells or cell flotation make the whole process easy to adjust, and the reasonable recycling of the ore pulp will reduce the coarse sand sediment to the largest extent.

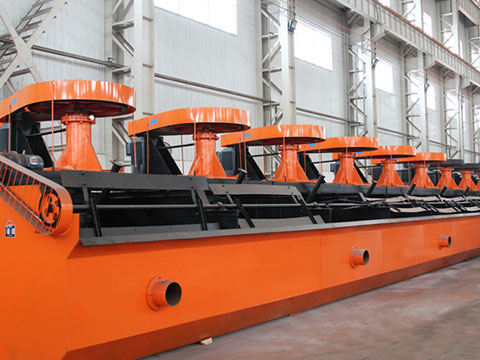

flotation cell

Working principle of flotation machine

The flotation machine or flotation cell realizes the separating process based on different wet properties of the minerals. In general, we call the floating difficulty of the minerals the floatability. The floatation separation of flotation machine is completed by considering the floatability of the materials. In the modern floatation separation process, the application of the floatation agent is quite important, because the agent can change the floatability of the minerals after the minerals are handled by the agent. The minerals that need to float will attach to the air bubbles, thus realizing the ore dressing aim.

Flotation Cell

Technical Parameters

Category Specification
Model
Effective
cubage
(m³)
Processing
capacity
(m³/min)
Main shaft     loam board Dimensions
(L×W×H)
(m)
Single
 trough
Weight
(t)
Power
(kw)
Rotate
speed
(r/min)
Rotate
 speed
(r/min)
Power
(kw)
XJK type
flotation
machine
XJK-0.35 0.35 0.18-0.4 1.5 483 25 1.1 0.7×0.7×0.7 0.5
XJK-0.62 0.62 0.3-0.9 3.0 400 25 1.1 0.90×0.82×0.85 1.0
XJK-1.1 1.1 0.6-1.6 5.5 330 25 1.1 1.1×1.1×1 1.4
XJK-2.8 2.8 1.5-3.5 11 280 25 1.1 1.75×1.6×1.1 2.5
XJK-5.8 5.8 5-7 22 240 25 1.5 2.2×2.2×1.2 3.6
SF type
flotation
machine
SF-0.37 0.37 0.2-0.4 1.5 386 25 1.1 0.7×0.7×0.75 0.5
SF-0.7 0.7 0.3-0.9 3 400 25 1.1 0.9×0.82×0.95 1.0
SF-1.2 1.2 0.6-1.6 5.5 330 25 1.1 1.1×1.1×1.1 1.9
SF-2.8 2.8 1.5-3.5 11 268 25 1.1 1.75×1.6×1.15 2.6
SF-4 4 2-4 15 220 25 1.5 1.85×2.05×1.2 2.9
SF-8 8 4-8 30 191 25 1.5 2.2×2.9×1.4 4.2
SF-10 10 5-10 30 191 25 1.5 2.2×2.9×1.7 4.5
SF-20 20 5-20 30×2 191 25 1.5 2.85×3.8×2 9.9
JJF type
flotation
machine
JJF-2 2 1-3 7.5 443 25 1.5 1.4×1.4×1.1 1.7
JJF-4 4 2-4 11 305 25 1.5 1.6×2.15×1.25 2.4
JJF-8 8 4-8 22 233 25 1.5 2.2×2.9×1.4 4.5
JJF-10 10 5-10 22 233 25 1.5 2.2×2.9×1.7 4.9
JJF-16 16 5-16 30 180 25 1.5 2.85×3.8×1.7 8.0
JJF-20 20 5-20 37 180 25 1.5 2.9×3.8×2.0 10.5
Category Specification
Model
Effective
cubage
(m³)
Processing
capacity
(m³/min)
XJK type
flotation
machine
XJK-0.35 0.35 0.18-0.4
XJK-0.62 0.62 0.3-0.9
XJK-1.1 1.1 0.6-1.6
XJK-2.8 2.8 1.5-3.5
XJK-5.8 5.8 5-7
SF type
flotation
machine
SF-0.37 0.37 0.2-0.4
SF-0.7 0.7 0.3-0.9
SF-1.2 1.2 0.6-1.6
SF-2.8 2.8 1.5-3.5
SF-4 4 2-4
SF-8 8 4-8
SF-10 10 5-10
SF-20 20 5-20
JJF type
 flotation
machine
JJF-2 2 1-3
JJF-4 4 2-4
JJF-8 8 4-8
JJF-10 10 5-10
JJF-16 16 5-16
JJF-20 20 5-20
