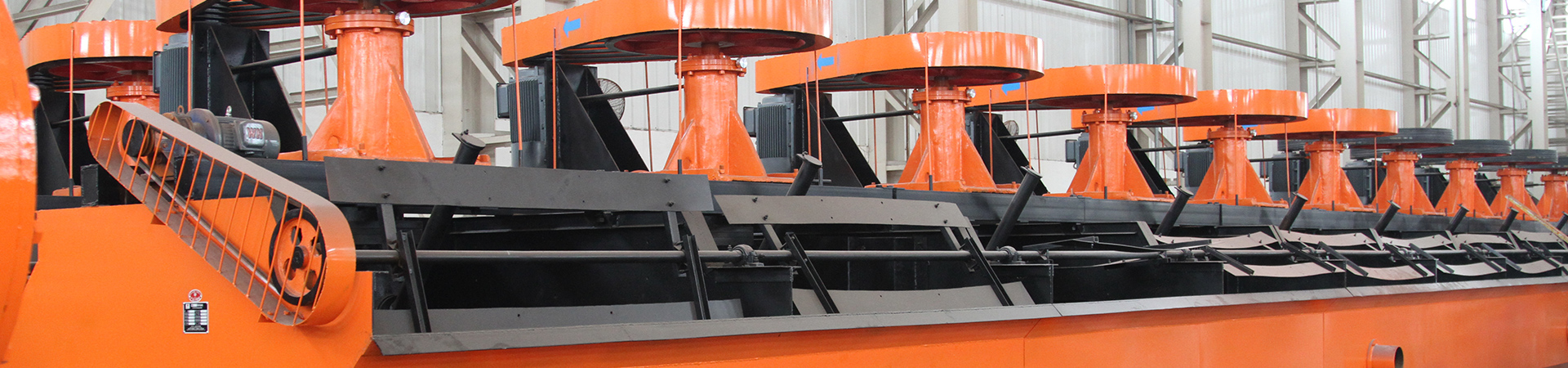

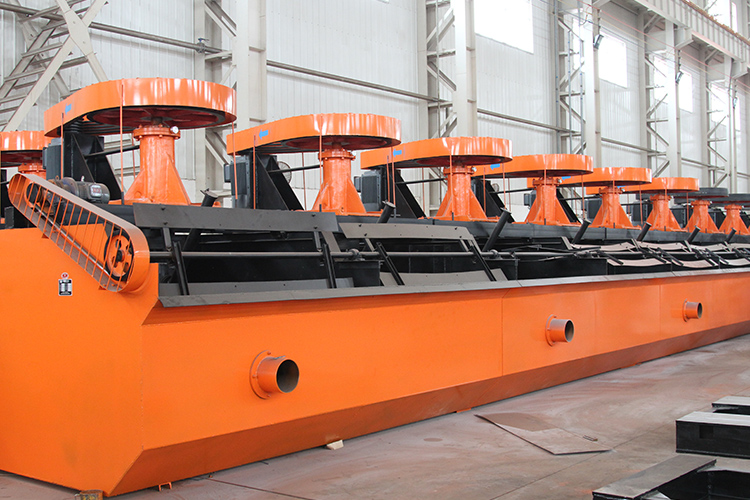

Flotation Machine Flotation Machine

Flotation Machine

  • Capacity:0.2-38 m³/min
  • Feeding Size:≤2mm
  1. Home
  2. Product
  3. Flotation Machine

Brief Introduction

The flotation machine is a core mineral processing equipment for mineral separation, widely used in beneficiating metallic ores (gold, silver, copper, lead-zinc, molybdenum) and non-metallic ores. Driven by a motor, its impeller rotates to create centrifugal negative pressure, mixing air with ore slurry and stirring it to react with reagents. Target minerals attach to bubbles to form mineralized foam, which is scraped out for separation. SF, BF, XCF and KYF series are optimized in impeller structure, aeration and energy consumption, adapting to roughing, cleaning and scavenging in mineral processing.

  • Application area:Metallic ore beneficiation, non-metallic mineral processing, coal washing, rare metal and rare earth ore separation, solid waste resource recycling etc.
Get Price Now Leave Message

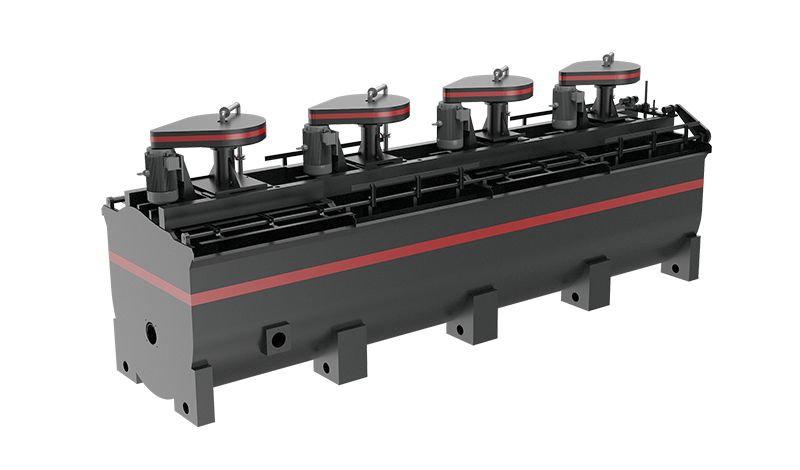

Flotation Machine

Material

  • Gold ore

  • Iron ore

  • Copper ore

  • Quartz

  • Manganese ore

Product Advantage

  • Low operating cost

    Compared with conventional mechanical agitation flotation machines, it can save 1/3-1/2 of electricity.

  • High sorting accuracy and low ash content of clean coal

    The ash content of clean coal can be reduced by 1-2% compared with conventional mechanical stirring flotation machines.

  • Good flotation effect

    It is equipped with automatic liquid level control and electronic control device, and the foam is highly refined, thus improving the flotation effect.

  • Durable wear parts

    The impeller is always active in the machine, which plays a role in removing accumulated materials and debris, reducing the damage to components due to debris; and the impeller of the mixing device is made of ground rubber, Enhanced wear resistance.

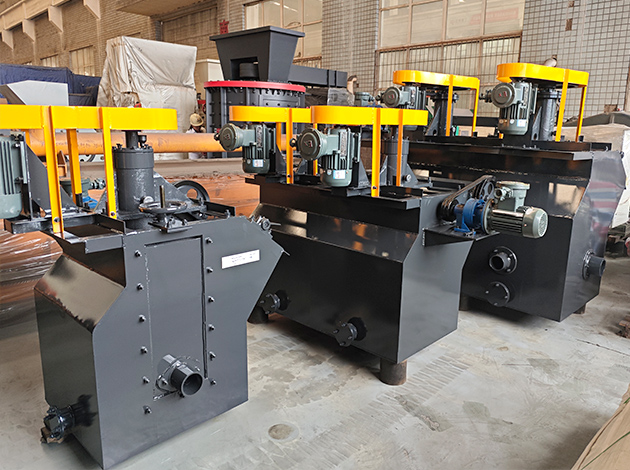

Product Photos

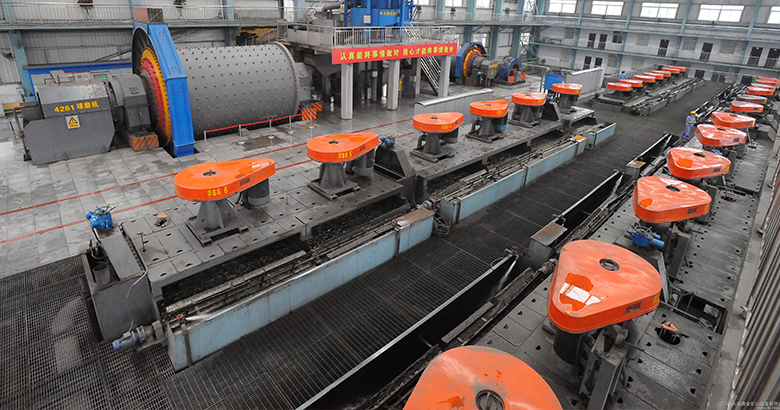

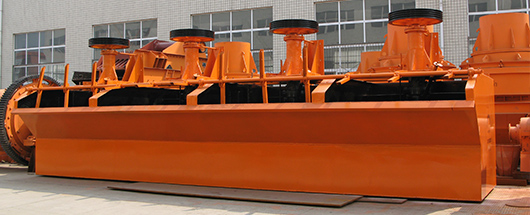

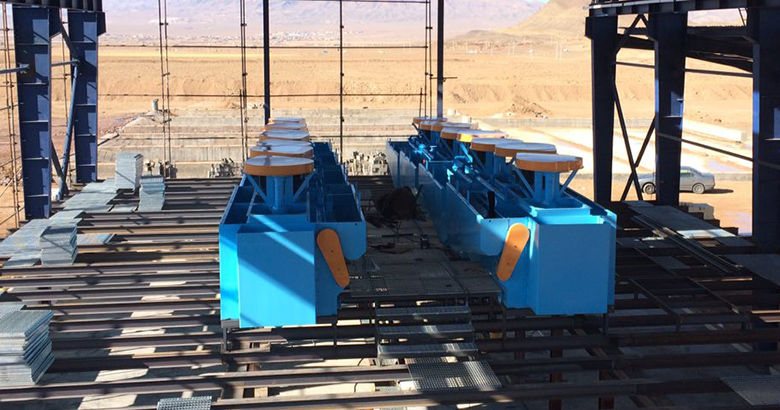

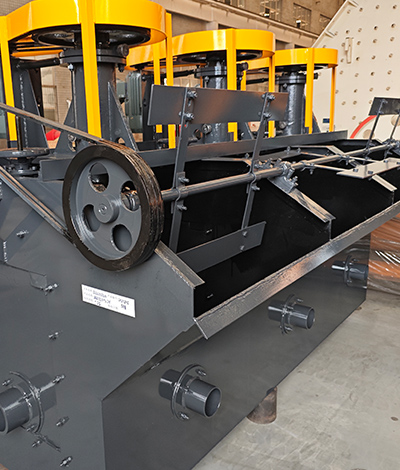

  • Production site

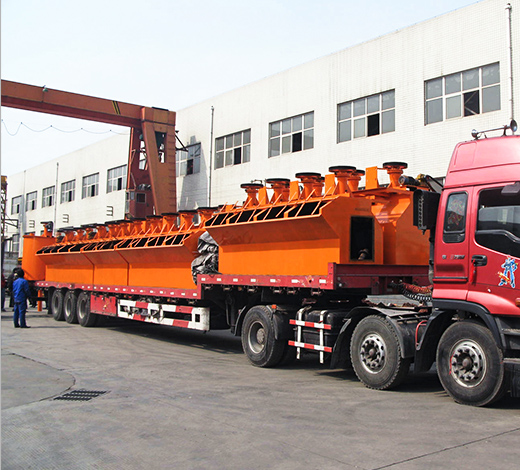

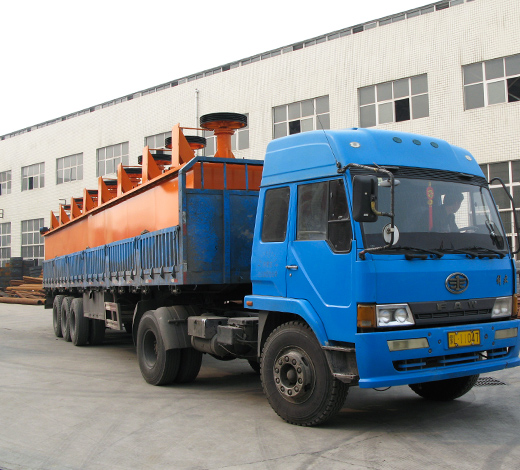

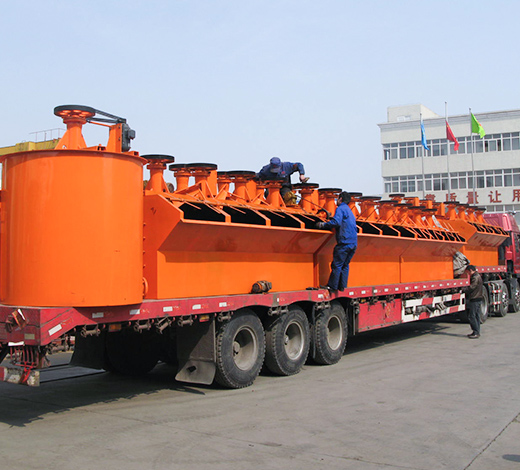

  • Delivery Site
  • Videos

Customer reviews

  • Capacity: 20TPH

  • Material: Gold Ore

Avatar Mr.Kato★★★★★

Uganda Gold Ore Flotation Project

This machine operates stably, has high sorting accuracy, and the gold recovery rate meets our requirements. The machine quality is excellent, easy to maintain, and there is no failure after long-term use. We are very satisfied with your company’s equipment.

55m agoUganda

  • Capacity: 50TPH

  • Material: Copper Ore

Avatar Mr. Adi★★★★★

Indonesia Copper Ore Flotation Project

This flotation machine has brought great convenience to our copper ore processing. It has low energy consumption, refined foam, and high copper recovery rate. The wearing parts are wear-resistant, and the operation is simple, which saves us a lot of labor costs.

7m agoIndonesia

Related Products

Technical Parameter

Category Model Effective Volume
(m³)		 Processing capacity Main shaft Loam board Dimensions
(LxWxH)
(M)
Power
(kw)		 Rotate speed
(r/min)		 Rotate speed
(r/min)		 Power
(kw)
XJK type flotation machine XJK-0.35 0.35 0.18-0.4 1.5 483 25 1.1 0.7×0.7×0.7
XJK-0.62 0.62 0.3-0.9 3 400 25 1.1 0.9×0.82×0.85
XJK-1.1 1.1 0.6-1.6 5.5 330 25 1.1 1.1×1.1×1.0
XJK-2.8 2.8 1.5-3.5 11 280 25 1.1 1.75×1.6×1.1
XJK-5.8 5.8 5-7 22 240 25 1.5 2.2×2.2×1.2
SF type flotation machine SF-0.37 0.37 0.2-0.4 1.5 386 25 1.1 0.7×0.7×0.75
SF-0.7 0.7 0.3-0.9 3 400 25 1.1 0.9×0.82×0.95
SF-1.2 1.2 0.6-1.6 5.5 330 25 1.1 1.1×1.1×1.1
SF-2.8 2.8 1.5-3.5 11 268 25 1.1 1.75×1.6×1.15
SF-4 4 2-4 15 220 25 1.5 1.85×2.05×1.2
SF-8 8 4-8 30 191 25 1.5 2.2×2.9×1.4
SF-10 10 5-10 30 191 25 1.5 2.2×2.9×1.7
SF-20 20 5-20 30×2 191 25 1.5 2.85×3.8×2.0
JJF type flotation machine JJF-2 2 1-3 7.5 443 25 1.5 1.4×1.4×1.1
JJF-4 4 2-4 11 305 25 1.5 1.6×2.15×1.25
JJF-8 8 4-8 22 233 25 1.5 2.2×2.9×1.4
JJF-10 10 5-10 22 233 25 1.5 2.2×2.9×1.7
JJF-16 16 5-16 30 180 25 1.5 2.85×3.8×1.7
JJF-20 20 5-20 37 180 25 1.5 2.9×3.8×2.0

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Effective Volume
(m³)		 Processing capacity
XJK-0.35 0.35 0.18-0.4
XJK-0.62 0.62 0.3-0.9
XJK-1.1 1.1 0.6-1.6
XJK-2.8 2.8 1.5-3.5
XJK-5.8 5.8 5-7
SF-0.37 0.37 0.2-0.4
SF-0.7 0.7 0.3-0.9
SF-1.2 1.2 0.6-1.6
SF-2.8 2.8 1.5-3.5
SF-4 4 2-4
SF-8 8 4-8
SF-10 10 5-10
SF-20 20 5-20
JJF-2 2 1-3
JJF-4 4 2-4
JJF-8 8 4-8
JJF-10 10 5-10
JJF-16 16 5-16
JJF-20 20 5-20

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model KYF-1 KYF-2 KYF-3 KYF-4 KYF-8 KYF-16 KYF-24 KYF-38
Chute Dimensions Length（mm） 1000 1300 1600 1800 2200 2800 3100 3600
Width（mm） 1000 1300 1600 1800 2200 2800 3100 3600
Height（mm） 1100 1250 1400 1500 1950 2400 2900 3400
Single  effective Weight（t） 1.1 1.5 1.9 2.3 3.6 5.9 9.9 15.1
Effective cubage（m³） 1 2 3 4 8 16 24 38
Production Capacity (m³/min) 0.2-1 0.4-2 0.6-3 1.2-4 3—8 4—6 4—24 10—38
Main shaft motor Model Y132M1-6 Y160M2-8 Y160L-8 Y180L-8 Y200L-8 Y250M-8 Y250M-8 Y280S-8
Power（kw） 4 5.5 7.5 11 15 30 30 37
Rotate speed(r/min) 960 720 720 970 730 730 730 740
Diameter（mm） 340 410 480 550 630 740 800 880
Height（mm） 215 256 300 340 390 460 — 545
Rotate speed(r/min) 281 247 219 200 175 160 150 138
Circular velocity(m/s) 5 5.3 5.5 5.76 5.77 6.7 6.25 6.36
Loam board motor Model Y90S-4 Y90S-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4
Power（kw） 1.1 1.1 1.5 1.5 1.5 1.5 1.5 1.5
Rotate speed(r/min) 1400 1400 1400 1400 1400 1400 1400 1400
Loam board Rotate speed(r/min) 18 18 16 16 16 16 16 16
Diameter（mm） 500 500 580 600 600 700 700 500
Wind pressure of fan（kpa） ≥12.6 ≥14.7 ≥19.8 ≥19.8 ≥21.6 ≥25.5 ≥30.4 ≥34.3
Max. air injection amount(m³.min) 2 2 2 2 2 2 2 2
Model Effective cubage
(m³)		 Production Capacity
(m³/min)
KYF-1 1 0.2-1
KYF-2 2 0.4-2
KYF-3 3 0.6-3
KYF-4 4 1.2-4
KYF-8 8 3-8
KYF-16 16 4-6
KYF-24 24 4-24
KYF-38 38 10-38
Model Trough volume
(m³)		 Inside dimensions
(L×W×H)
(m)		 Air suction amount
(m³·min)		 Power
(kw)		 Motor model Processing capacity
(m³/min)
BF-0.37 0.37 0.74×0.74×0.75 0.9～1.05 1.5 Y90L-4 0.2～0.4
BF-0.65 0.65 0.85×0.95×0.9 0.9～1.10 3.0 Y132S-6 0.3～0.7
BF-1.2 1.2 1.05×1.15×1.10 1.0～1.10 5.5
4.0		 Y132M2-6
Y132M1-6		 0.6～1.2
BF-2.0 2.0 1.40×1.45×1.12 1.0～1.10 7.5 Y160M-6 1.0～2.0
BF-2.8 2.8 1.65×1.65×1.15 0.9～1.10 11 Y180L-8 1.4～3.0
BF-4.0 4.0 1.9×2.0×1.2 0.9～1.10 15 Y200L-8 2～4
BF-6.0 6.0 2.2×2.35×1.3 0.9～1.10 18.5 Y225S-8 3～6
BF-8.0 8.0 2.25×2.85×1.4 0.9～1.10 22
30		 Y225M-8
Y250M-8		 4～8
BF-10 10 2.25×2.85×1.7 0.9～1.10 22
30		 Y225M-8
Y250M-8		 5～10
BF-16 16 2.85×3.8×1.7 0.9～1.10 37
45		 Y280S-8
Y280M-8		 8～16
BF-20 20 2.85×3.8×2.0 0.9～1.10 37
45		 Y280S-8
Y280M-8		 10～20
BF-24 24 3.15×4.15×2.0 0.9～1.10 45 Y280M-8 12～24
Model Trough volume
(m³)		 Processing capacity
(m³/min)
BF-0.37 0.37 0.2～0.4
BF-0.65 0.65 0.3～0.7
BF-1.2 1.2 0.6～1.2
BF-2.0 2.0 1.0～2.0
BF-2.8 2.8 1.4～3.0
BF-4.0 4.0 2～4
BF-6.0 6.0 3～6
BF-8.0 8.0 4～8
BF-10 10 5～10
BF-16 16 8～16
BF-20 20 10～20
BF-24 24 12～24
Model XCF-1 XCF-2 XCF-3 XCF-4 XCF-8 XCF-16 XCF-24 XCF-38
Dimensions Length（mm） 1000 1300 1600 1800 2200 2800 3100 3600
Width（mm） 1000 1300 1600 1800 2200 2800 3100 3600
Height（mm） 1100 1250 1400 1500 1950 2400 10819 3400
Single Effective Weight（t） 1.2 1.7 2.3 2.7 3.9 6.6 8.0 16.8
Effective cubage（m³） 1 2 3 4 8 16 24 38
Production Capacity (m³/min) 0.2—1 0.4—2 0.6—3 1.2—4 3—8 4—16 4—24 10—38
Main shaft motor Model Y132M2-6 Y160M-6 Y160L-6 Y180L-6 Y200L2-6 Y280S-8 Y280S-8 Y280S-6
Power（kw） 5.5 7.5 11 15 22 37 37 45
Impeller Rotate speed(r/min) 960 970 970 970 970 740 740 980
Diameter（mm） 400 460 540 620 720 860 950 —
Height（mm） 155 175 207 247 321 349 — —
Rotate speed(r/min) 358 331 266 215 185 160 153 —
Circular velocity(m/s) 7.5 7.5 7.5 7 6.97 7.6 7.6 7.4
loam board motor Model Y90S-4 Y90S-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4 Y90L-4
Power（kw） 1.1 1.1 1.5 1.5 1.5 1.5 1.5 1.5
Rotate speed(r/min) 1400 1400 1400 1400 1400 1400 1400 1400
loam board Rotate speed(r/min) 18 18 16 16 16 16 16 16
Diameter（mm） 500 500 580 600 600 700 700 700
Wind pressure of fan （kpa） ≥12.6 ≥14.7 ≥19.8 ≥19.8 ≥21.6 ≥25.5 ≥30.4 ≥34.3
Max. air injection amount(m³.min) 2 2 2 2 2 2 2 2
Model Effective cubage(m³) Production Capacity (m³/min)
XCF-1 1 0.2-1
XCF-2 2 0.4-2
XCF-3 3 0.6-3
XCF-4 4 1.2-4
XCF-8 8 3-8
XCF-16 16 4-16
XCF-24 24 4-24
XCF-38 38 10-38
