Hammer Crusher

Hammer Crusher

Hammer Crusher

Capacity:10-1200t/h
Feeding Size:≤1000mm

Brief Introduction

The PCZ/X series hammer crusher is a high-efficiency crushing & shaping all-in-one machine for medium-hard and brittle materials (compressive strength ＜150MPa) like limestone and coal gangue. PCZ model achieves one-pass crushing with 40% cost reduction; PCX model realizes one-stage crushing from two-stage, ideal for large production lines. Widely used in mining, building materials and chemical industries, it features easy maintenance and small footprint.

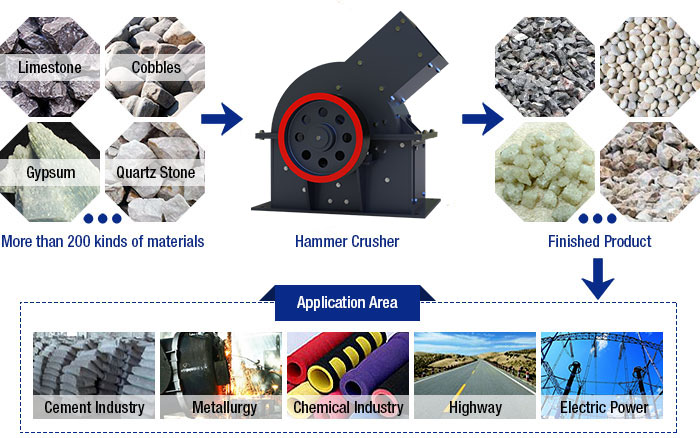

Application area：Quarrying and Mining,Aggregate production,Construction waste recycling,Road construction & infrastructure,Concrete Batching Plant,Dry Mortar, Power Plant Desulfurization etc.

Get Price Now Leave Message

Hammer Crusher

Material

river pebbles
construction waste
granite
limestone
basalt
iron ore

Product Advantage

Integrated Crushing & Shaping

Achieves crushing and shaping in one machine to simplify production.
Wide Material Adaptability

Suitable for medium-hard and brittle materials under 150MPa compressive strength.
One-Time Forming & Cost Saving

Realizes one-pass crushing without secondary processing, lowering cost by about 40%.
Simplified Production Process

Reduces two-stage crushing to single-stage for higher efficiency.
Easy Operation & Small Footprint

Simple structure ensures easy maintenance and less space occupation.

Product Photos

Production site
Delivery Site
Videos

Customer reviews

Capacity: 100TPH
Material: Cement Clinker

Khalid Al-Saud★★★★★

Saudi Arabia Cement Clinker Crushing Project

This hammer crusher operates stably and efficiently, completely meeting our daily production needs. It effectively avoids unplanned downtime and helps us reduce maintenance costs significantly .

14m agoSaudi Arabia

Capacity: 50TPH
Material: Copper Concentrate

Bruce Thompson★★★★★

DRC Copper Concentrate Crushing Project

The equipment is easy to operate and has a high crushing ratio, which can accurately crush copper concentrate to the required particle size. We are very satisfied with its performance and after-sales service.

4m agoDRC

Related Products

Jaw Crusher
Cone Crusher
Impact Crusher
Gyratory Crusher
Mobile Stone Crusher

Technical Parameter

PCZ type heavy hammer crusher
hammer crusher
PCX type hammer shaped crusher

Model	Rotor diameter×length (mm)	Feed Opening Length×width(mm)	Feeding Size (mm)	Processing Capacity(t/h)	Power (kw)	Dimensions L×W×H (mm)
PCZ1308	Φ1330×790	870×780	≤380	60-160	132	2880×2130×2390
PCZ1410	Φ1400×1000	1060×740	≤450	80-210	2×90(160)	2830×2100×2485
PCZ1610	Φ1600×1000	1090×930	≤480	100-230	2×132	3370×2415×2750
PCZ1612	Φ1600×1200	1340×1140	≤500	120-350	2×160	3370×2613×2750
PCZ1615	Φ1600×1500	1570×1140	≤550	200-550	2×200	3370×2925×2750
PCZ1716	Φ1700×1600	1420×1200	≤600	400-850	2×250	3520×3000×3210
PCZ1720	Φ1700×2000	2030×1200	≤650	500-1000	2×400	3670×3390×3330
PCZ1920	Φ1900×2000	1980×1210	≤750	800-1500	2×500	4490×3910×3600
PCZ2225	Φ2200×2500	2530×1610	≤1000	1500-3000	1250	4890×5010×4560

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Feeding Size (mm)	Processing Capacity(t/h)
PCZ1308	≤380	60-160
PCZ1410	≤450	80-210
PCZ1610	≤480	100-230
PCZ1612	≤500	120-350
PCZ1615	≤550	200-550
PCZ1716	≤600	400-850
PCZ1720	≤650	500-1000
PCZ1920	≤750	800-1500
PCZ2225	≤1000	1500-3000

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Specification	Capacity(t/h)	Power (kw)
PC 400×300	3-10	4P 11
PC 600×400	6-22	4P 22
PC 800×600	10-40	4P 55
PC 1000×800	15-50	4P 75
PC 1000×1000	18-75	4P 90
PC 1200×1200	22-95	4P 132

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Specification	Capacity(t/h)	Power (kw)
PC 400×300	3-10	4P 11
PC 600×400	6-22	4P 22
PC 800×600	10-40	4P 55
PC 1000×800	15-50	4P 75
PC 1000×1000	18-75	4P 90
PC 1200×1200	22-95	4P 132

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Rotor diameter×Length（mm）	Feed Opening Length×Width（mm）	Feeding Size（mm）	Processing Capacity（t/h）	Power（kw）	Dimensions(L×W×H)（mm）
PCX 0706	700×570	618×510	≤150	30-70	75	1950×1340×1480
PCX 0808	800×750	780×610	≤150	45-100	132	2280×1790×1570
PCX 0910	900×1000	1070×750	≤200	70-200	2×110	2600×2200×1940
PCX 1012	1000×1180	1315×900	≤200	130-300	2×132	2760×2430×2290
PCX 1213	1260×1280	1430×1010	≤250	200-350	2×160	3067×2622×2580
PCX 1216	1260×1490	1630×1010	≤250	230-500	2×200	3067×2832×2580
PCX 1220	1260×1950	2090×1010	≤250	300-700	2×220	3067×3380×2580
PCX 1622	1600×2150	2300×950	≤300	400-1200	2×315	4120×3680×3200

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Feeding Size（mm）	Processing Capacity（t/h）
PCX 0706	≤150	30-70
PCX 0808	≤150	45-100
PCX 0910	≤200	70-200
PCX 1012	≤200	130-300
PCX 1213	≤250	200-350
PCX 1216	≤250	230-500
PCX 1220	≤250	300-700
PCX 1622	≤300	400-1200

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
