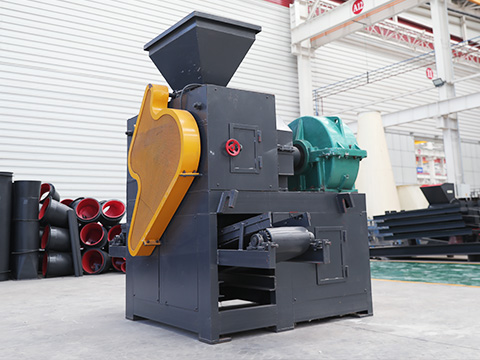

High pressure briquetting machine

High pressure briquetting machine

Theoretical yield:2-28(t/h) Diameter of Roller: 500-1000mm Applied materials:Pulverized coal, coking coal, iron powder, aluminum powder, scrap iron, graphite, clay, kaolin, desulfurization gypsum, cryolite, chemical fertilizer, limestone, carbon powder, activated carbon, coke powder, tailings, slag, sludge, etc

Similar Products

high pressure briquetting machine

The high pressure briquetting machine or high pressure briquette machine is mainly used by the industries of refractory matter, electricity power plant, metallurgy, chemical engineering, energy, transportation and heat supply to press different kinds of powers and waste residues such as coal powder, iron oxide, iron powder, aluminum powder, iron oxide sheet, powdered carbon, slurry, gypsum, gangue, sludge, kaolin, active carbon and dusk coke, etc.

high pressure ball machine

Henan Fote Machinery Co., Ltd. covers an area of 360,000 square meters, including heavy duty industrial workshops with 60,000 square meters. The major equipment of our company include large and medium sized metal processing, riveting and installing machines, such as briquette machine, ball mill, mobile crusher, jaw crusher, cone crusher, hammer crusher, Raymond mill, magnetic separator, flotation separator, drying machine, etc.

high pressure briquetting machine

Leave us a message for more product details and price list?

Technical Parameters

Model Roll diamter
(mm)
Roll width
(mm)
Total pressure
(t)
Main motor power
(kw)
Output
(t)
Weight
(t)
GY520-150 520 196 150 55 2.2-3.5 13
GY650-220 650 200 220 110 4-6.5 19.2
GY750-300 750 280 300 185 6-8.5 34
GY1000-350 1000 440 350 250 10-15 50.8
GY1000-450 1000 504 450 280 14-17 58.5
GY1000-500 1000 504 500 315 15-20 58.5
GYS1000-500 1000 600 500 280 17-21 56.5
GY1000-540 1000 900 540 185Kw×2 30-35 60
GY1200-800 1200 900 800 280Kw×2 40 110
GY1400-1000 1400 1000 1000 400Kw×2 50 156
