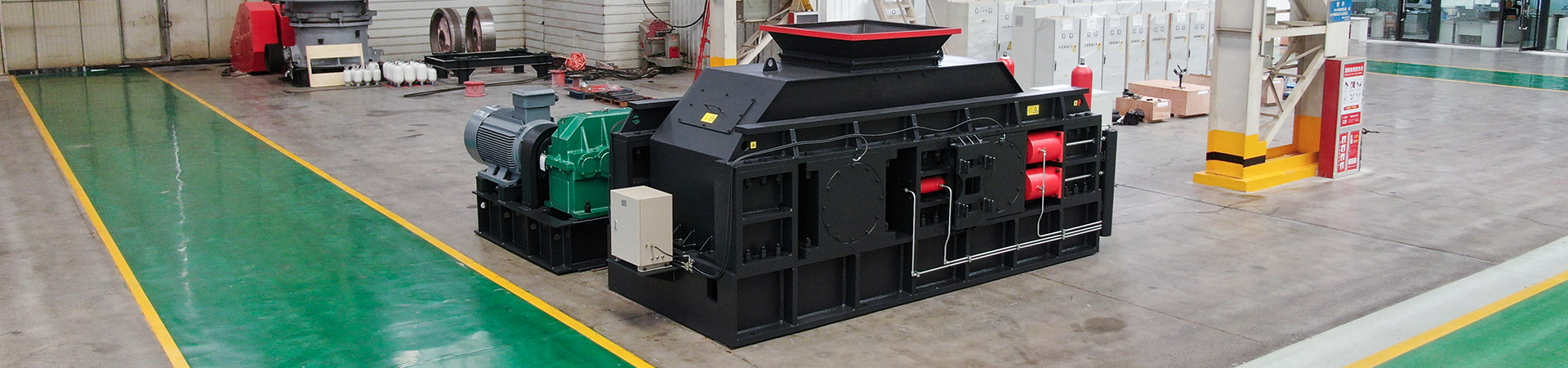

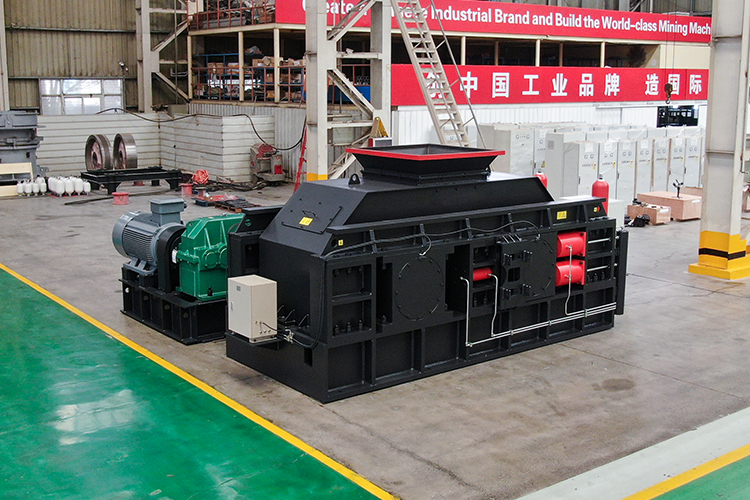

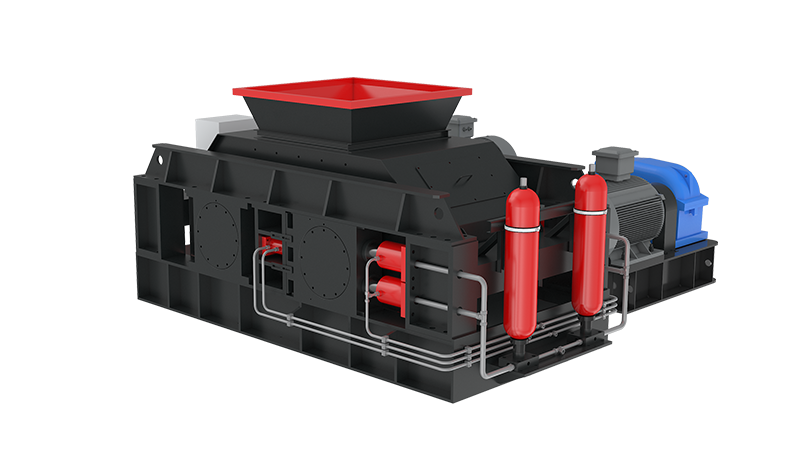

Hydraulic Roll Crusher Hydraulic Roll Crusher

Hydraulic Roll Crusher

  • Capacity:20-600t/h
  • Feeding Size:≤120mm
  1. Home
  2. Product
  3. Hydraulic Roll Crusher

Brief Introduction

The hydraulic roller crusher through excellent electro-mechanical and hydraulic integration design, the equipment can operate continuously, stably and reliably. In aggregate and grinding systems, it can generally increase the output by 30%-40% and reduce the total energy consumption by 20%-30%. It can finely crush materials of various hardness in mineral processing, chemical industry, refractroy, stone processing, building materials and other industries.

  • Application area:Quarrying and Mining,Aggregate production,Construction waste recycling,Road construction & infrastructure,Concrete Batching Plant,Dry Mortar, Power Plant Desulfurization etc.
Get Price Now Leave Message
Hydraulic Roll Crusher

Material

  • river pebbles

  • construction waste

  • granite

  • limestone

  • basalt

  • iron ore

Product Advantage

  • Durable Component Design

    Adopting heavy-duty thickened roller skin, wear-resistant and impact resistant, coupled with an automatic lubrication device, greatly prolongs the service life of the components;

  • Cost-Efficient Control System

    The equipment is equipped with an automatic control system, which can significantly reduce investment and usage costs compared with other crushing systems with equivalent performance;

  • Precise Hydraulic Gap Adjustment

    Ensure stable operation of the roller skin gap between 1-40mm through hydraulic adjustment;

  • Intelligent Overload Protection

    Equipped with overload protection, when unbreakable objects enter between the rollers, the rollers automatically avoid and return to the set gap.

Product Photos

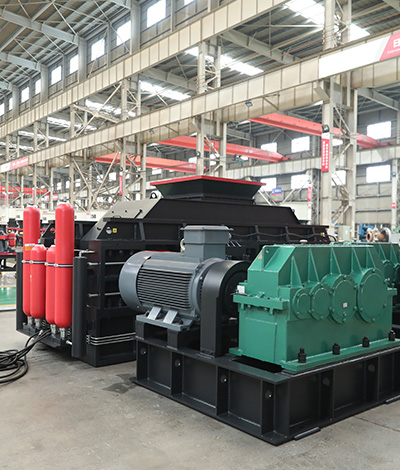

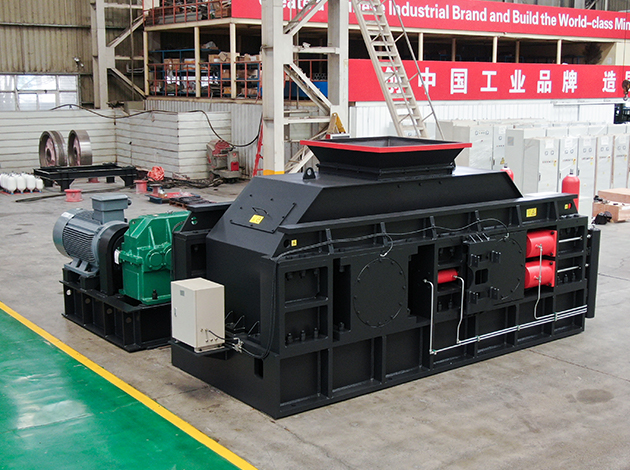

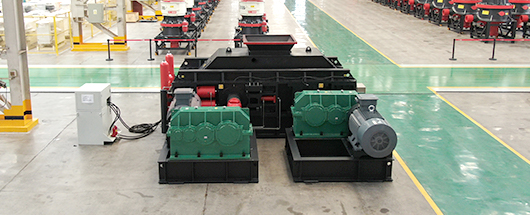

  • Production site
  • Delivery Site
  • Videos

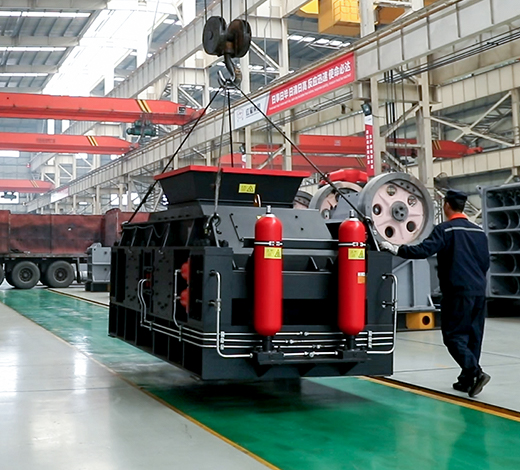

Image 1

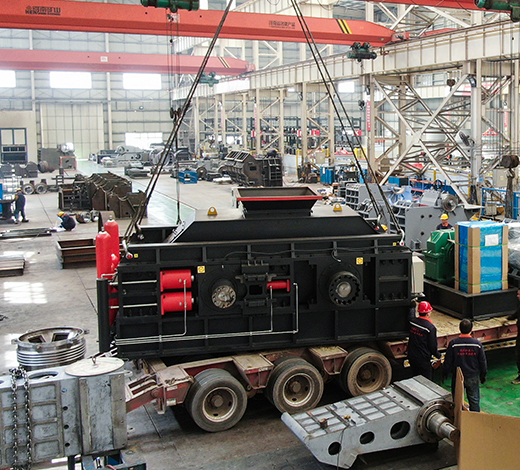

Image 2

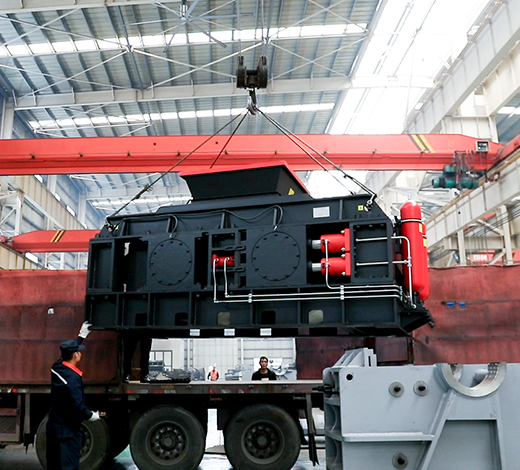

Image 3

Customer reviews

Bahrain Limestone Crushing Project

  • Capacity: 50TPH

  • Material: Limestone

Avatar Anil ★★★★★

Bahrain Limestone Crushing Project

This roll crusher has excellent performance and high cost-performance. The operation is simple, the output is stable, and the wearing parts are durable. We are very satisfied and will buy again and recommend it to peers.

21m agoBahrain

Azerbaijan Basalt Crushing Project

  • Capacity: 120TPH

  • Material: Basalt

Avatar Mr.Aliyev★★★★★

Azerbaijan Basalt Crushing Project

Compared with other crushers we used, this machine runs more smoothly with lower energy consumption and consistent product size. It’s very reliable for our medium-scale production and highly recommended.

49m agoAzerbaijan

Related Products

Technical Parameter

Model Roller Diameter (mm） Roller Width (mm) Maximum Feed Size(mm) Corresponding processing capacity of discharge port(t/h) Power(kw)
5mm 10mm 15mm
2PGY1008 ø 1000 800 ≤40 20-80 30-110 50-150 2×55
2PGY1210 ø 1200 1000 ≤60 25-100 50-180 80-240 2×90
2PGY1510 ø 1500 1000 ≤80 30-130 60-240 90-330 2×160
2PGY1810 ø 1800 1000 ≤100 40-170 80-320 120-450 2×250
2PGY2012 ø 2000 1200 ≤120 60-220 110-400 170-600 2×315

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Maximum Feed Size(mm) Corresponding processing capacity of discharge port(t/h)
5mm 10mm 15mm
2PGY1008 ≤40 20-80 30-110 50-150
2PGY1210 ≤60 25-100 50-180 80-240
2PGY1510 ≤80 30-130 60-240 90-330
2PGY1810 ≤100 40-170 80-320 120-450
2PGY2012 ≤120 60-220 110-400 170-600

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
