Impact Crusher Impact Crusher

Impact Crusher

  • Capacity:30-800t/h
  • Feeding Size:≤800mm
  1. Home
  2. Product
  3. Impact Crusher

Brief Introduction

Impact crusher (including CI/PF series) is an excellent medium and fine crushing equipment. Adopting new high wear-resistant materials and unique structural design, it features large processing capacity and high crushing efficiency. With good particle shape and stable operation, it is widely used in quarrying, aggregate, building materials, infrastructure and slag recycling, especially for efficient crushing of low abrasion materials with medium hardness and below.

Application area：Quarrying and Mining,Aggregate production,Construction waste recycling,Road construction & infrastructure,Concrete Batching Plant,Dry Mortar, Power Plant Desulfurization etc.

Get Price Now Leave Message
Impact Crusher

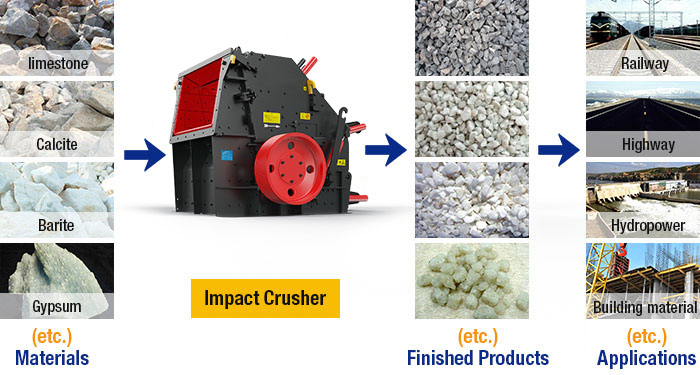

Material

  • river pebbles

  • construction waste

  • granite

  • limestone

  • basalt

  • iron ore

Product Advantage

  • Wear-resistant & Stable Structure

    High-chromium plate hammer resists impact & wear. Adjustable gap ensures stable & uniform discharge.

  • Low Maintenance Cost

    New wear-resistant materials extend service life, reducing inventory & replacement costs.

  • Compact & Robust Design

    Compact rigid structure with large rotor inertia ensures stable operation under high load.

  • Intuitive Hydraulic Control

    Multi-functional hydraulic adjustment ensures high precision & speed, reducing labor intensity & downtime.

  • Efficient Crushing Effect

    Heavy-duty rotor with large feed inlet efficiently crushes hard & large materials, minimizing stone powder.

Product Photos

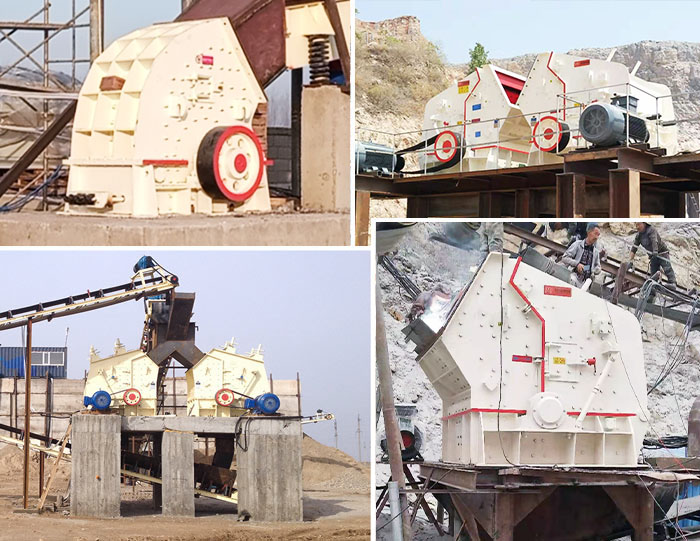

  • Production site
  • Delivery Site
  • Videos




Customer reviews


  • Capacity: 220TPH

  • Material: Calcite

James James★★★★★

Calcite Crushing for Powder Production in Malaysia

This impact crusher delivers high efficiency for calcite crushing with uniform particle size and minimal stone powder. Compared to other brands, it offers exceptional value for money and superior quality. I will definitely choose it for our next upgrade.

51m agoMalaysia


  • Capacity: 50TPH

  • Material: Gypsum

Silva Carlos★★★★★

Gypsum Waste Recycling Crushing in India

The impact crusher performs perfectly on gypsum waste, meeting the strict quality standards for our building materials. Its high-chromium hammer is wear-resistant with low replacement costs; it offers great value for money and is highly recommended.

46m agoIndia

Related Products

Technical Parameter

Model Rotor
（mm）		 The Maximum Feeding Size
（mm）		 Capacity
（t/h）		 Motor power
（kw）

Overall dimension
（L×W×H）
(mm)

 Weight
（kg）
-150MPa -350MPa
HD1110 Φ1040×1000 400 200 90~190 4P   90-132 3000×2360×2385 15875
HD1315 Φ1300×1500 700 300 180~280 4P    200-270 3735×3156×3055 29600
HD1520 Φ1500×2000 1000 400 350~500 4P   400-500 4310×3330×3660 42000
HD1625 Φ1650×2500 1300 500 500~670 4P   500-670 5540×4330×4600 66000
Rotor
（mm）		 Discharging
（mm）		 Capacity
（t/h）
-150MPa -350MPa
Φ1040×1000 400 200 90-190
Φ1300×1500 700 300 180~280
Φ1500×2000 1000 400 350~500
Φ1650×2500 1300 500 500~670
Model Maximum Feeding Size (mm) Power (kw) Capacity (t/h) Dimensions(L×W×H)(mm)
CI1110 250 160 60-210 2826×2087×2285
CI1213 300 200 80-280 2903×2530×2411
CI1316 300 250 100-350 3320×2770×2535
CI1321 300 315 130-430 2955×3285×2585
CI1521 350 2×(200-250) 200-600 3450×3620×2770
Cl1524 350 2×315 240-700 3450×3925×2855
Cl1630 400 710-800 300-900 3693×4520×3173



Model Maximum Feeding Size (mm) Power (kw) Capacity (t/h) Dimensions(L×W×H)(mm)
CI1313 600 200 100-480 2972×2560×2937
CI1415 600 250 120-600 2985×2790×3068
CI1620 800 2×(200-250) 220-900 4261×3480×3780
CI2023 800 2×500 400-2000 5151×4424×4712
Model Maximum Feeding Size (mm) Capacity(t/h)
CI1110 250 60-210
CI1213 300 80-280
CI1316 300 100-350
CI1321 300 130-430
CI1521 350 200-600
Cl1524 350 240-700
Cl1630 400 300-900



Model Maximum Feeding Size (mm) Capacity(t/h)
CI1313 600 100-480
CI1415 600 120-600
CI1620 800 220-900
CI2023 800 200-2000

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Specifications(mm) Feed Openting(mm) Maximum Feeding size（mm） Capacity（t/h） Power（KW） Dimensions L×W×H（mm）
PF1007 ø 1000×700 400×730 300 30-70 4P 37-45 2330×1660×2300
PF1010 ø 1000×1050 400×1080 350 50-90 4P 45-55 2370×1700×2390
PF1210 ø 1250×1050 400×1080 350 70-130 6P 110 2680×2160×2800
PF1214 ø 1250×1400 400×1430 350 80-180 6P 132 2650×2460×2800
PF1315 ø 1320×1500 860×1520 500 100-280 6P 200 3180×2720×3120
PF1320 ø 1320×2000 993×2000 500 140-380 6P 250 3220×3100×3120
PF1520 ø 1500×2000 830×2040 700 200-550 4P 315-400 3959×3564×3330
PF1820 ø 1800×2000 1260×2040 800 300-800 6P 630-710 4400×3866×4009

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Feed Openting(mm) Capacity（t/h）
PF1007 400×730 30-70
PF1010 400×1080 50-90
PF1210 400×1080 70-130
PF1214 400×1430 80-180
PF1315 860×1520 100-280
PF1320 993×2000 140-380
PF1520 830×2040 200-550
PF1820 1260×2040 300-800

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
