Jaw Crusher

Jaw Crusher

Jaw Crusher

Capacity:5-1200t/h
Feeding Size:≤1500mm

Brief Introduction

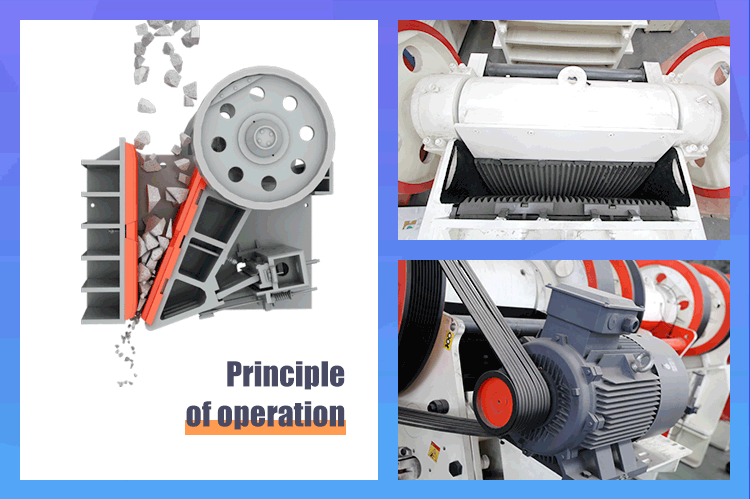

Jaw crusher, commonly known as jaw breaker or tiger mouth, is a classic primary crushing equipment. It adopts curved extrusion principle, driven by motor to crush materials through the movement of movable and fixed jaw plates. Suitable for coarse and medium crushing of materials with compressive strength ≤320MPa (granite, ore, construction waste, etc.), it has advantages of simple structure, durability, stable operation and uniform finished products, widely used in mining, construction, highway and other fields.

Application area：Quarrying and Mining,Aggregate production,Construction waste recycling,Road construction & infrastructure,Concrete Batching Plant,Dry Mortar, Power Plant Desulfurization etc.

Get Price Now Leave Message

Jaw Crusher

Material

river pebbles
construction waste
granite
limestone
basalt
iron ore

Product Advantage

Durability Advantage

Core components are made of high-quality materials, with long service life.
Structure Advantage

Simple structure, easy to install and maintain, low failure rate.
Flexibility Advantage

Multiple models available, flexible discharge port adjustment.
Adaptability Advantage

Strong adaptability, suitable for various working environments and material types.

Product Photos

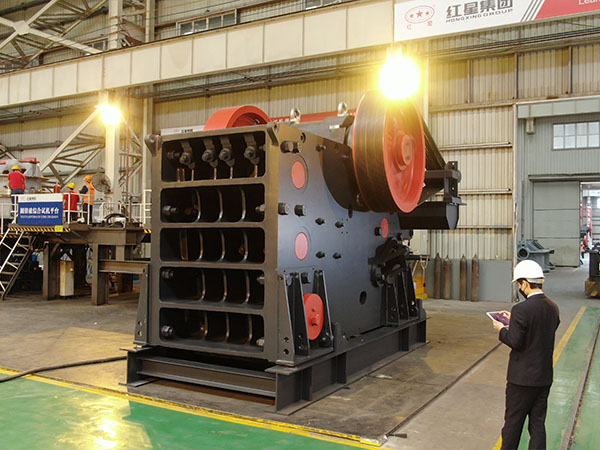

Production site
Delivery Site
Videos

Customer reviews

Capacity: 100TPH
Material: Basalt

Arif ★★★★★

Basalt Crushing Project in New Zealand

The machine is sturdy enough for hard basalt crushing. Deep V crushing chamber ensures smooth feeding without blocking. It runs stably with low wear, easy maintenance and supports long-term continuous production.

11m agoNew Zealand

Capacity: 50tph
Material: River stone

Carlos Rodriguez★★★★★

River Aggregate Processing Case in Mexico

Solid & durable structure delivers uniform coarse crushing quality. Discharge gap adjustment is fast and flexible, saving much on-site commissioning time. Low failure rate effectively cuts our overall production costs.

56m agoMexico

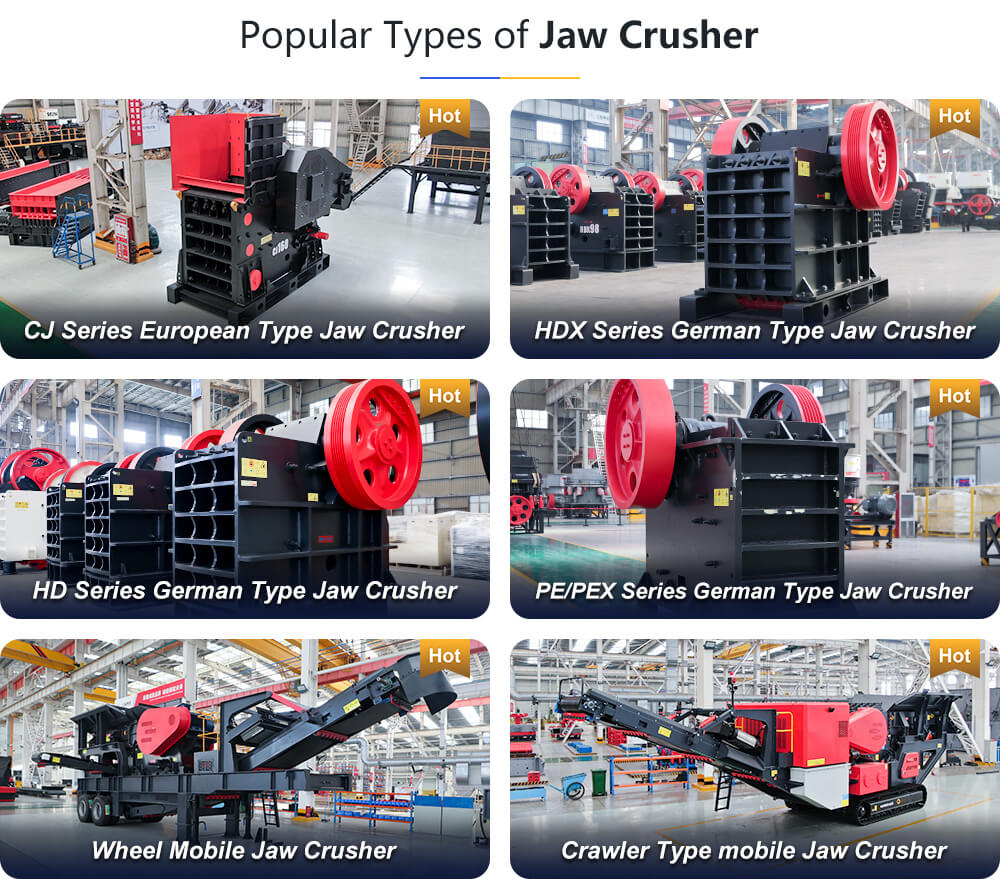

Related Products

HJ Series Jaw Crusher
CJ Series European Type Jaw Crusher
HDX Series German Type Jaw Crusher
PE/PEX Jaw Crusher

Technical Parameter

PE/PEX jaw crusher
CJ series European type jaw crusher
HDX German type jaw crusher
HJ series jaw crusher

Model	Feed opening size(mm）	Max.Feeding size (mm)	Adjustment range of discharge port (mm)	Capacity(t/h)	Rotation speed of eccentric shaft(r/min)	Power (kw)	Dimensions（L×W×H） (mm)
PE 150×250	150×250	125	10-40	1-3	268	4P 5.5	760×700×860
PE 200×300	200×300	180	15-50	2-6	260	4P 7.5	915×780×990
PE 200×350	200×350	180	18-60	3-10	276	4P 11	1000×914×1112
PE 250×400	250×400	210	20-70	5-21	300	6P 15	1100×1032×1285
PE 400×600	400×600	340	40-100	16-64	270	6P 30	1623×1736×1615
PE 500×750	500×750	425	50-100	40-110	268	6P 55	1920×1850×1920
PE 600×750	600×750	500	150-200	80-240	268	6P 55	2020×1850×1920
PE 600×900	600×900	500	65-160	50-160	254	6P 55	2530×1900×2340
PE 750×1060	750×1060	630	80-180	110-320	245	8P 110	2680×2380×2785
PE 900×1200	900×1200	750	100-200	220-380	208	8P 110	3470×2876×3330
PE1200×1500	1200×1500	1020	150-350	400-1000	180	8P 160-245	4850×3220×3680
PE1500×1800	1500×1800	1200	220-350	500-1200	180	8P 280-380	5160×3660×4248
PEX 150×750	150×750	120	18-48	8-25	320	4P 15	1170×1575×1030
PEX 250×750	250×750	210	25-60	13-35	320	6P 22	1550×1730×1470
PEX 250×1000	250×1000	210	25-60	16-52	330	6P 30	1580×2006×1390
PEX 250×1200	250×1200	210	25-60	20-61	330	6P 37	1780×2214×1430
PEX 300×1300	300×1300	250	20-90	16-105	300	6P 55	2210×2320×1723

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Max.Feeding size (mm)	Capacity (t/h)
PE 150×250	125	1-3
PE 200×300	180	2-6
PE 200×350	180	3-10
PE 250×400	210	5-21
PE 400×600	340	16-64
PE 500×750	425	40-110
PE 600×750	500	80-240
PE 600×900	500	50-160
PE 750×1060	630	110-320
PE 900×1200	750	220-380
PE 1200×1500	1020	400-1000
PE 1500×1800	1200	500-1200
PEX 150×750	120	8-25
PEX 250×750	210	13-35
PEX 250×1000	210	16-52
PEX 250×1200	210	20-61
PEX 300×1300	250	16-105

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Feeding opening size L×W（mm）	Maximum Feeding size（mm）	Adjustment range of discharge port（mm）	Capacity（t/h）	Power（KW）	Dimensions L×W×H（mm）
CJ80	800×510	410	40-175	55-335	4P 75	2660×2162×1800
CJ96	930×580	480	60-175	105-390	4P 90	2850×2180×1990
CJ100	1000×760	600	70-200	150-420	4P 110	3535×2350×2510
CJ106	1060×700	560	70-200	150-500	4P 110	3280×2510×2400
CJ116	1150×760	608	70-200	165-580	4P 132	3840×2440×2650
CJ120	1200×870	700	70-200	175-610	4P 160	3700×2790×2950
CJ125	1250×950	760	100-250	270-831	4P 160	4230×2820×3080
CJ130	1300×1000	800	100-250	270-831	4P 185	4220×2810×3330
CJ150	1400×1200	960	125-250	340-880	4P 200	5040×3445×3970
CJ160	1600×1200	960	150-300	430-1145	4P 250	5780×3460×3840
CJ180	1800×1200	960	150-300	500-1300	6P 315	5640×3780×3920
CJ200	2000×1500	1200	175-300	630-1435	6P 400	6600×4040×4580

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Maximum Feeding size（mm）	Capacity（t/h）
CJ80	410	55-335
CJ96	480	105-390
CJ100	600	150-420
CJ106	560	150-500
CJ116	608	165-580
CJ120	700	175-610
CJ125	760	270-831
CJ130	800	270-831
CJ150	960	340-880
CJ160	960	430-1145
CJ180	960	500-1300
CJ200	1200	630-1435

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Feeding opening size(mm)	Maximum feeding size （mm）	Adjustment range of discharge port（mm）	Processing capacity(t/h)	Power(kw)	Dimensions L×W×H（mm）
HDX72(57)	720×460	370	45-100	50-120	6P 55	2450×2160×1615
HDX86(69)	860×580	460	50-150	60-280	8P 75	3005×2392×1780
HDX98(751)	980×680	550	75-175	110-410	8P 110	3372×2530×2145
HDX110(912)	1100×850	680	100-200	170-550	6P 132	3616×2670×2515
HDX125	1250×950	760	125-225	280-750	8P 160	4214×2830×2887

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Feeding opening size(mm)	Maximum feeding size （mm）	Processing capacity(t/h)
HDX72(57)	720×460	370	50-120
HDX86(69)	860×580	460	60-280
HDX98(751)	980×680	550	110-410
HDX110(912)	1100×850	680	170-550
HDX125	1250×950	760	280-750

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Feed opening (mm)	Maximum feeding size (mm)	Adjust range of discharge opening (mm)	Processing capacity (t/h)	Power (kW)	Dimensions (L×W×H) (mm)
HJ308	800×510	410	40-175	55-335	4P75	2650×2162×1810
HJ309	930×580	480	60-175	105-390	4P90	2830×2190×1940
HJ310	1060×700	560	70-200	150-500	4P110	3280×2510×2400
HJ411	1045×840	700	75-225	150-565	6P 110	3640×2470×2660
HJ412	1200×830	690	75-275	165-790	6P 132	3682×2620×2765
HJ612	1200×1100	880	125-275	300-805	6P 160	4500×2650×3700
HJ613	1300×1130	900	125-300	330-960	6P 160	4700×2750×3990
HJ615	1500×1070	860	125-300	385-1085	6P 200	4800×3000×3620
HJ815	1500×1300	1040	150-300	480-1160	6P 200	5700×3000×4430

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Feed opening (mm)	Maximum feeding size (mm)	Processing capacity (t/h)
HJ308	800×510	410	55-335
HJ309	930×580	480	105-390
HJ310	1060×700	560	150-500
HJ411	1045×840	700	150-565
HJ412	1200×830	690	165-790
HJ612	1200×1100	880	300-805
HJ613	1300×1130	900	330-960
HJ615	1500×1070	860	385-1085
HJ815	1500×1300	1040	480-1160

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
