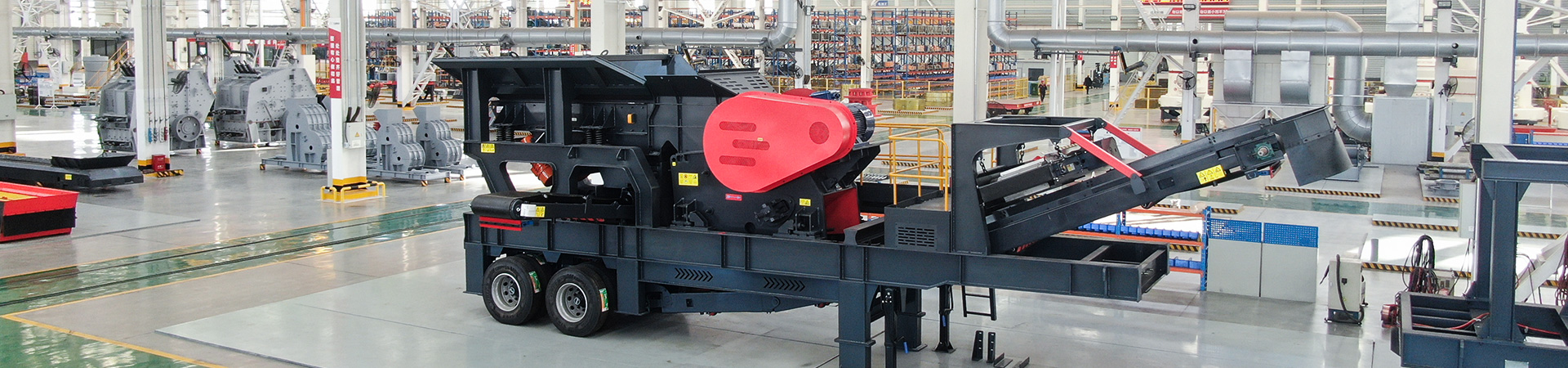

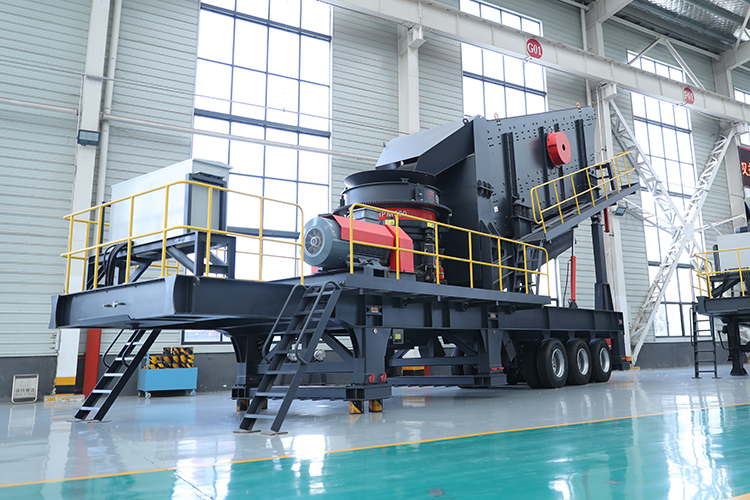

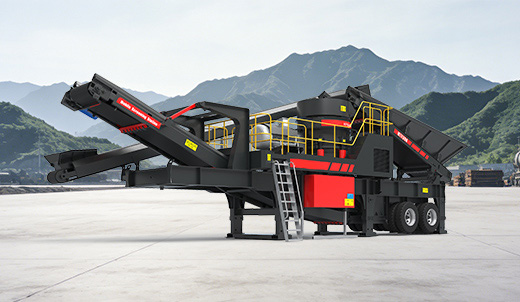

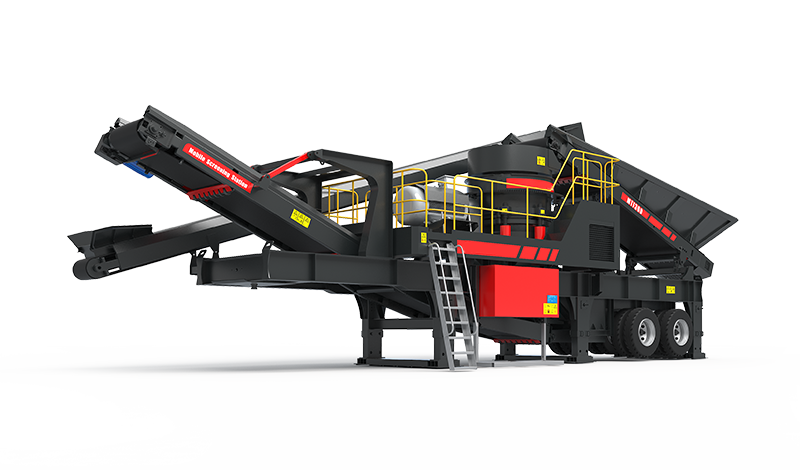

Mobile Cone Crusher Mobile Cone Crusher

Mobile Cone Crusher

  • Capacity:30-1000t/h
  • Feeding Size:≤800mm
  1. Home
  2. Product
  3. Mobile Cone Crusher

Brief Introduction

Mobile cone crusher is a portable fine crushing equipment, mainly used for medium and fine crushing of high-hardness materials such as basalt, granite, hard ore, and quartz. Unlike mobile jaw crusher which is for primary coarse crushing, it focuses on fine processing with uniform finished particle size and high grain shape quality. It is widely applied in mining, high-grade sand and gravel production, construction waste recycling, highway, railway and bridge construction, featuring flexible transfer, stable operation and high production efficiency, perfect for secondary and tertiary crushing.

  • Application area:Quarrying and Mining,Aggregate production,Construction waste recycling,Road construction & infrastructure,Concrete Batching Plant,Dry Mortar, Power Plant Desulfurization etc.
Get Price Now Leave Message
Mobile Cone Crusher

Material

  • river pebbles

  • construction waste

  • granite

  • limestone

  • basalt

  • iron ore

Product Advantage

  • Excellent Medium & Fine Crushing Effect

    Suitable for high-hardness materials like basalt and granite. Finished particles are uniform and have good grain shape, meeting high-standard engineering needs.

  • Stable & Durable

    Built with high-strength structure and quality wear parts, low failure rate, suitable for long-term hard material crushing.

  • Flexible Mobility & Easy Operation

    Integrated design allows free site transfer, simple control, low maintenance difficulty and cost.

  • Optional Power Systems

    Support full-hydraulic, diesel-electric hybrid and external power supply, customers can choose based on actual fuel and operating costs.

  • High Efficiency & Low Energy Consumption

    Optimized cavity ensures high working efficiency, low energy consumption, boosting overall production capacity.

  • Energy saving and environmental protection

    Adopt famous brand engines and advanced hydraulic system meeting latest emission standards, with noise and dust reduction technology for eco-friendly operation.

Product Photos

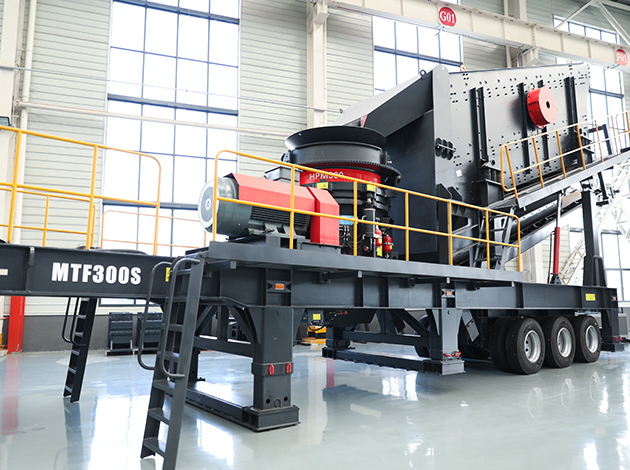

  • Production site

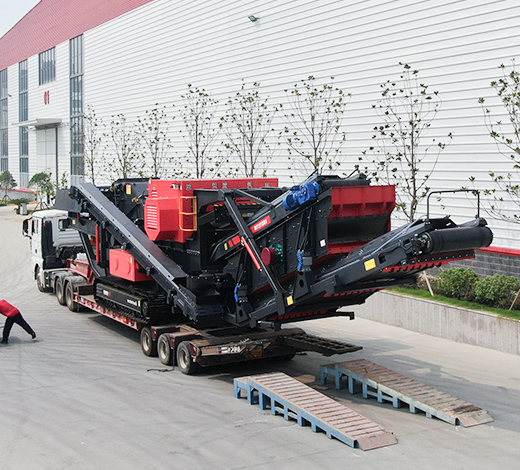

  • Delivery Site
  • Videos

Image 1

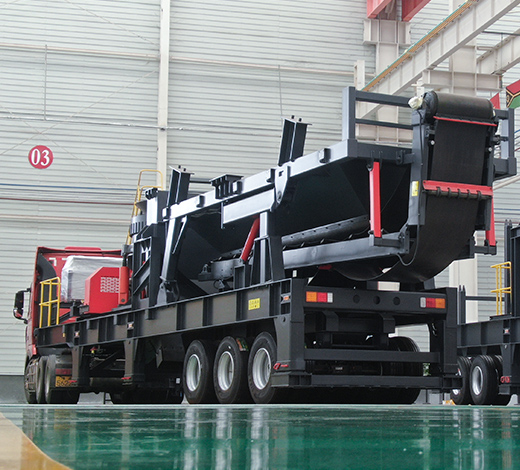

Image 2

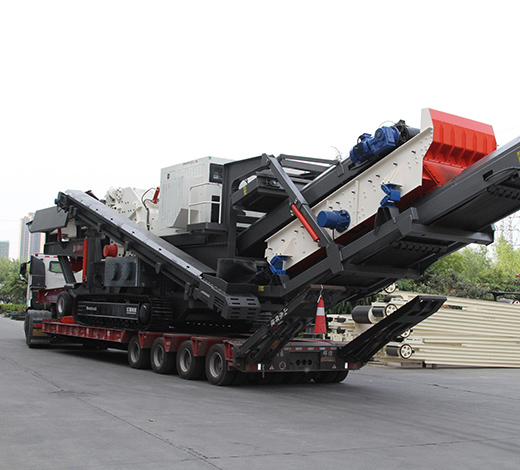

Image 3

Customer reviews

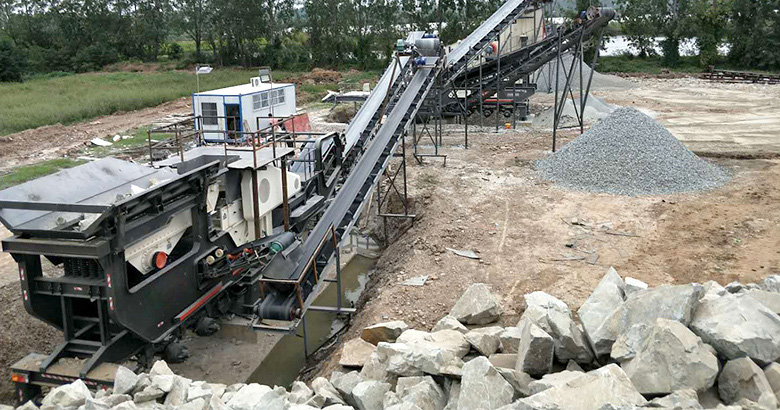

Philippines Gravel Crushing Project

  • Capacity: 150TPH

  • Material: River Stone & Granite

Avatar Noah Johnson★★★★★

Philippines Gravel Crushing Project

This mobile crusher works very stably in our open-pit gravel site, no frequent breakdowns. It’s easy to move between different working areas, and the finished gravel size is even. It totally meets our project demand, and we are satisfied with its efficiency.

60m agoPhilippines

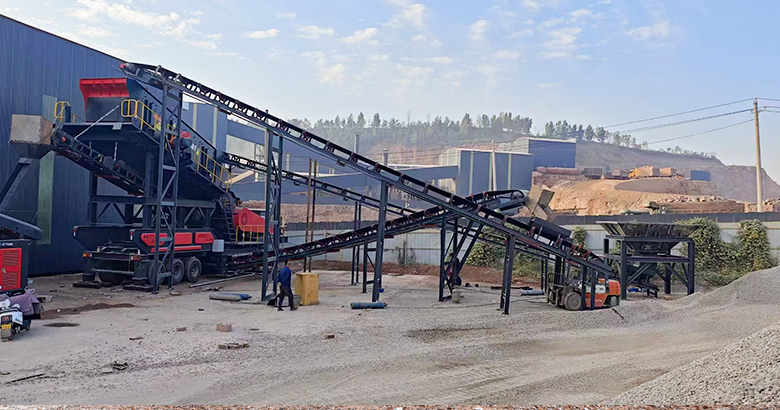

Australia Construction Waste Recycling Project

  • Capacity: 120TPH

  • Material: Construction Waste

Avatar Jack Martin★★★★★

Australia Construction Waste Recycling Project

The machine meets Australian environmental standards perfectly, low noise and little dust. Operation is simple, our workers can handle it quickly. It helps us recycle construction waste efficiently, saving a lot of cost for our company.

24m agoAustralia

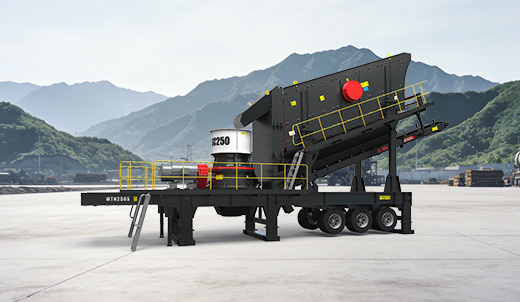

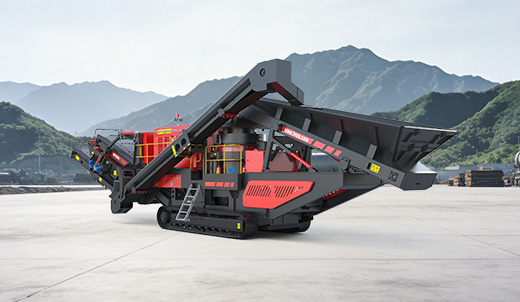

Related Products

Technical Parameter

SPECIFICATIONS WT 200/S WT 300/S WT 160/S WT 250
Feeding Device Maximum Feeding Size(mm) 185 200 200 215
Feeding Height(mm) 2600 2700 2700 2900
Hopper Volume(m³) 5 6 6 6
Feeding Conveyor W×L(mm) 1000×5500 1200×6000 1200×6000 1200×6000
Mainframe of Crusher Model HPM200 HPM300 SC160 SC250
Feeding Opening size(mm) 210 230 230 250
Weight(t) 10.4 15.8 11 16
Drive Mode Hydraulic V-belt Direct Drive Direct Drive Direct Drive
Main Belt Conveyor W×L(mm) 1000×10500 1200×11500 1200×11000 1200×12000
Discharging Height(mm) 3300 3500 3500 3500
Screening System Type Single-deck Vibrating Screen Single-deck Vibrating Screen Single-deck Vibrating Screen
Screening Surface Size(mm) 1500×3000 1500×3600 1500×3000
Size of Return Belt Conveyor(mm) 500×8000 500×9000 500×8000
Size of Fine Product Conveyor(mm) 1200×5000 1200×5500 1200×5000
Fine Product ConveyorDischarging Height(mm) 3000 3200 3000
Powertrain Driving Mechanism of Crusher Diesel-Hydraulic Drive Diesel-Direct Drive Diesel-Direct Drive Diesel-Direct Drive
Engine Cummins 264kW Cummins 391kW Cummins 335kW Cummins 391kW
Overall Dimension of Transportation Length(mm) 16400 17800 17000 15500
Width(mm) 3300 3400 3300 3300
Height(mm) 3700 3700 3700 3800
Weight(t) 35/41 45/54 38/45 46

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

WT 200/S and WT 300/S

SPECIFICATIONS WT 200/S WT 300/S
Feeding Device Maximum Feeding Size(mm) 185 200
Feeding Height(mm) 2600 2700
Hopper Volume(m³) 5 6
Feeding Conveyor W×L(mm) 1000×5500 1200×6000
Mainframe of Crusher Model HPM200 HPM300
Feeding Opening size(mm) 210 230
Weight(t) 10.4 15.8
Drive Mode Hydraulic V-belt Direct Drive
Main Belt Conveyor W×L(mm) 1000×10500 1200×11500
Discharging Height(mm) 3300 3500
Screening System Type Single-deck Vibrating Screen Single-deck Vibrating Screen
Screening Surface Size(mm) 1500×3000 1500×3600
Size of Return Belt Conveyor(mm) 500×8000 500×9000
Size of Fine Product Conveyor(mm) 1200×5000 1200×5500
Fine Product ConveyorDischarging Height(mm) 3000 3200
Powertrain Driving Mechanism of Crusher Diesel-Hydraulic Drive Diesel-Direct Drive
Engine Cummins 264kW Cummins 391kW
Overall Dimension of Transportation Length(mm) 16400 17800
Width(mm) 3300 3400
Height(mm) 3700 3700
Weight(t) 35/41 45/54

WT 160/S and WT 250

SPECIFICATIONS WT 160/S WT 250
Feeding Device Maximum Feeding Size(mm) 200 215
Feeding Height(mm) 2700 2900
Hopper Volume(m³) 6 6
Feeding Conveyor W×L(mm) 1200×6000 1200×6000
Mainframe of Crusher Model SC160 SC250
Feeding Opening size(mm) 230 250
Weight(t) 11 16
Drive Mode Direct Drive Direct Drive
Main Belt Conveyor W×L(mm) 1200×11000 1200×12000
Discharging Height(mm) 3500 3500
Screening System Type Single-deck Vibrating Screen
Screening Surface Size(mm) 1500×3000
Size of Return Belt Conveyor(mm) 500×8000
Size of Fine Product Conveyor(mm) 1200×5000
Fine Product ConveyorDischarging Height(mm) 3000
Powertrain Driving Mechanism of Crusher Diesel-Direct Drive Diesel-Direct Drive
Engine Cummins 335kW Cummins 391kW
Overall Dimension of Transportation Length(mm) 17000 15500
Width(mm) 3300 3300
Height(mm) 3700 3800
Weight(t) 38/45 46

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
