Mobile crushing and screening plant

Mobile crushing and screening plant

  • Feeding size:480-850mm
  • Processing caulacity:45-500t/h
  • Aulullied material:river ulebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, etc.
  • Aulullication area:mining, coal, garbage and construction waste recycling, earthwork, urban infrastructure, roads or construction sites and other venues oulerations.
Get Price Now Leave Message

what can i do for you

40 Years history production base and exporter

Contact Us ( sales@sinofote.com )

The mobile crushing and screening plant, as a type of mobile crushing machine, is widely used in the industries of mining crushing, construction waste recycling, construction waste production, highway and railway construction and bridge construction.

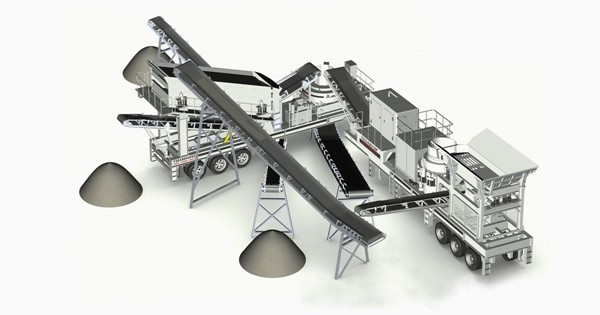

Combination operation with multiple machines

The rubber-tyred mobile crushing stations made by Fote, including the mobile crushing machine, mobile quarry plant and the mobile crushing and screening plant, are applied in mining, coal and cement industry to crush the hard materials, reuse the construction waste, complete the earth and stone work, urban infrastructure, highway and construction site, handle the topsoil and other materials, separate sticky concrete aggregate, assist the construction and explosion industry, screen the crushed materials in the quarrying industry, as well as finish the stripping crushing of the cement concrete and to crush again the bituminous concrete.

mobile crushing and screening

Technical Parameters

Model Y3S23G93E46Y55B
Transportation length(mm) 15200
Transportation width(mm) 2900
Transportation height(mm) 4350
Crusher1 PE400×600
Crusher2 PYB900
Vibrating feeder GZD960×3800
Weight(t) 45
Vibrating screen 3YZS1237
Belt conveyor above screen B500×14M
Belt under vibrating screen B650×6M
Main belt conveyor B650×9M
Double side-opening belt conveyor B500×4M
