Mobile Jaw Crusher Mobile Jaw Crusher

Mobile Jaw Crusher

  • Capacity:30-1000t/h
  • Feeding Size:≤800mm
  1. Home
  2. Product
  3. Mobile Jaw Crusher

Brief Introduction

Mobile jaw crusher is a highly integrated portable crushing equipment, combining jaw crushing host, feeding, conveying and screening system in one. It features flexible mobility, strong adaptability to various working conditions, and is specially designed for on-site crushing of ore, rock, construction waste and other materials. With stable performance, high crushing ratio and easy operation, it is widely used in mining, construction, highway, railway and other engineering fields, suitable for both open-pit operation and mobile construction sites, helping users achieve efficient and low-cost on-site crushing production.

  • Application area:Quarrying and Mining,Aggregate production,Construction waste recycling,Road construction & infrastructure,Concrete Batching Plant,Dry Mortar, Power Plant Desulfurization etc.
Get Price Now Leave Message

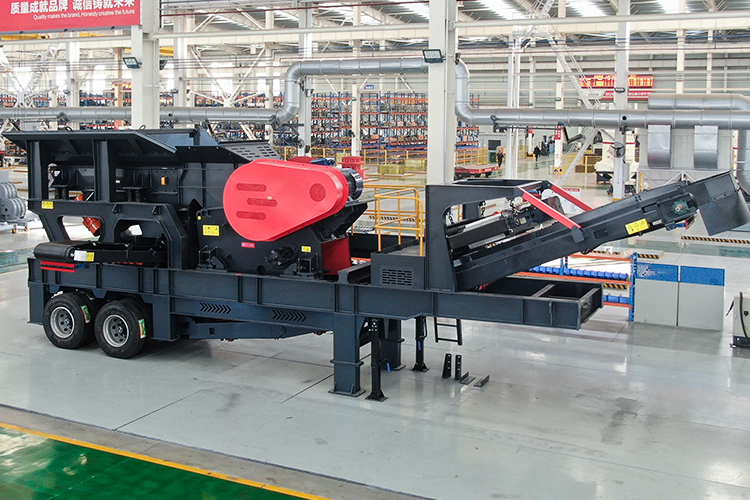

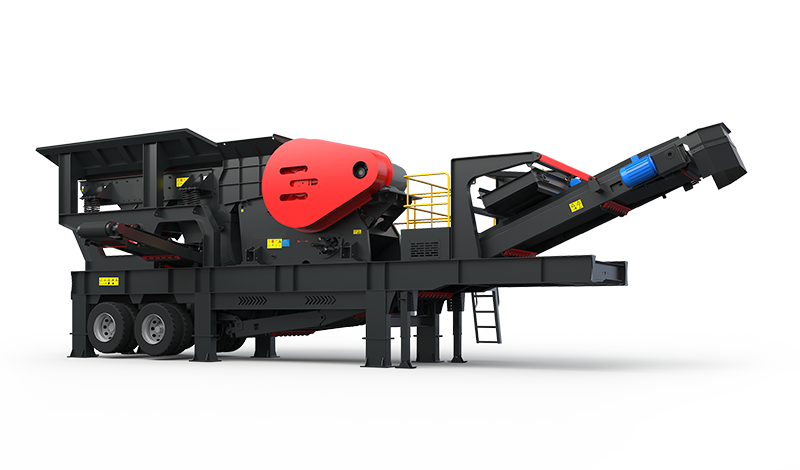

Mobile Jaw Crusher

Material

  • river pebbles

  • construction waste

  • granite

  • limestone

  • basalt

  • iron ore

Product Advantage

  • High Integration & Flexible Mobility

    Integrated design combines main crusher, feeder and conveyor, no complex installation needed. Flexible for site transfer, ideal for on-site mobile crushing.

  • High Crushing Efficiency & Large Crushing Ratio

    Optimized jaw crusher host with strong crushing force and large ratio, efficient for hard materials like ore and granite. Stable running, high productivity.

  • Stable Performance & High Reliability

    High-strength steel body, quality wear parts and brand electrical components. Strict quality control ensures stable long-term operation and low failure rate.

  • Safe & Environmentally Friendly

    Full safety guards and emergency stop for operator and equipment safety. Noise and dust reduction design meets international environmental standards.

  • Optional Power Systems

    Support full-hydraulic, diesel-electric hybrid and external power supply, customers can choose based on actual fuel and operating costs.

Product Photos

  • Production site
  • Delivery Site
  • Videos

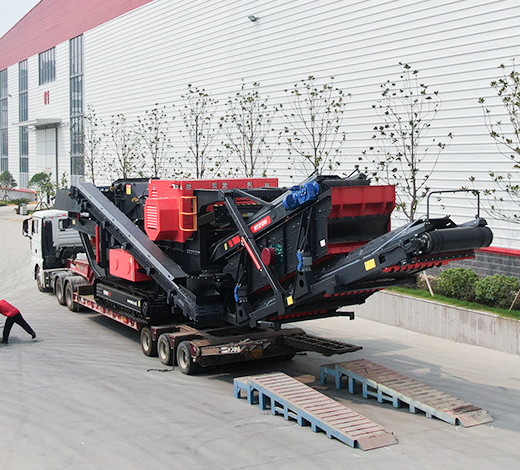

Image 1

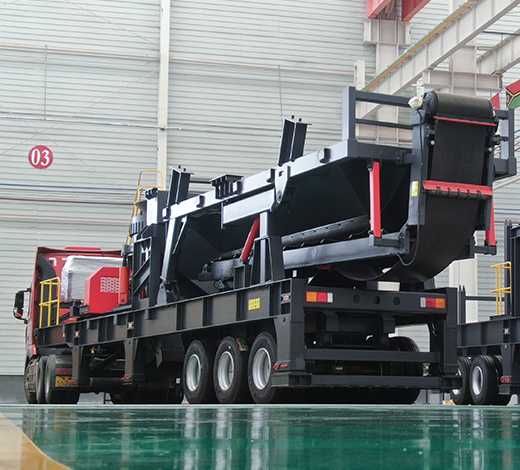

Image 2

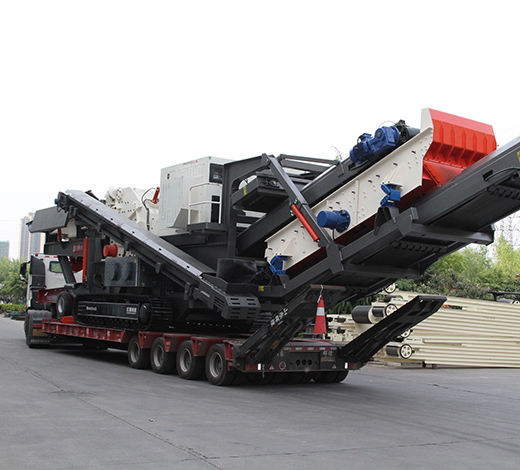

Image 3

Customer reviews

Philippines Gravel Crushing Project

  • Capacity: 150TPH

  • Material: River Stone & Granite

Avatar Noah Johnson★★★★★

Philippines Gravel Crushing Project

This mobile crusher works very stably in our open-pit gravel site, no frequent breakdowns. It’s easy to move between different working areas, and the finished gravel size is even. It totally meets our project demand, and we are satisfied with its efficiency.

240m agoPhilippines

Australia Construction Waste Recycling Project

  • Capacity: 120TPH

  • Material: Construction Waste

Avatar Jack Martin★★★★★

Australia Construction Waste Recycling Project

The machine meets Australian environmental standards perfectly, low noise and little dust. Operation is simple, our workers can handle it quickly. It helps us recycle construction waste efficiently, saving a lot of cost for our company.

4m agoAustralia

Related Products

Technical Parameter

SPECIFICATIONS WT96 WT106 WT120
Feeding Device Maximum Feeding Size(mm) 480 560 700
Feeding Height(mm) 3700 4000 4300
Hopper Volume(m³) 5 6.5 8
Vibrating Feeder W×L(mm) 950×3800 1060×4200 1160×4500
Side Conveyor W×L(mm) 500×4000 650×4000 650×4500
Discharging Height(mm) 2200 2400 2500
Mainframe of Crusher Model CJ96 CJ106 CJ120
Feeding Opening size(mm) 930×580 1060×700 1200×870
Weight(t) 10.3 14.5 26
Drive Mode Hydraulic V-belt Hydraulic V-belt Hydraulic V-belt
Main Belt Conveyor W×L(mm) 800×10500 1000×11000 1200×11500
Discharging Height(mm) 3300 3600 4000
Powertrain Driving Mechanism of Crusher Diesel-Hydraulic Drive Diesel-Hydraulic Drive Diesel-Hydraulic Drive
Engine Cummins 163kW Cummins 264kW Cummins 264kW
Overall Dimension of Transportation Length(mm) 13500 15100 16000
Width(mm) 2800 2800 3100
Height(mm) 3500 3500 3800
Weight(t) 32 42 60

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

WT96 and WT106

SPECIFICATIONS WT96 WT106
Feeding Device Maximum Feeding Size(mm) 480 560
Feeding Height(mm) 3700 4000
Hopper Volume(m³) 5 6.5
Vibrating Feeder W×L(mm) 950×3800 1060×4200
Side Conveyor W×L(mm) 500×4000 650×4000
Discharging Height(mm) 2200 2400
Mainframe of Crusher Model CJ96 CJ106
Feeding Opening size(mm) 930×580 1060×700
Weight(t) 9.8 14.5
Drive Mode Hydraulic V-belt Hydraulic V-belt
Main Belt Conveyor W×L(mm) 800×10500 1000×11000
Discharging Height(mm) 3300 3600
Powertrain Driving Mechanism of Crusher Diesel-Hydraulic Drive Diesel-Hydraulic Drive
Engine Cummins 163kW Cummins 264kW
Overall Dimension of Transportation Length(mm) 13500 15100
Width(mm) 2800 2800
Height(mm) 3500 3500
Weight(t) 32 42

WT120

SPECIFICATIONS WT120
Feeding Device Maximum Feeding Size(mm) 700
Feeding Height(mm) 4300
Hopper Volume(m³) 8
Vibrating Feeder W×L(mm) 1160×4500
Side Conveyor W×L(mm) 650×4500
Discharging Height(mm) 2500
Mainframe of Crusher Model CJ120
Feeding Opening size(mm) 1200×870
Weight(t) 26
Drive Mode Hydraulic V-belt
Main Belt Conveyor W×L(mm) 1200×11500
Discharging Height(mm) 4000
Powertrain Driving Mechanism of Crusher Diesel-Hydraulic Drive
Engine Cummins 264kW
Overall Dimension of Transportation Length(mm) 16000
Width(mm) 3100
Height(mm) 3800
Weight(t) 60

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
