Mobile Stone Crusher Mobile Stone Crusher

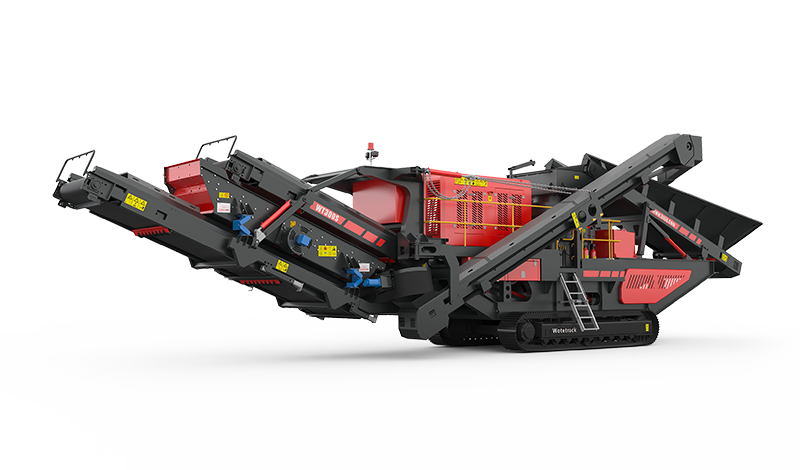

Mobile Stone Crusher

  • Capacity:30-1000t/h
  • Feeding Size:≤800mm
  1. Home
  2. Product
  3. Mobile Stone Crusher

Brief Introduction

Mobile Crusher (Mobile Crushing Station) is an integrated intelligent equipment integrating crushing, screening and conveying, mainly including wheel-mounted and crawler-mounted models. The wheel-mounted type features semi-trailer traction for fast relocation and no foundation needed, ideal for flat areas; the crawler-mounted type boasts self-propelled walking and remote control, adapting to complex rugged terrains. It efficiently processes various materials like granite and construction waste, widely applied in multiple fields. With core strengths of cost reduction, on-site processing and high efficiency, it is a cost-effective revenue-generating equipment.

  • Application area:Quarrying and Mining,Aggregate production,Construction waste recycling,Road construction & infrastructure,Concrete Batching Plant,Dry Mortar, Power Plant Desulfurization etc.
Get Price Now Leave Message
Mobile Stone Crusher

Material

  • river pebbles

  • construction waste

  • granite

  • limestone

  • basalt

  • iron ore

Product Advantage

  • High Productivity

    Main machines feature high-reliability flagship design. Optimized craftsmanship and high-quality parts ensure stable operation, high operating rate and higher efficiency.

  • High Reliability

    40+ years of mining equipment manufacturing experience, professional technical team, strict quality inspection and original high-quality parts guarantee durable and reliable equipment.

  • Safety

    Equipped with full safety guards, locking devices, one-button auto start/stop and emergency stop button, fully protecting personnel and equipment.

  • Simple operation and maintenance

    One-button start/stop, intuitive control, user-friendly console and easy access for routine maintenance.

  • Energy saving and environmental protection

    Adopt famous brand engines and advanced hydraulic system meeting latest emission standards, with noise and dust reduction technology for eco-friendly operation.

  • Optional Power Systems

    Support full-hydraulic, diesel-electric hybrid and external power supply, customers can choose based on actual fuel and operating costs.

Product Photos

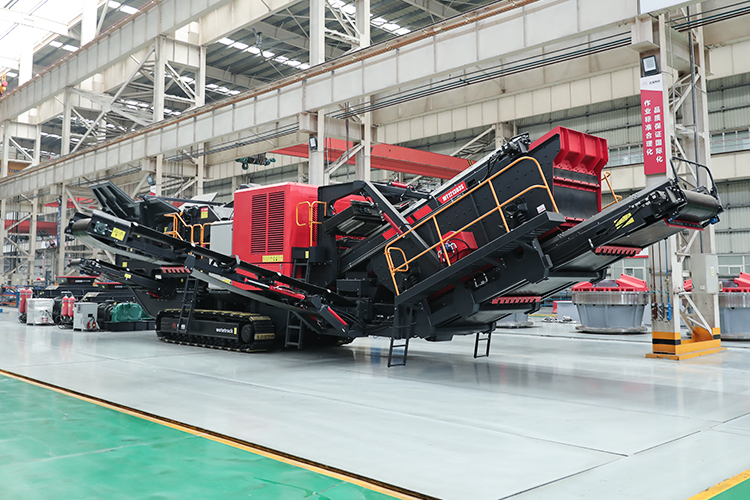

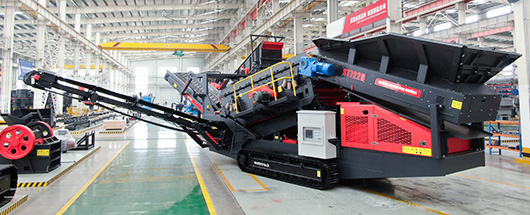

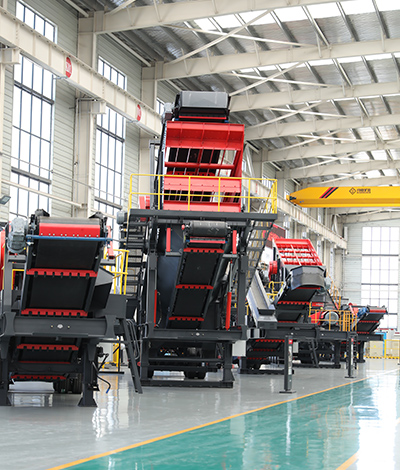

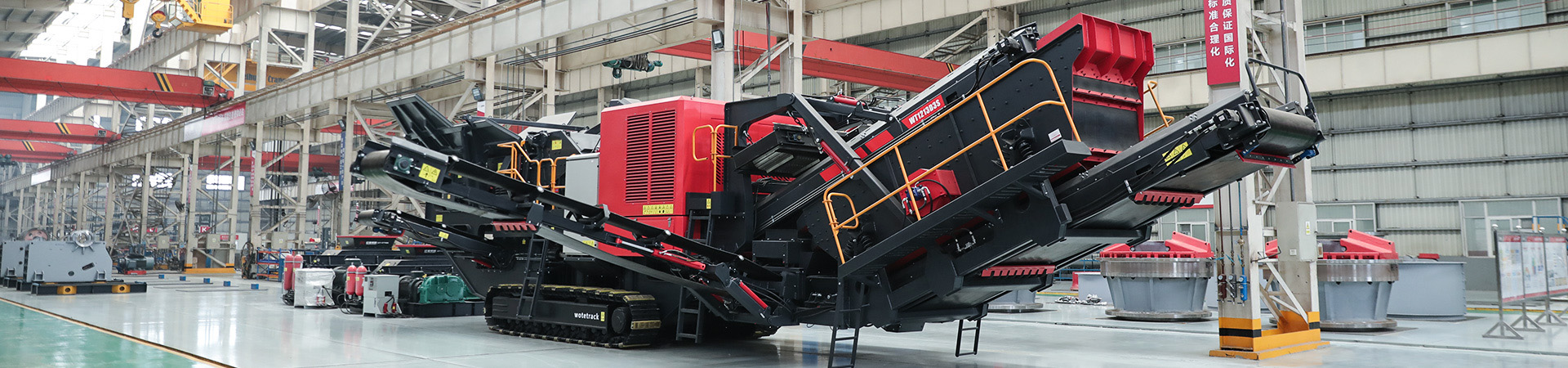

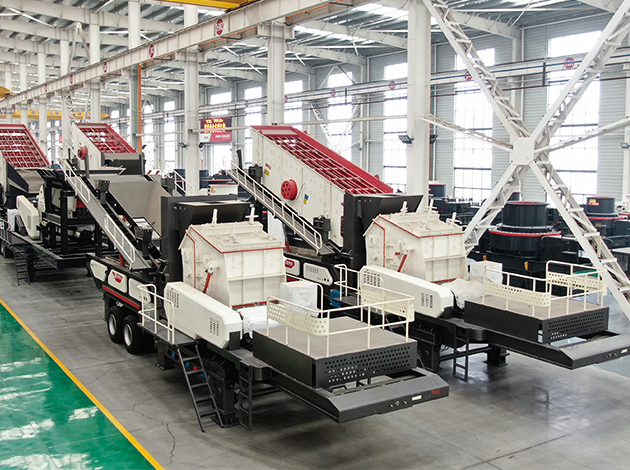

  • Production site

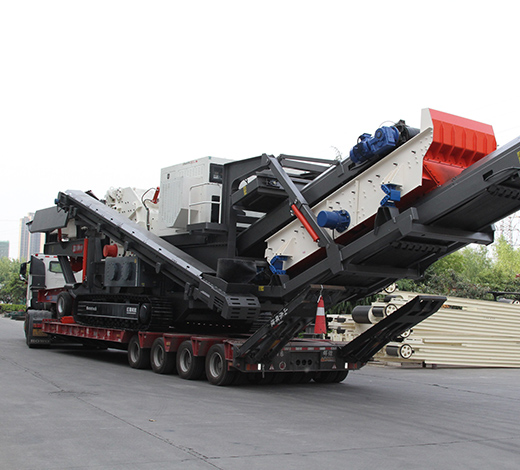

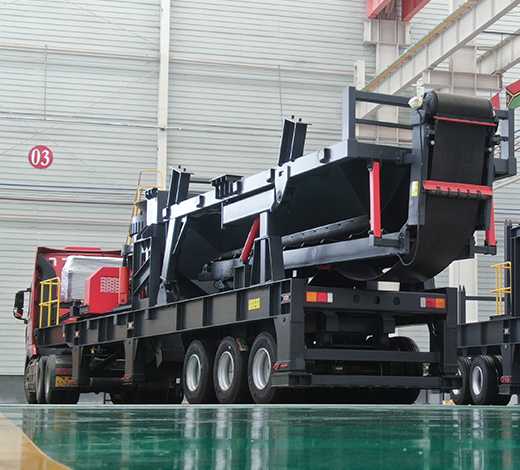

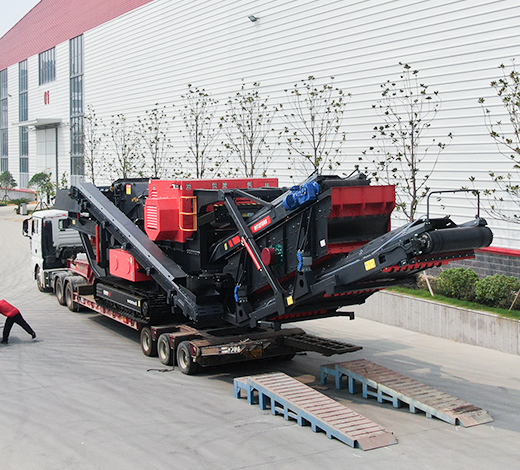

  • Delivery Site
  • Videos

Image 1

Image 2

Image 3

Customer reviews

Philippines Gravel Crushing Project

  • Capacity: 150TPH

  • Material: River Stone & Granite

Avatar Noah Johnson★★★★★

Philippines Gravel Crushing Project

This mobile crusher works very stably in our open-pit gravel site, no frequent breakdowns. It’s easy to move between different working areas, and the finished gravel size is even. It totally meets our project demand, and we are satisfied with its efficiency.

50m agoPhilippines

UAE Construction Waste Recycling Project

  • Capacity: 120TPH

  • Material: Construction Waste

Avatar Benjamin Miller★★★★★

UAE Construction Waste Recycling Project

The equipment is easy to operate and transfer, low noise and little dust. It helps us recycle construction waste efficiently, saving a lot of daily costs. It fully meets the local environmental inspection standards, so we don't worry about relevant problems.

11m agoUAE

Related Products

Technical Parameter

MOBLIE IMPACT CRUSHER TECHICAL PARAMETERS

Model FTM938F1210 FTM938FW1214 FTM1149F1315 FTM1349HD1110 FTM1349HD1315
Transportation Length（mm） 12000 12000 13900 15450 15450
Transportation Width（mm） 2550 2550 2900 2950 2950
Transportation Height（mm） 3900 3900 4450 4500 4500
Maximum Length（mm） 12500 12500 13900 15450 15450
Maximum Width（mm） 3250 3260 3250 3250 3250
Maximum Height（mm） 5100 5200 5200 5200 5200
Weight（t） 39 44 54 62 62
Crusher Model PF-1210 PF-1214 PF-1315 HD1110 HD1315
The Maximum Feeding Size（mm） 350 350 500 400 700
Production Capacity（t/h） 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3.2M B500×3.2M B650×4M B650×4M B650×4M
Genset(Optional) （kw） 320 320 400 320 440
Iron Separator (Optional)（kw） RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12

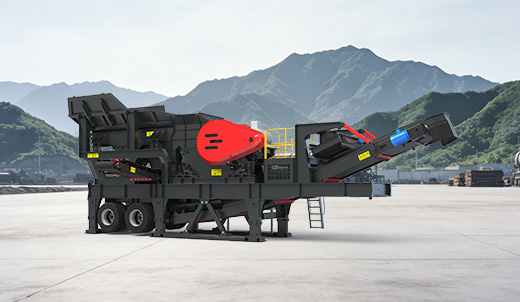

MOBLIE JAW CRUSHER TECHNICAL PARAMETERS

Model FTM938HD80 FTM1149HD98 FTM1349HD110 FTM1349HD125
Transportation Length(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Length(mm) 12500 14000 16100 16700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dual-axial Dual-axial Dual-axial Dual-axial
Jaw Crusher HD80 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge Opening Size(mm) 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Model ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5M B1000×9.5M B1000×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3M B650×3.5M B650×4M B650×4M
Genset(Optional) (kw) 200 250 270 400
Iron Separator (Optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12



MOBLIE IMPACT CRUSHER TECHNICAL PARAMETERS

Model The Maximum
Feeding Size（mm)		 Production Capacity
（t/h）
FTM938F1210 350 70-130
FTM938FW1214 350 100-180
FTM1149F1315 500 130-250
FTM1349HD1110 400 112
FTM1349HD1315 700 280

MOBLIE JAW CRUSHER TECHNICAL PARAMETERS

Model Maximum Feeding
Size(mm)		 Capacity(t/h)
FTM938HD80 500 85-275
FTM1149HD98 550 110-350
FTM1349HD110 660 215-510
FTM1349HD125 800 280-650
