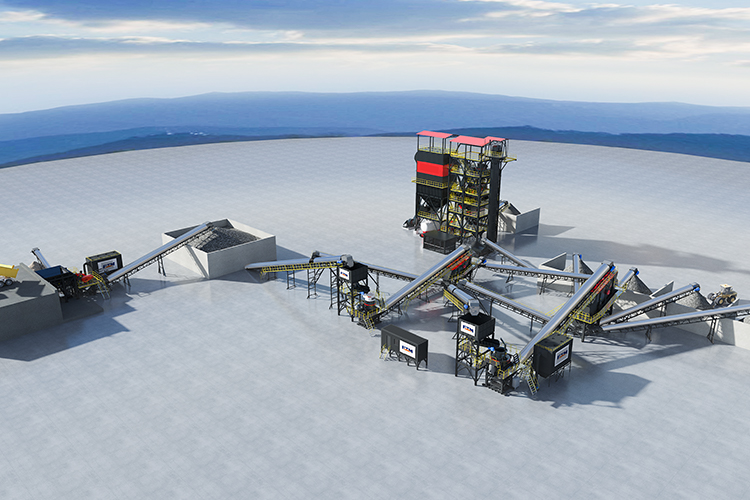

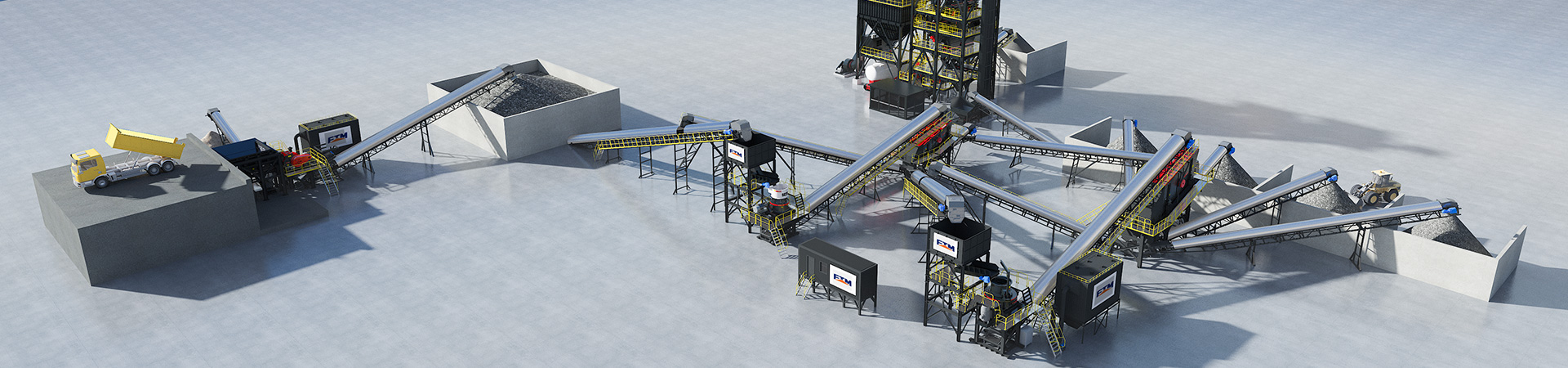

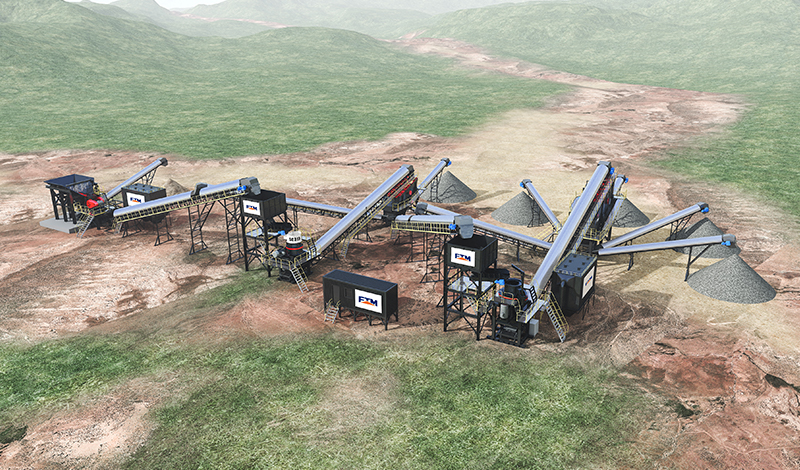

MP Series Modular Factory MP Series Modular Factory

MP Series Modular Factory

  • Capacity:65-500t/h
  • Feeding Size:≤800mm
  1. Home
  2. Product
  3. MP Series Modular Factory

Brief Introduction

MP module factory is the latest all-round solution for aggregate crushing and screening, with the latest international design concept. No matter your raw materials, site conditions, finished product requirements or production cycle, the design concept of MP factory combined with the high-quality host of our company can meet your budget and specific requirements.

Application area：Quarrying and Mining,Aggregate production,Construction waste recycling,Road construction & infrastructure,Concrete Batching Plant,Dry Mortar, Power Plant Desulfurization etc.

Get Price Now Leave Message
MP Series Modular Factory

Material

  • river pebbles

  • construction waste

  • granite

  • limestone

  • basalt

  • iron ore

Product Advantage

  • Short construction period

    All modular steel structures are factory-produced, and the production is fast, and only a small amount of concrete foundation is needed on site, which shortens the construction period and realizes the quick start.

  • Convenience and flexibility

    The modular structure basically adopts the bolt mode, which is easy to assemble on the spot and greatly shortens the construction period; in addition, this structure is also easy to be loaded into containers for transportation, reducing freight expenses.

  • Low investment cost

    All the structural factory production only needs on-site installation, which saves the cost of personnel organization and corner and edge costs.

  • Reduce site area

    The full package is modeled in 3D to provide customers with the optimal solution under limited site conditions, and when there are no site conditions, the optimal solution can also effectively reduce your investment.

Product Photos

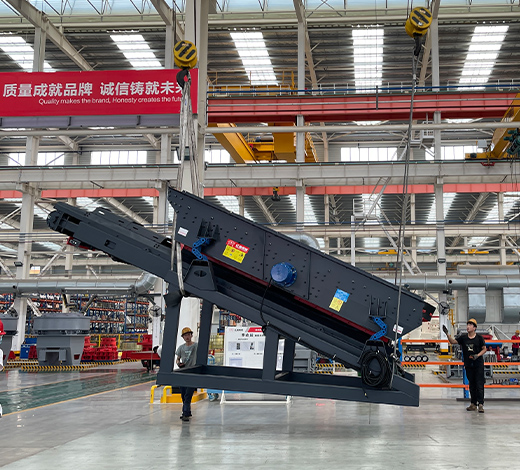

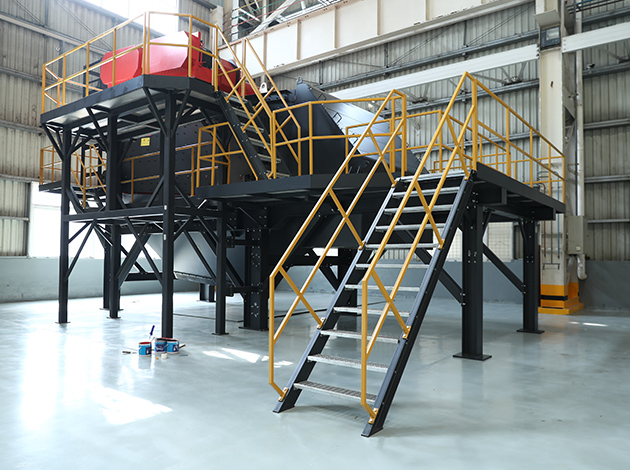

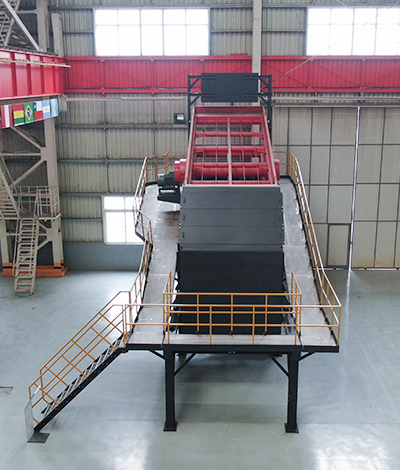

  • Production site

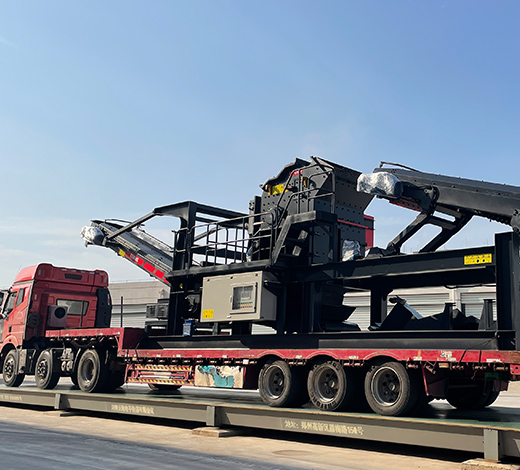

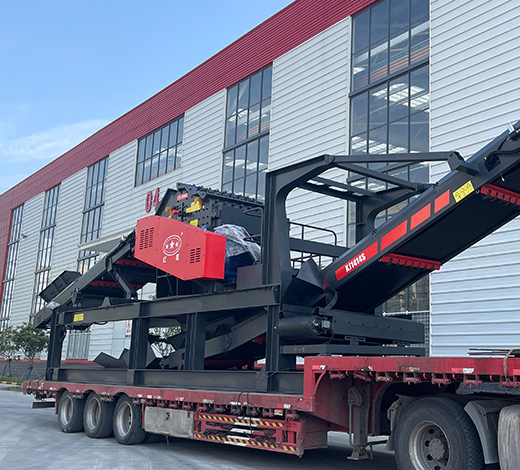

  • Delivery Site
  • Videos

Image 1

Image 2

Image 3

Customer reviews

Philippines Gravel Crushing Project

  • Capacity: 150TPH

  • Material: River Stone & Granite

Avatar Noah Johnson★★★★★

Philippines Gravel Crushing Project

This mobile crusher works very stably in our open-pit gravel site, no frequent breakdowns. It’s easy to move between different working areas, and the finished gravel size is even. It totally meets our project demand, and we are satisfied with its efficiency.

9m agoPhilippines

Australia Construction Waste Recycling Project

  • Capacity: 120tph

  • Material: Construction Waste

Avatar Jack Martin★★★★★

Australia Construction Waste Recycling Project

The machine meets Australian environmental standards perfectly, low noise and little dust. Operation is simple, our workers can handle it quickly. It helps us recycle construction waste efficiently, saving a lot of cost for our company.

33m agoAustralia

Related Products

Technical Parameter

Production line code Maximum Feed Size
(mm)		 Capacity (t/h) Main Configuration Total Power
(kw)		 Floor space
(m)		 Note
0-5mm 0-20mm 0-32mm Primary Crushing Secondary/tertiary Crushing Screening
Hard rock MPH1 500 / 120 150 MU-HDX86 MU-SC160 MU-HX2165 373 45×45
/ 130 160 MU-HDX86 MU-SC160
MU-HVI0926		 MU-HX1545
MU-HX2165		 717 50×70 plastic
100 / / MU-HDX86 MU-SC160
MU-VSIA7500		 MU-HX1855
MU-HX2465		 859 50×70 Sand making
MPH2 500 / 180 220 MU-CJ96 MU-SC250 MU-HX2465 490 50×50
/ 190 230 MU-CJ96 MU-SC250
MU-VSIA7400		 MU-HX2165
MU-HX2465		 963 50×70 plastic
200 / / MU-CJ96 MU-SC250
MU-VSIA7800		 MU-HX2165
MU-HX3075		 1367 50×70 Sand making
MPH3 600 / 230 350 MU-CJ106 MU-SC315 MU-HX2765 603 60×60
/ 240 360 MU-CJ106 MU-SC315
MU-VSIA7630		 MU-HX2165
MU-HX3065		 1260 60×70 plastic
MPH5 700 / 400 520 MU-CJ120 MU-SC315S
2xMU-SC250		 MU-HX2465
2×MU-HX2165		 1290 70×80
Medium hard
Soft rock		 MPM1 500 / 120 160 MU-HDX86 MU-CI1110 MU-HX1855 363 45×45
MPM2 500 / 160 210 MU-CJ96 MU-CI1213 MU-HX2165 449 50×50
MPM3 600 / 210 300 MU-CJ106 MU-CI1316 MU-HX2465 535 60×60
MPM4 700 / 320 400 MU-CJ120 MU-CI1521 MU-HX3085 750 60×70

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Production line code Maximum Feed Size
(mm)		 Capacity
(t/h)
0-5mm 0-20mm 0-32mm
Hard rock MPH1 500 / 120 150
/ 130 160
100 / /
MPH2 500 / 180 220
/ 190 230
200 / /
MPH3 600 / 230 350
/ 240 360
MPH5 700 / 400 520
Medium hard
Soft rock		 MPM1 500 / 120 160
MPM2 500 / 160 210
MPM3 600 / 210 300
MPM4 700 / 320 400

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
