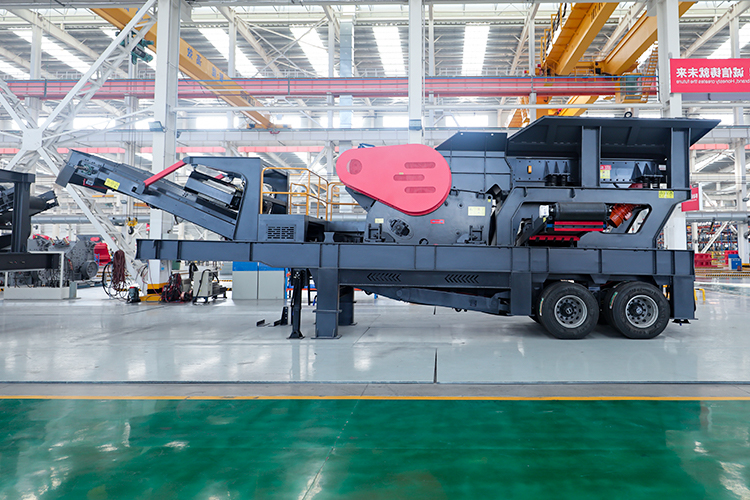

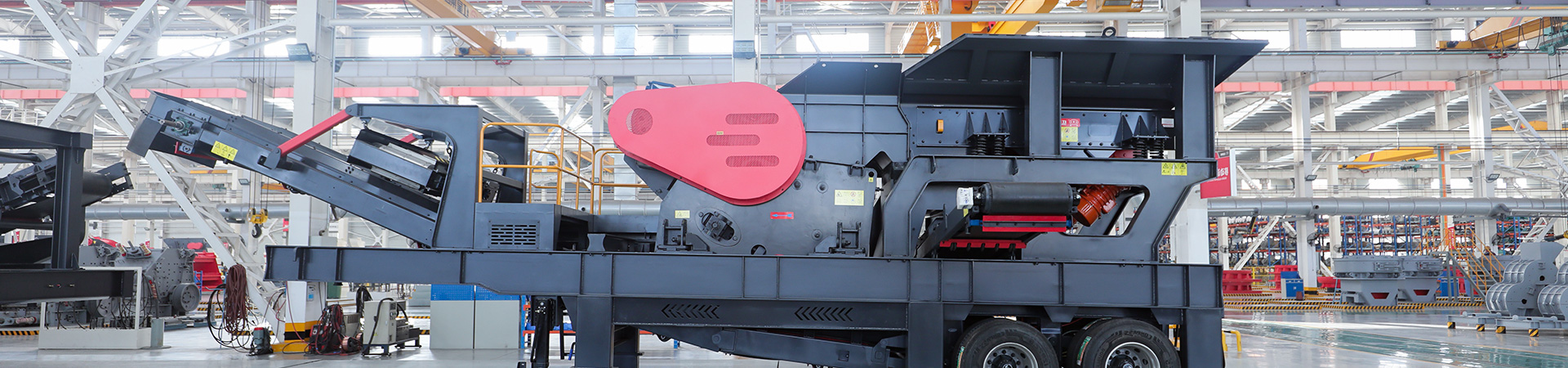

MTF Wheel Type Mobile Crushing And Screening Plant MTF Wheel Type Mobile Crushing And Screening Plant

MTF Wheel Type Mobile Crushing And Screening Plant

  • Capacity:50-300t/h
  • Feeding Size:≤800mm
  1. Home
  2. Product
  3. MTF Wheel Type Mobile Crushing And Screening Plant

Brief Introduction

MTF series wheeled mobile production line comprehensively covers the application of hard rock, soft rock, and construction waste treatment with the processing demand of 100 - 300 tons per hour.The overall layout of the mobile station is beautiful, fine structure; equipped with the latest technology of the host, stable and reliable performance, high output. A large number of wheeled-mounted belt conveyor, eliminating the need for on-site transfer of material belt conveyor, the work site is neat and organized; each mobile station is equipped with track plate device to ensure that the equipment arrives at the site for quick installation and commissioning, reducing the basic preparation time.

  • Application area:Quarrying and Mining,Aggregate production,Construction waste recycling,Road construction & infrastructure,Concrete Batching Plant,Dry Mortar, Power Plant Desulfurization etc.
Get Price Now Leave Message
MTF Wheel Type Mobile Crushing And Screening Plant

Material

  • river pebbles

  • construction waste

  • granite

  • limestone

  • basalt

  • iron ore

Product Advantage

  • Modular design

    Modular, universal design, the same processing capacity of the equipment can achieve maximum versatility, if the production material is adjusted, by changing the main machine can be quickly produced.

  • Humanized maintenance platform

    Maintenance platform front and rear connecting design, inclined up and down escalator, wider pedal, more safe and convenient, part of the model increases the tail small ladder, convenient for personnel inspection and maintenance.

  • Vehicle-mounted belt conveyor

    Each unit of the mobile production line is equipped with a truck-mounted belt conveyor, which can be transported without disassembly, and can start working quickly, neatly and orderly when arriving at the site.

  • Eliminates basic installation

    Each equipment of the mobile production line is equipped with an outrigger track plate unit that reduces foundation investment, which is stowed for transportation and transit and can be quickly supported on arrival at the site.

  • In-vehicle electronic control system

    Equipped with independent electric control system, easy to operate, the cables of each equipment have been connected before leaving the factory, no need to disassemble for transportation, and the whole machine can be debugged quickly when arriving at the site.

  • Large volume silo design

    The large-capacity silo is convenient for feeding, and at the same time, it can store certain materials to ensure the uniformity and stability of feeding.

Product Photos

  • Production site
  • Delivery Site
  • Videos

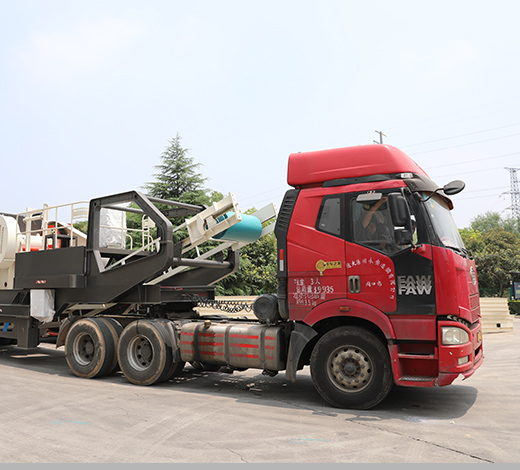

Image 1

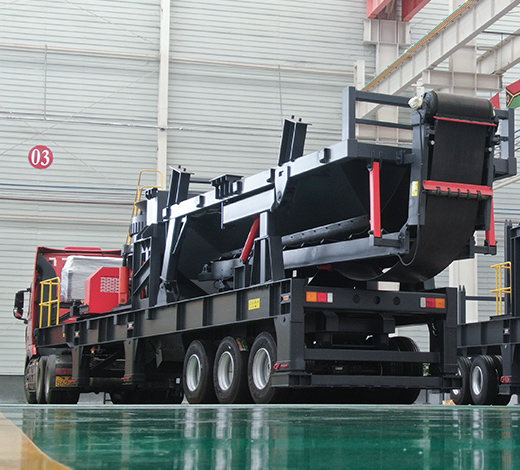

Image 2

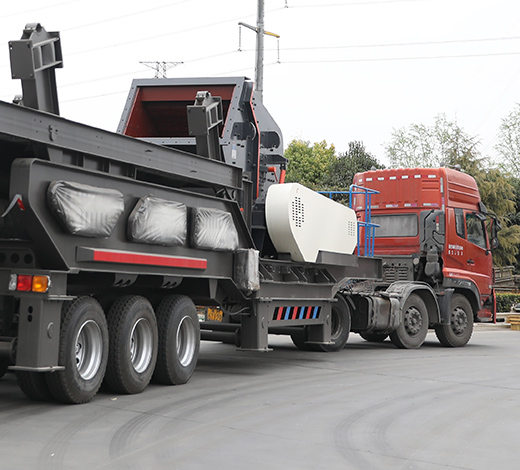

Image 3

Customer reviews

South Africa Mining Granite Crushing Project

  • Capacity: 80TPH

  • Material: Granite & Hard Stone

Avatar Henry Wilson★★★★★

South Africa Mining Granite Crushing Project

This wheel-type crushing station runs stably in our mine, easy to move on rough roads. The finished stones are even, and it hardly breaks down, which meets our production needs well. We also save a lot of time on site transfer every day.

31m agoSouth Africa

UAE Construction Waste Recycling Project

  • Capacity: 120TPH

  • Material: Construction Waste

Avatar Benjamin Miller★★★★★

UAE Construction Waste Recycling Project

The equipment is easy to operate and transfer, low noise and little dust. It helps us recycle construction waste efficiently, saving a lot of daily costs. It fully meets the local environmental inspection standards, so we don’t worry about relevant problems.

32m agoUAE

Related Products

Technical Parameter

Series Standard Model On board Equipment On board Equipment Processing Capability(t/h) Transport Dimensions(mm)

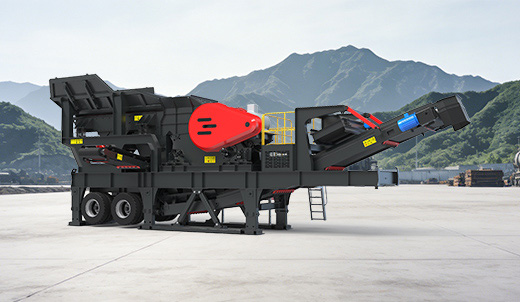

MOBILE COARSE CRUSHING STATION MTF96 GZDT9538 CJ96 70-200 13000×2950×4250
MTF98 GZDT9538 HDX98 80-200 13000×2950×4250
MTF106 GZDT1145A CJ106 90-300 14000×3000×4400

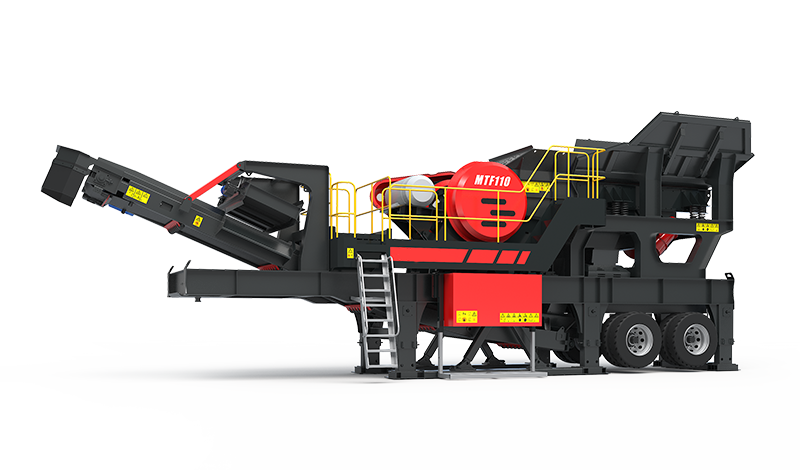

MTF110 GZDT1145A HDX110 120-300 14000×3000×4400
MTF1213C GZDT9538 Cl1213 80-200 13000×2950×4250
MTF1316C GZDT1145A Cl1316 100-300 14000×3000×4400

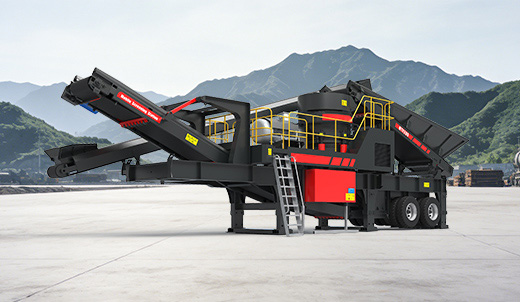

MOBILE MEDIUM AND FINE CRUSHING STATION MTF300 一 HPM300C1 100-200 15500×2900×4200
MTF400 一 HPM400C3 150-300 16500×3100×4300
MTF250 一 SC250F1 90-200 16500×3100×4300
MTF1213 一 Cl1213 80-200 16000×2900×4300
MTF1316 一 Cl1316 100-300 16500×3100×4500
MTF0926 一 HV10926 85-200 16500×3100×4300
MTF1040 一 HV11040 120-300 16500×3100×4400

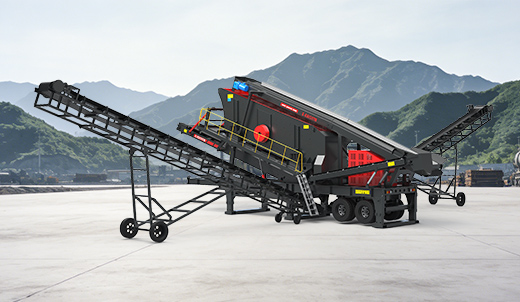

MOBILE SCREENING STATION MTF1865-3 一 3HX1865 65-200 14500×2900×4000
MTF2165-3 一 3HX2165 85-300 15000×2900×4400

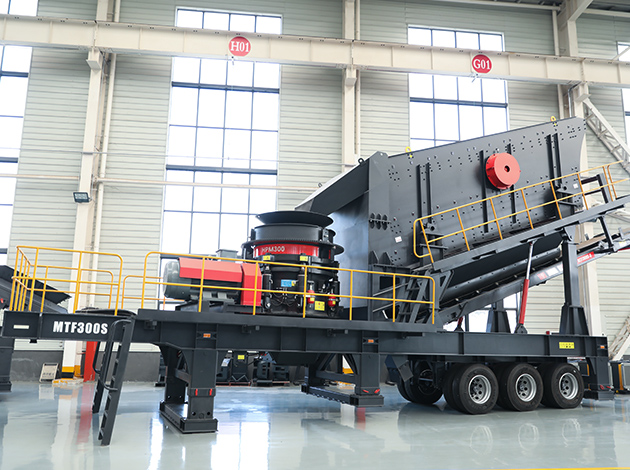

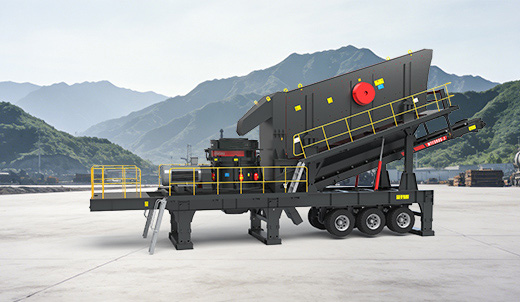

MOBILE STATION FOR MEDIUM AND FINE CRUSHING AND SCREENING MTF300S-3SⅡ 3HX1865 HPM300C1 100-200 15000×3000×4000
MTF300S-3 3HX2165 HPM300C1 100-200 15000×3000×4000
MTF400S-3 3HX2165 HPM400C3 150-300 15000×3000×4000
MTFG400S-3SⅡ 3HX1865 GYS400C1 100-200 15000×3000×4000
MTFG400S-3 3HX2165 GYS400C1 100-200 15000×3000×4000
MTF250S-3 3HX2165 SC250F1 90-200 15000×3000×4200
MTF1213S-3 3HX1865 Cl1213 80-200 15000×3000×4200
MTF1316S-3 3HX2165 Cl1316 100-300 15000×3000×4200
MTF0926S-2 2HX1865 HVI0926 85-200 18000×3000×4200
MTF1040S-2 2HX2165 HV11040 120-300 18000×3000×4200

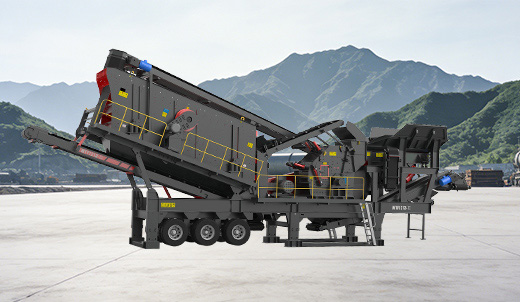

THREE COMBINATION MOBILE STATION MTF1213-Ⅲ GZDT9538/3HX1865 Cl1213 80-200 18200×2800×4350
MTF1316-Ⅲ GZDT1145A/3HX2165 Cl1316 100-300 18200×3000×4200
MTF1410-Ⅲ GZDT9538/3HX1865 PCZ1410 80-200 18200×2800×4200
MTF1612-Ⅲ GZDT1145A/3HX2165 PCZ1612 100-300 18200×3000×4200

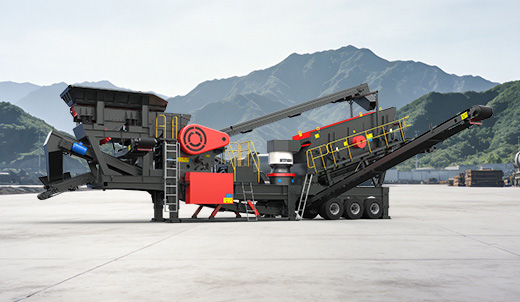

FOUR COMBINATION MOBILE STATION MTF100Y-2 GZD850×3000/2YK1545 HD72/GYS300 50-100 15000×2650×4500
MTF100Y-3 GZDT0835/3HX1548 HDX86/SC100F1 50-100 17500×2500×4000
MTF150Y-3 GZDT0835/3HX1548 HDX86/SC160F1 70-150 17500×2500×4000
MTF150R-3 GZDT0835/3HX1548 HDX86/CI1110 60-150 17500×2500×4000

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Series Standard Model Processing Capacity
(t/h)
MOBILE COARSE CRUSHING STATION MTF96 70-200
MTF98 80-200
MTF106 90-300
MTF110 120-300
MTF1213C 80-200
MTF1316C 100-300
MOBILE MEDIUM AND FINE CRUSHING STATION MTF300 100-200
MTF400 150-300
MTF250 90-200
MTF1213 80-200
MTF1316 100-300
MTF0926 85-200
MTF1040 120-300
MOBILE SCREENING STATION MTF1865-3 65-200
MTF2165-3 85-300
MOBILE STATION FOR MEDIUM AND FINE CRUSHING AND SCREENING MTF300S-3SⅡ 100-200
MTF300S-3 100-200
MTF400S-3 150-300
MTFG400S-3SⅡ 100-200
MTFG400S-3 100-200
MTF250S-3 90-200
MTF1213S-3 80-200
MTF1316S-3 100-300
MTF0926S-2 85-200
MTF1040S-2 120-300
THREE COMBINATION MOBILE STATION MTF1213-Ⅲ 80-200
MTF1316-Ⅲ 100-300
MTF1410-Ⅲ 80-200
MTF1612-Ⅲ 100-300
FOUR COMBINATION MOBILE STATION MTF100Y-2 50-100
MTF100Y-3 50-100
MTF150Y-3 70-150
MTF150R-3 60-150

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
