Ore powder briquette machine

Ore powder briquette machine

Theoretical yield:2-28(t/h) Diameter of Roller: 500-1000mm Applied materials:Pulverized coal, coking coal, iron powder, aluminum powder, scrap iron, graphite, clay, kaolin, desulfurization gypsum, cryolite, chemical fertilizer, limestone, carbon powder, activated carbon, coke powder, tailings, slag, sludge, etc

Similar Products

Introduction to ore powder briquette machine

ore powder briquette machine

The ore powder briquette machine has a wide range of applications in the compression of aluminum skimming, active carbon, aluminum oxide, bauxite, caustic soda, charcoal, clay, coke breeze, cryolite, chemical fertilizer, plastic, painting, urea and sylvite etc. We use the ore powder briquetting machine to reduce the dust emission, control the unit weight, recycle materials and improve the transportation feature.

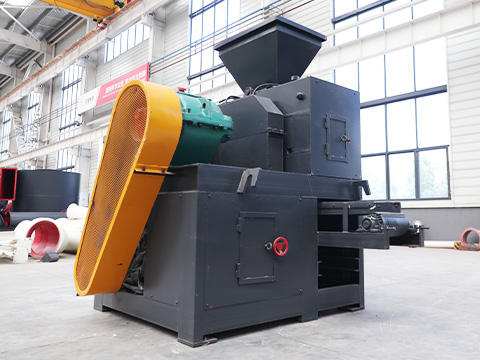

Ore Powder Briquette Machine

Requirement on materials for the ore powder briquette machine:

1. The material particle size for ore powder briquetting machine should be controlled below 80-200 mess.

2. No metal is allowed to mix in the materials, or it will damage the roll sheet surface.

3. It’s necessary to supply enough materials to guarantee the ball pressing rate. The pressing process of the metal will make serious abrasion to the roll sheet, so users should pay attention to the material of the roll sheet when purchasing the ore powder briquette machine or briquetting machine. We’d better adopt the wear-resistant alloy for forging.

Technical Parameters

Model Roll diamter
(mm)
Roll width
(mm)
Total pressure
(t)
Main motor power
(kw)
Output
(t)
Weight
(t)
GY520-150 520 196 150 55 2.2-3.5 13
GY650-220 650 200 220 110 4-6.5 19.2
GY750-300 750 280 300 185 6-8.5 34
GY1000-350 1000 440 350 250 10-15 50.8
GY1000-450 1000 504 450 280 14-17 58.5
GY1000-500 1000 504 500 315 15-20 58.5
GYS1000-500 1000 600 500 280 17-21 56.5
GY1000-540 1000 900 540 185Kw×2 30-35 60
GY1200-800 1200 900 800 280Kw×2 40 110
GY1400-1000 1400 1000 1000 400Kw×2 50 156
