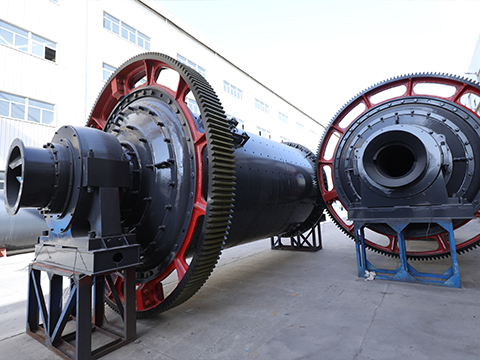

Rod mill

Rod mill

  • Production capacity:0.62-180t/h
  • Feeding granularity: ≤25-≤50mm
  • Discharging size:0.833-0.147mm

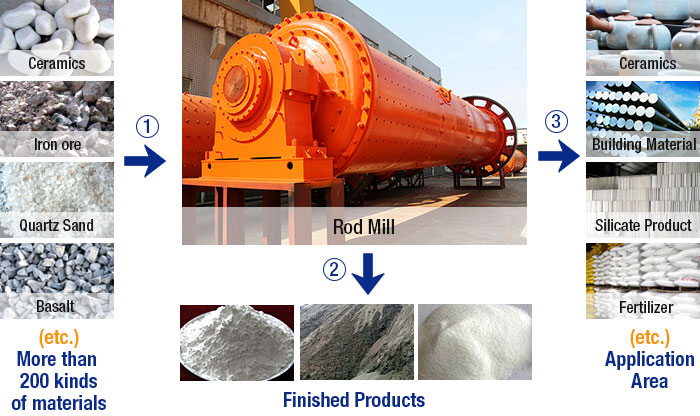

  • Applied material:quartz, iron ore, copper ore, gold ore, glass, construction waste, cement clinker, etc

    Get Price Now Leave Message

what can i do for you

40 Years history production base and exporter

Contact Us ( sales@sinofote.com )

Brief introduction to rod mill

Rod mill or grinding rod mill can be widely applied in some fields such as refractory, chemical industry, metallurgy, glass and some other industries that have the higher requirement on the uniformity of the finished product. The cylinder of the rod mill rotates at certain speed and the grinding body rises to certain height and then is cast in the action of friction and centrifugal force to make materials be impacted and ground, thus finishing the sand making process.

Rod Mill

Advantages of rod mill

Rod Mill

Rod mill or grinding rod mill has dry and wet two types to choose, user could choose depend on the fact. The company uses the advanced output controllable technology, with the face milling material set the suitable miller, change the traditional surface contact into line contact, make the output granularity evener, high product, widely used in chemical industry, metallurgy, glassed industry, and the high requirement of the evenness for milling after milling, sand making of building sand in recent years.

rod mill

Technical Parameters

Model
Shell Specifications (mm)
Shell rotation speed
(r/min)
Feeding size
(mm)
Discharging size
(mm)
Processing capacity
(t/h)
Power
(kw)
Total weight
(t)
Diameter Length
MBS0918 900 1800 36-38 ≤25 0.833-0.147 0.62-3.2 18.5 5.9
MBS0924 900 2400 36 ≤25 0.833-0.147 0.81-4.3 22 6.7
MBS1224 1200 2400 36 ≤25 0.833-0.147 1.1-4.9 30 13.9
MBS1530 1500 3000 29.7 ≤25 0.833-0.147 2.4-7.5 75 19.8
MBS1830 1830 3000 25.4 ≤25 0.833-0.147 4.8-11.6 130 34.9
MBS2130 2100 3000 23.7 ≤25 0.833-0.147 14-35 155 46.5
MBS2136 2100 3600 23.7 ≤25 0.833-0.147 19-43 180 48.7
MBS2430 2400 3000 21 ≤50 0.833-0.147 25-65 245 59.7
MBS2736 2700 3600 20.7 ≤50 0.833-0.147 32-86 380 92.5
MBS2740 2700 4000 20.7 ≤50 0.833-0.147 32-92 400 95
MBS3245 3200 4500 18 ≤50 0.833-0.147 64-180 630 149
Model
Shell Specifications (mm)
Feeding size
(mm)
Processing capacity
(t/h)
Diameter Length
MBS0918 900 1800 ≤25 0.62-3.2
MBS0924 900 2400 ≤25 0.81-4.3
MBS1224 1200 2400 ≤25 1.1-4.9
MBS1530 1500 3000 ≤25 2.4-7.5
MBS1830 1830 3000 ≤25 4.8-11.6
MBS2130 2100 3000 ≤25 14-35
MBS2136 2100 3600 ≤25 19-43
MBS2430 2400 3000 ≤50 25-65
MBS2736 2700 3600 ≤50 32-86
MBS2740 2700 4000 ≤50 32-92
MBS3245 3200 4500 ≤50 64-180
