Rotary Dryer Rotary Dryer

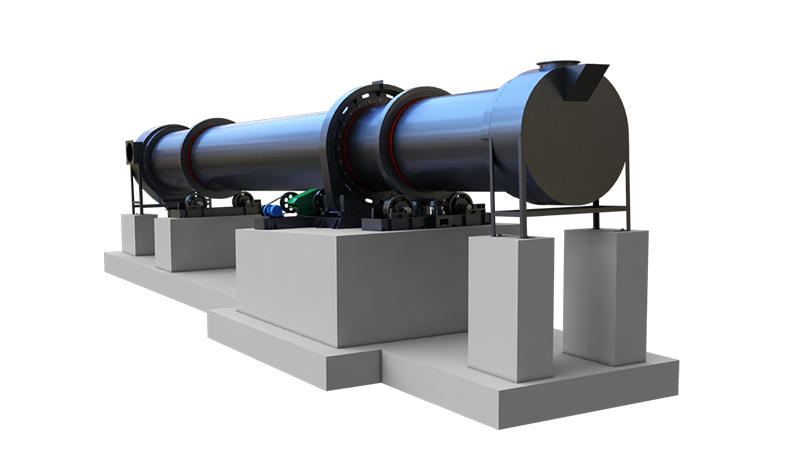

Rotary Dryer

  • Capacity:1.9-76t/h
  • Output Humidity:0.5-1% or below

Brief Introduction

Rotary dryer is an efficient and energy-saving heavy-duty drying equipment, widely used in mining, chemical industry, building materials, metallurgy and many other industries. It is mainly used for drying various wet materials such as ores, gravel, coal powder and slag. Adopting a drum rotating design, the equipment realizes uniform heating of materials through a hot air circulation system. It not only has fast drying speed and good effect, but also has significant advantages such as low energy consumption, stable operation, convenient operation and low failure rate. It can flexibly adjust parameters according to the drying needs of different materials, adapt to a variety of production scenarios, and help enterprises improve production efficiency and reduce drying costs.​

Application area:mining, chemical industry, building materials , metallurgy etc.

Rotary Dryer

Material

  • sand

  • coal

  • ore

  • sludge

  • slag

  • phosphate

Product Advantage

  • Efficient Dehydration & Uniform Stability

    Drum rotation + hot air circulation ensures uniform heating, high dehydration efficiency, and stable drying results.

  • Energy-Saving & Cost-Control

    High-efficiency heat design reduces energy consumption, lowering long-term operating costs.

  • Durable & Easy Maintenance

    Wear-resistant body with low failure rate; easy to operate and maintain.

  • Wide Adaptability & Flexible Adjustment

    Compatible with various materials; adjustable drying parameters for versatile applications..

Product Photos

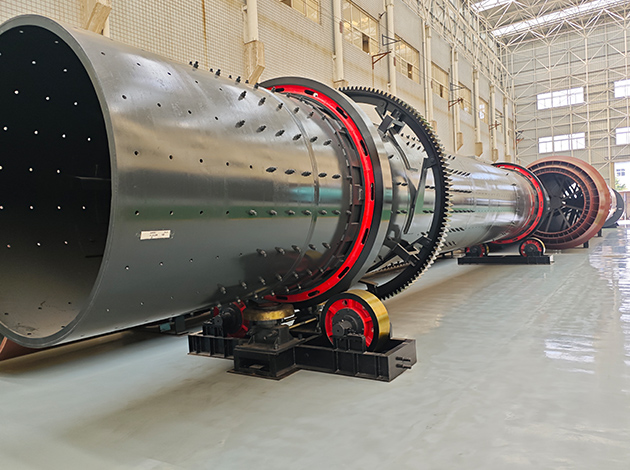

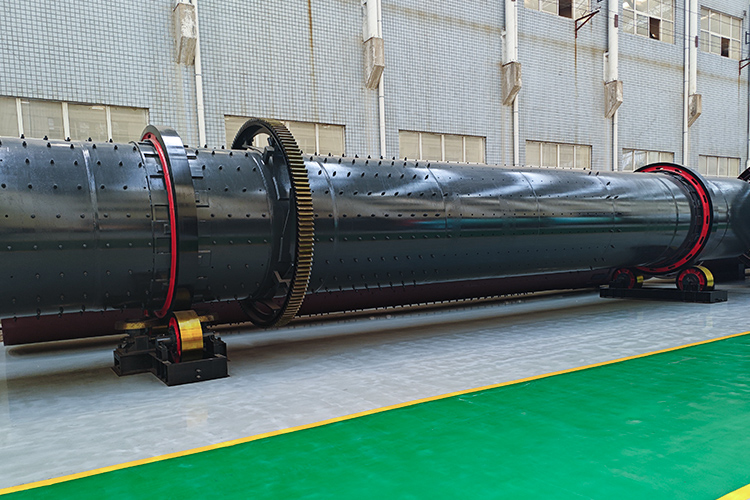

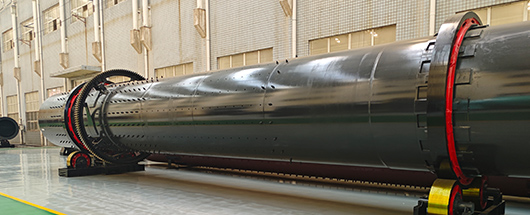

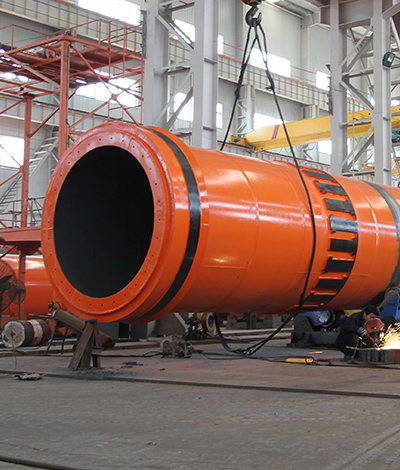

  • Production site

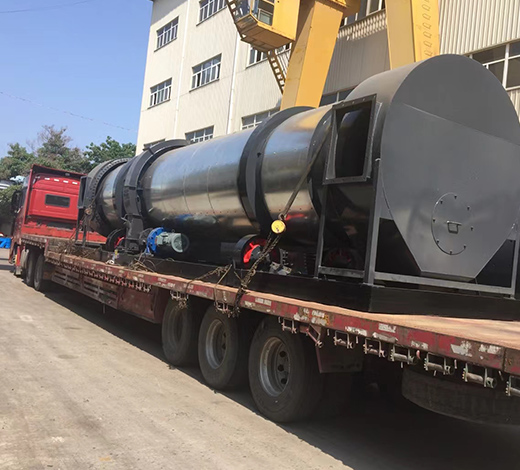

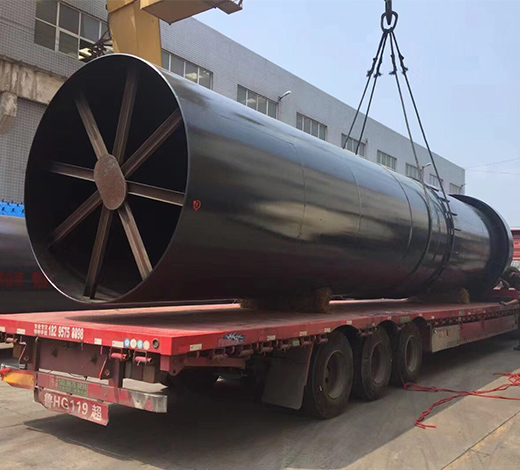

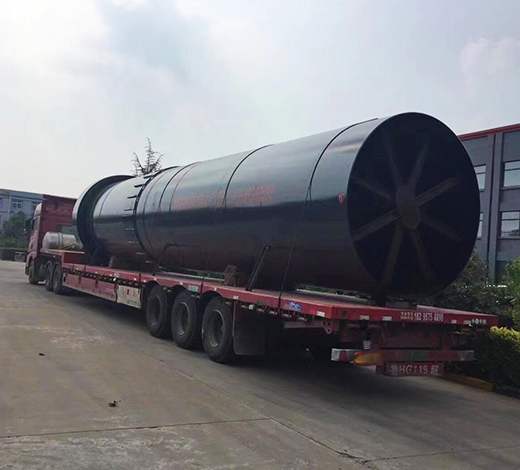

  • Delivery Site
  • Videos

Image 1

Image 2

Image 3

Customer reviews

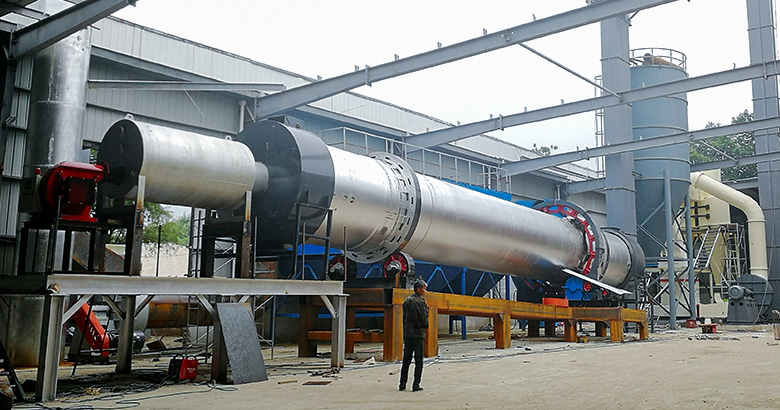

Brazil Construction Sand Drying Project
  • Capacity: 20TPH

  • Material: Construction Sand

Silva Silva ★★★★★

Brazil Construction Sand Drying Project

This rotary dryer has a stable rotating cylinder, the sand is heated evenly without caking, the drying speed is fast, which can fully meet our engineering supply needs, and the energy consumption is lower than expected.

58m agoBrazil

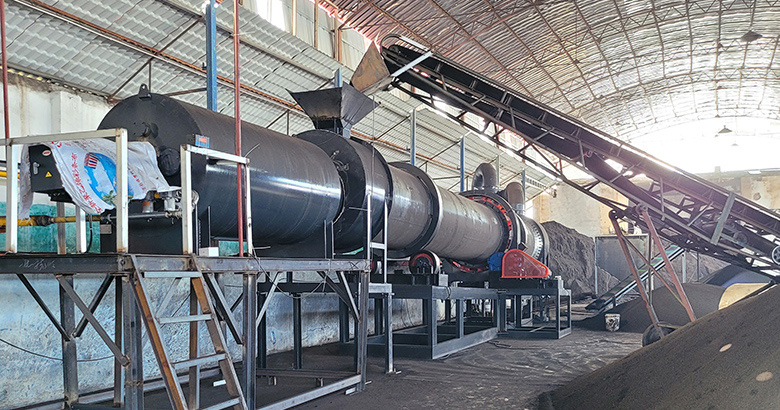

Sri Lanka Pulverized Coal Drying Project
  • Capacity: 8TPH

  • Material: Coal Powder

Avatar Somaratne★★★★★

Sri Lanka Pulverized Coal Drying Project

This rotary dryer has precise temperature control, the drying process is safe and stable, and the dried coal powder has uniform quality, which can directly meet our subsequent processing needs and greatly improve our production efficiency.

28m agoSri Lanka

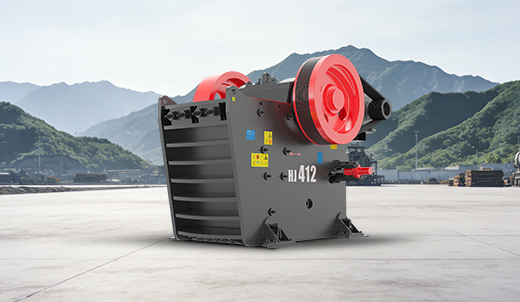

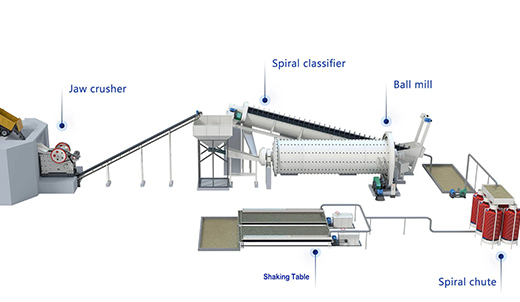

Related Products

Technical Parameter

Spec./m Shell Cubage Capacity(t/h) Installation(%) Highest Inlet Air
Temperature(℃)
Main Motor
Ø1.2×8 9 1.9-2.4 3-5 700-800 7.5
Ø1.2 ×10 11.3 2.4-3 3-5 700-800 7.5
Ø 1.5×12 21.2 4.5-5.7 3-5 700-800 15
Ø 1.5×14 24.7 5.3-6.6 3-5 700-800 15
Ø1.5×15 26.5 5.7-7.1 3-5 700-800 15
Ø 1.8×12 30.5 6.5-8.1 3-5 700-800 18.5
Ø 1.8×14 35.6 7.6-9.5 3-5 700-800 18.5
Ø 2.2×12 45.6 9.7-12.2 3-5 700-800 22
Ø 2.2×14 53.2 11.4-14.2 3-5 700-800 22
Ø 2.2×16 60.8 13-16.2 3-5 700-800 22
Ø 2.4×14 63.3 13.5-16.9 3-5 700-800 37
Ø 2.4×18 81.4 17.4-21.7 3-5 700-800  37
Ø 2.4×20 90.4 19.3-24.1 3-5 700-800 45
Ø 2.4×22 99.5 21.2-26.5 3-5 700-800 45
Ø 2.6×24 127.4 27.2-34 3-5 700-800 55
Ø 3×20 141.3 30.1-37.7 3-5 700-800 75
Ø 3×25 176.6 37.7-47.1 3-5 700-800 75
Ø 3.2×25 201 42.9-53.6 3-5 700-800 90
Ø 3.6×28 285 60.8-76 3-5 700-800 160
Spec./m Capacity(t/h) Highest Inlet
Air Temperature(℃)
Ø 1.2×8 1.9-2.4 700-800
Ø1.2 ×10 2.4-3 700-800
Ø 1.5×12 4.5-5.7 700-800
Ø 1.5×14 5.3-6.6 700-800
Ø1.5×15 5.7-7.1 700-800
Ø 1.8×12 6.5-8.1 700-800
Ø 1.8×14 7.6-9.5 700-800
Ø 2.2×12 9.7-12.2 700-800
Ø 2.2×14 11.4-14.2 700-800
Ø 2.2×16 13-16.2 700-800
Ø 2.4×14 13.5-16.9 700-800
Ø 2.4×18 17.4-21.7  700-800
Ø 2.4×20 19.3-24.1 700-800
Ø 2.4×22 21.2-26.5 700-800
Ø 2.6×24 27.2-34 700-800
Ø 3×20 30.1-37.7 700-800
Ø 3×25 37.7-47.1 700-800
Ø 3.2×25 42.9-53.6 700-800
Ø 3.6×28 60.8-76 700-800
