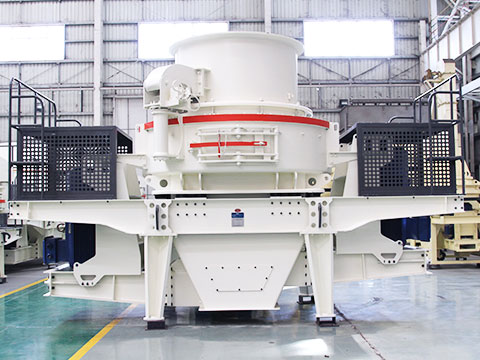

Sand maker

Sand maker

  • Processing ability:0.26-30m3
  • Production Caulacity: 12-360t/h
  • Rotate suleed:200-530 r/min
  • Aulullied material:ulebble, calcite, granite, quartz, concrete, dolomite, bluestone, iron ore, limestone, construction waste, etc
Get Price Now Leave Message

what can i do for you

40 Years history production base and exporter

Contact Us ( sales@sinofote.com )

Working principle of sand making machine

1. Materials enter the crusher via the feed hopper and are divided to two parts. Some enter the high speed spinning impellor through the distributor and the accelerated speed can be a hundred times of the gravitational acceleration.

Sand Maker Processing material

2. Then the materials are thrown out from three runners at the speed of 60-70m/s and impact the falling materials from the distributor.

3. Then they come to the lining of the inner cavity and get bounced by the material liner to the upper end of the whirling motion cavity.

4. Then they change the direction to move down. The materials cast from the impellor form a continuous material curtain. In this case, the materials can experience two or more times of impacting and grinding processes. The crushed materials are discharged from the bottom hole of the sand making machine.

Sand maker

5. Forming a closed circuit with the circulation screening system, the vibrating feeder can handle the materials as fine as 20 meshes within three circulations.

6. In the whole crushing process, the materials hit each other without touching the metal components directly. They meet the material lining in order to reduce the pollution and prolong the service life of the sand making machine. The advanced air flow in the whirling motion cavity can effectively reduce the dust pollution.

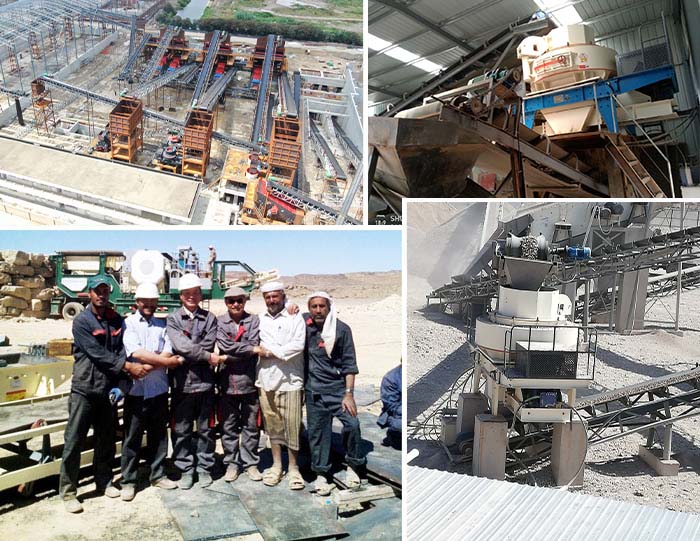

Sand making plant

Sand making plant

The Chinese sand making plant or sand making machinery plays an important role in many fields such as the ore exploitation, cement production, refractory matter, bauxite clinker, emery, glass, artificial construction sand, stones and other metallurgy slurry.

Henan Fote, as the leading sand making plant in China, has successfully designed and made the basalt sand maker which is a high efficient rough sand maker. Fote holds the concept of being the satisfying partner with its excellent product quality, complete product types and outstanding after-sale service and shows the world our self-dependent innovation results and the faith and strength to march to the world.

Technical Parameters

Model
specification
Capacity
(t/h)
FTM-06 12-30
FTM-07 25-55
FTM-09 55-100
FTM-10 100-160

Model Capacity(t/h)
Feed both
at center
 and sides
Feed at
center
FTMVSI-7611 120-180 60-90
FTMVSI-8518 200-260 100-130
FTMVSI-9526 300-380 150-190
FTMVSI-1140 450-520 225-260
FTMVSI-1145 500-610 245-355
FTMVSI-1150 520-650 255-365

Our Partners

Through long-term arduous technology research and international communication, our product quality has been in line with international level, winning a world-wide acclaim and honor, and our products are exported to ninety countries and regions like Tanzania, Nigeria, South Africa, Kenya, Turkey, Saudi Arabia, Philippines, Indonesia, Malaysia, Vietnam, Mexico, Brazil, Russia, Uzbekistan, Australia, etc.
