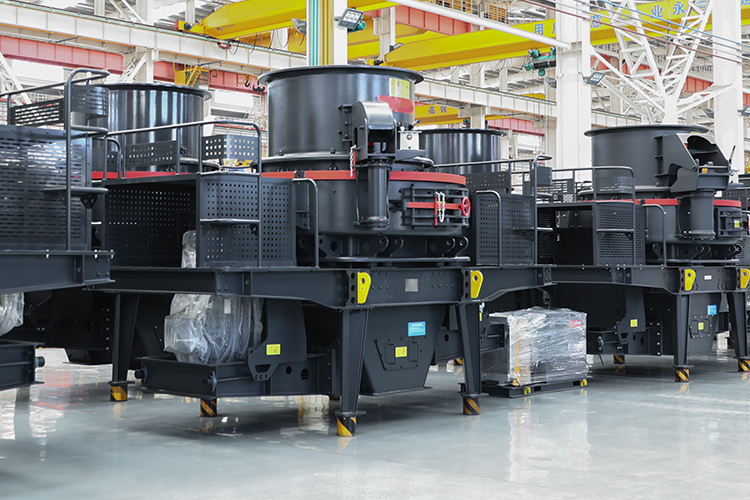

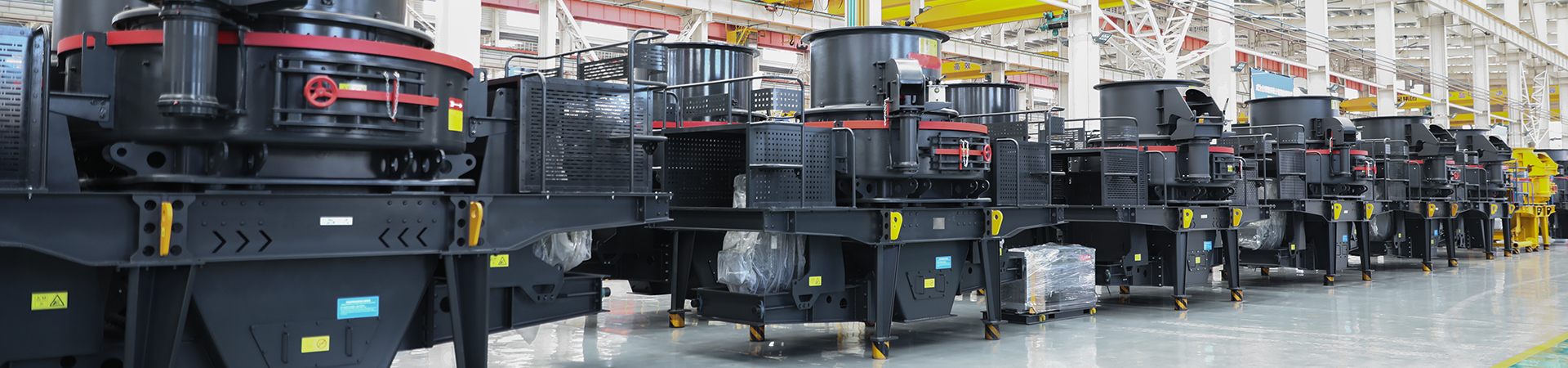

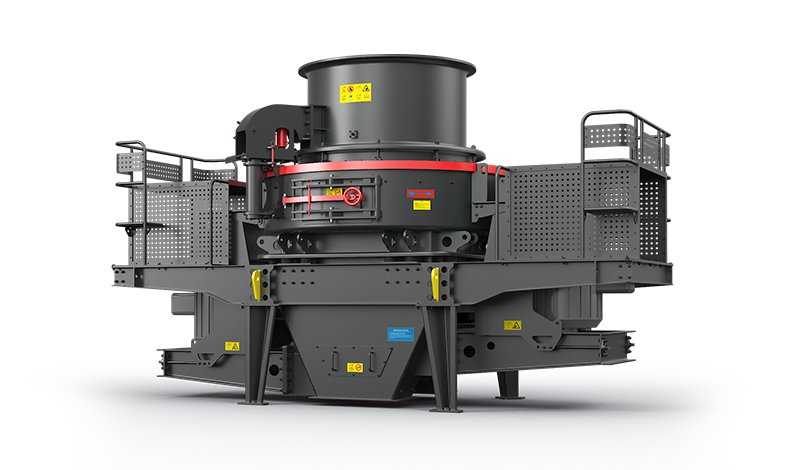

Sand Making Machine Sand Making Machine

Sand Making Machine

  • Capacity:10-600t/h
  • Feeding Size:≤60mm
  1. Home
  2. Product
  3. Sand Making Machine

Brief Introduction

Our sand making machines (VSIA7 and HVI series) are a new generation of equipment integrating advanced domestic and international technologies and independent R&D achievements. The VSIA7 series is suitable for large-scale and ultra-large manufactured sand and high-quality aggregate production lines with strong performance, while the HVI series integrates multiple crushing modes to become core equipment in the industry, capable of widely processing metal ores, non-metallic ores, building materials and metallurgical slag for efficient crushing and shaping.

  • Application area:Quarrying and Mining,Aggregate production,Construction waste recycling,Road construction & infrastructure,Concrete Batching Plant,Dry Mortar, Power Plant Desulfurization etc.
Get Price Now Leave Message
Sand Making Machine

Material

  • river pebbles

  • construction waste

  • granite

  • limestone

  • basalt

  • iron ore

Product Advantage

  • Flexible feeding methods

    Flexible feeding methods, switching between “waterfall feeding+center feeding”and“full center feeding” modes;

  • Large discharge port design

    The large discharge port design effectively prevents material blockage and improves crushing efficiency;

  • Strengthened crushing chamber

    Strengthening the crushing chamber, reducing wear cost, and increasing crushing efficiency;

  • Hydraulic Maintenance Convenience

    Configure hydraulic cover opening and lifting devices to reduce maintenance difficulty;

  • Optimal Crushing Effect

    Reasonable selection of crushing principle-impact crushing, excellent granules;

  • High Wear-Resistant Core Material

    Core wear resistance -high wear resistance impact material.

Product Photos

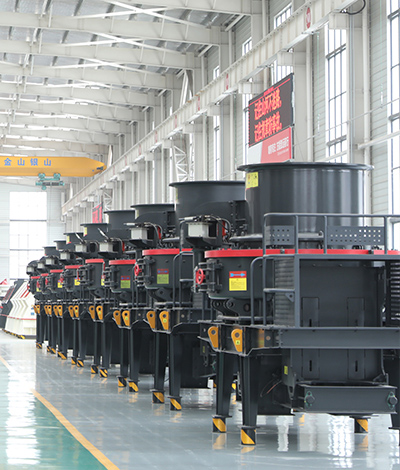

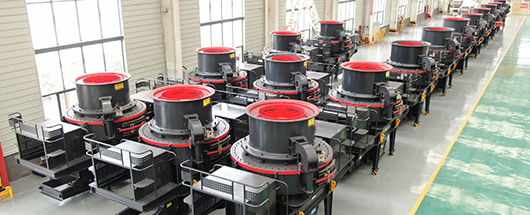

  • Production site

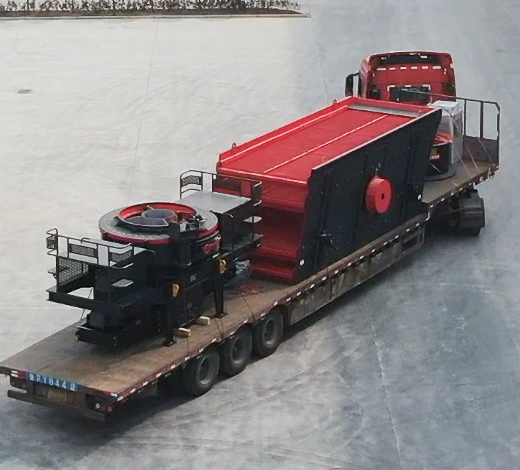

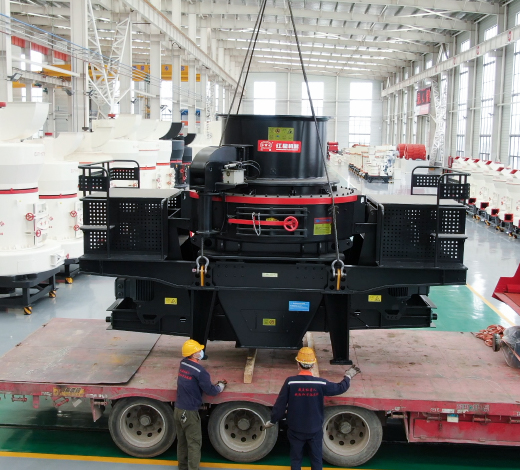

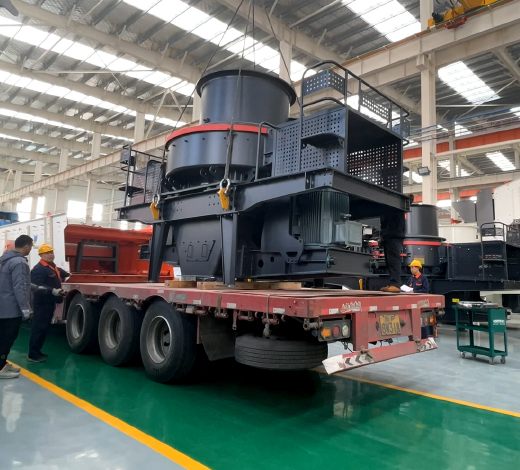

  • Delivery Site
  • Videos

Image 1

Image 2

Image 3

Customer reviews

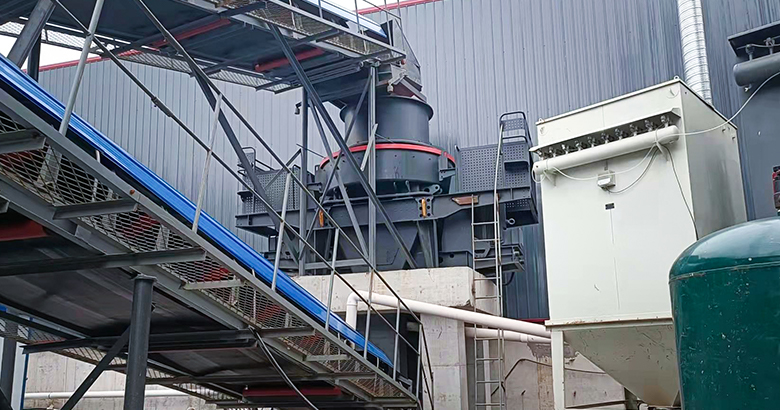

Kenya River Pebble Sand Making Production Line

  • Capacity: 50TPH

  • Material: River Pebble

Avatar John Omondi★★★★★

Kenya River Pebble Sand Making Production Line

The machine runs stably. The sand made from river pebbles has good particle shape and reasonable gradation, quality is much better than local similar equipment, cost-effective, highly recommended.

2m agoKenya

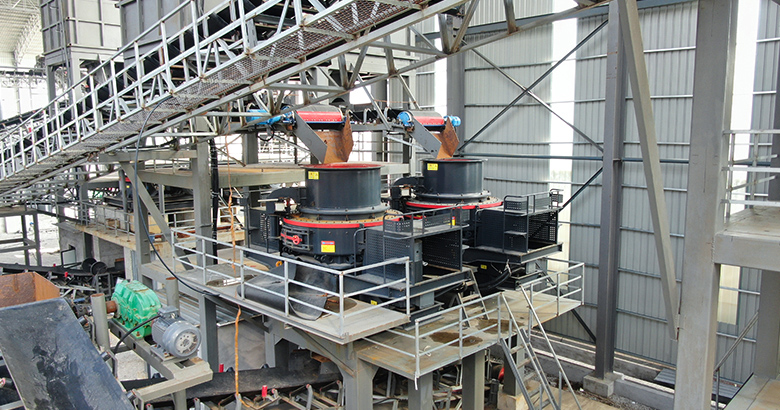

Malaysia Granite Sand Making Project

  • Capacity: 100TPH

  • Material: Granite

Avatar Ahmad bin Abdullah★★★★★

Malaysia Granite Sand Making Project

Compared with many brands, this sand making machine is durable with low failure rate and stable finished sand quality. We will purchase again for future expansion.

38m agoMalaysia

Related Products

Technical Parameter

Model VSI 7611 VSI 8518 VSI 9526 VSI 1140 VSI 1145 VSI 1150
Capacity
(t/h)		 Feed both at center and sides 80-180 140-260 200-380 300-520 350-610 360-650
Feed at center 40-90 70-130 100-190 160-260 180-355 190-365
Max.feeding size
（mm）		 Soft material 35 40 45 50 50 50
Hard material 30 35 40 40 45 45
Rotation speed（r/min） 1700-1890 1520-1690 1360-1510 1150-1300 1150-1300 1150-1300
Motor power（kw） 4P   110 4P   180 4P   264 4P   400 4P   440 4P   500
Overall dimension（L×W×H）（mm） 4100×2250×2300 4160×2360×2500 4540×2500×2830 5500×2750×3100 5500×2750×3100 5500×2750×3100

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Capacity(t/h)
Feed both at center and sides Feed at center
VSI 7611 80-180 40-90
VSI 8518 140-260 70-130
VSI 9526 200-380 100-190
VSI 1140 300-520 160-260
VSI 1145 350-610 180-355
VSI 1150 360-650 190-365

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Hard material Soft material Sand Shaping Sand Making Motor Power（kw）
Max.Feeding Size （mm） Throughput（t/h）
HVI 0815  <30 <35  50-140  90-230  2×75
HVI 0818 <30 <35 60-190 110-283 2×90
HVI 0922 <35 <40 70-210 150-330 2×110
HVI 0926 <35 <40 85-240 170-380 2×132
HVI 1032 <40 <45 130-278 180-400 2×160
HVI 1040 <40 <45 180-284 250-440 2×200
HVI 1263 <50 <55 320-498 370-585 2×315
Model Sand Shaping Sand Making Motor Power （kw）
Max.Feeding Size （mm）
HVI 0815 50-140  90-230  2×75
HVI 0818 60-190 110-283 2×90
HVI 0922 70-210 150-330 2×110
HVI 0926 85-240 170-380 2×132
HVI 1032 130-278 180-400 2×160
HVI 1040 180-284 250-440 2×200
HVI 1263 320-498 370-585 2×315
Model Hard material Soft material Sand Making Sand Shaping Motor Power（kw）
Max.Feeding Size （mm） Throughput（t/h）
VSI7A 400 <45 <55 260-285 314-345 2×200
VSI7A 500 <45 <55 345-370 412-578 2×250
VSI7A 630 <50 <60 455-488 544-760 2×315
VSI7A 710 <50 <60 508-560 610-860 2×355
VSI7A 800 <50 <60 600-645 722-1005 2×400
VSI7A 1000 <50 <60 780-843 940-1310 2×1000

Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Sand Making Sand Shaping Motor Power（kw）
Throughput （t/h）
VSI7A 400 260-285 314-345 2×200
VSI7A 500 345-370 412-578 2×250
VSI7A 630 455-488 544-760 2×315
VSI7A 710 508-560 610-860 2×355
VSI7A 800 600-645 722-1005 2×400
VSI7A 1000 780-843 940-1310 2×1000

Note:Processing Capacity May Vary With Different Materials And Feeding Sizes.
