Secondary wheel mobile impact crusher

Secondary wheel mobile impact crusher

  • Feeding size:300-700mm
  • Processing capacity:30-250t/h
  • Applied material:river pebbles, rocks, granite, basalt, ore tailings, etc.
  • Application area:mine ore crushing, construction waste recycling, construction aggregate production, highway, railway, bridge construction and other industries.

    Get Price Now Leave Message

what can i do for you

40 Years history production base and exporter

Contact Us ( sales@sinofote.com )

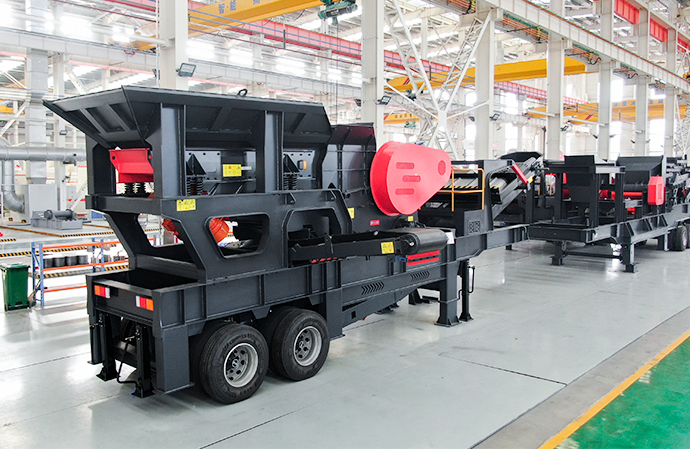

The secondary wheel mobile impact crusher is widely used mobile stone crusher machine and portable aggregate plant, which adopts the entire equipment drive which can realize the pivot steering. The secondary wheel mobile impact crusher has the standard configuration and quick changing device with the complete safety protection function, which makes it suitable for the narrow and complex field. The portable aggregate plant can save as much as 25% of fuel oil with the optimized design of the attachment of power package casually. We can use the portable aggregate plant to complete the climbing operation in the projects of mine, hydropower station and coal mine. The portable aggregate plant has excellent station mobility and operating field adaptability; users don’t need the preparation before the installation of the mobile impact crusher and they can complete the station adjustment in no time, thus making the secondary wheel mobile impact crusher enter the normal work condition.

Henan Fote Heavy Machinery Co,. Ltd. is a large joint-stock corporation, majoring in heavy mining machinery and civil machinery manufacturing. Fote occupies an area of 360,000 square meters, including 60,000 square meters of standard heavy industrial workshops equipped with over 500 large and medium-sized metal processing, riveting and assembly equipment.

Secondary wheel mobile impact crusher

Leave us a message for more product details and price lists?

Technical Parameters

Model FTM938F1210 FTM938F1214 FTM1149F1315 FTM938F1110 FTM1349F1315
Transportation length(mm) 12000 12000 13900 15450 15450
Transportation Width(mm) 2550 2550 2900 2950 2950
Transportation Height(mm) 3900 3900 4450 4500 4500
Maximum length(mm) 12500 12500 13900 15450 15450
Maximum Width(mm) 3250 3260 3250 3250 3250
Maximum Height(mm) 5100 5200 5200 5200 5200
Weight(t) 39 44 54 62 62
Impact crusher PE-1210 PE-1214 PF-1315 HD1110 HD1315
Maximum Feeding Size(mm) 350 350 500 400 700
Capacity(t/h) 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(optional) B500×3.2m B500×3.2m B650×4m B650×4m B650×4m
Gensrt(optional) 320KW 320KW 400KW 320KW 440KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12

Model FTM938F1210 and FTM938F1214 and FTM1149F1315

Model FTM938F1210 FTM938F1214 FTM1149F1315
Transportation length(mm) 12000 12000 13900
Transportation Width(mm) 2550 2550 2900
Transportation Height(mm) 3900 3900 4450
Maximum Length(mm) 12500 12500 13900
Maximum Width(mm) 3250 3260 3250
Maximum Height(mm) 5100 5200 5200
Weight(t) 39 44 54
Impact crusher PE-1210 PE-1214 PF-1315
Maximum Feeding Size(mm) 350 350 500
Capacity(t/h) 70-130 100-180 130-250
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M
Side-opening Belt conveyor(optional) B500×3.2m B500×3.2m B650×4m
Gensrt(optional) 320KW 320KW 400KW
iron separator(optional) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10

Model FTM938F1110 and FTM1349F1315

Model FTM938F1110 FTM1349F1315
Transportation length(mm) 15450 15450
Transportation Width(mm) 2950 2950
Transportation Height(mm) 4500 4500
Maximum Length(mm) 15450 15450
Maximum Width(mm) 3250 3250
Maximum Height(mm) 5200 5200
Weight(t) 62 62
Impact crusher HD1110 HD1315
Maximum Feeding Size(mm) 400 700
Capacity(t/h) 112 280
Vibrating Feeder ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×11M B1200×11M
Side-opening Belt conveyor(optional) B650×4m B650×4m
Gensrt(optional) 320KW 440KW
Iron separator(optional) RCYD(C)-8 RCYD(C)-12
