Shaking Table Shaking Table

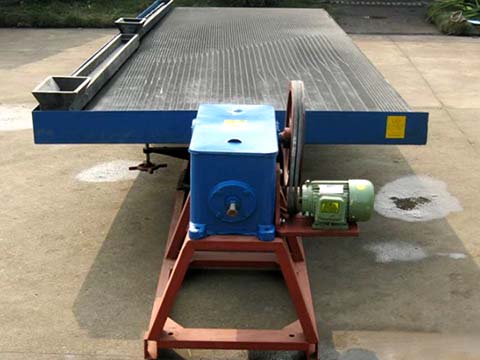

Shaking Table

  • Capacity:0.18-20m³/min
  • Feeding Size:≤2mm

Brief Introduction

Shaking table is a gravity separation equipment used to separate fine-grained materials. It is widely used to separate tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal, etc. Our factory has a long history of producing shakers and has continued to develop and innovate. It has developed from the original straight bed shaker to a single wave surface shaker (in the 1970s), and then to a dual-zone wave surface shaker (in the 1990s), which greatly improves the shaker's processing capacity, recovery rate and enrichment.

  • Application area:Metallic ore beneficiation, non-metallic mineral processing, coal washing, rare metal and rare earth ore separation, solid waste resource recycling etc.
Shaking Table

Material

  • Gold ore

  • Iron ore

  • Copper ore

  • Quartz

  • Manganese ore

Product Advantage

  • High Separation Accuracy

    Achieves precise separation of fine-grained minerals (tin, tungsten, gold, etc.) and improves concentrate grade significantly.

  • High Enrichment Ratio

    Effectively enriches target minerals from low-grade ores, enhancing resource utilization.

  • Low Operating Cost

    Gravity separation, no complex reagents, low energy consumption and maintenance cost.

  • Easy Operation & Maintenance

    Simple structure, few wearing parts, easy parameter adjustment and maintenance.

Product Photos

  • Production site
  • Delivery Site
  • Videos

Image 1

Image 2

Image 3

Customer reviews

  • Capacity: 60TPD

  • Material: Gold Ore

Avatar Mr.Mwam★★★★★

Congo Gold Ore Separation Project

This machine has high separation accuracy, which can effectively separate gold minerals from raw ore and greatly improve the concentrate grade. It is easy to operate and has low maintenance cost, and its cost performance is much higher than other similar products.

15m agoCongo

  • Capacity: 5TPH

  • Material: Copper Ore

Avatar Mr.Chanda★★★★★

Zambia Copper Ore Separation Project

The quality of this shaking table is very reliable, with stable operation and few wearing parts. It can effectively enrich copper minerals from low-grade ores, and I will definitely repurchase it for subsequent projects.

51m agoZambia

Related Products

Technical Parameter

Name Grit
shaking
 table
Fine sand
shaking
 table
Sludge
shaking
 table
Bed surface
Dimensions
Length
(mm)
4450 4450 4450
Driving
part Width
(mm)
1855 1855 1855
Concentrate
part Width
(mm)
1546 1546 1546
Max.feeding
size(mm)
2 0.5 0.15
Feeding
amount
(t/d)
30-60 10-20 15-25
Feeding
thickness
(%)
25-30 20-25 15-25
Stroke
(mm)
16-22 11-16 8-16
Frequency
(f)
45-48 48-53 50-57
Bed surface
Water quantity
(t/d)
80-150 30-60 10-17
Bed surface
Horizontal
obliquity(°)
2.5-4.5 1.5-3.5 1-2
Bed surface
Portrait
obliquity(%)
1.4 0.92 ----
Table board
corner(°)
32-42 40 42
Concentrating
area(㎡)
7.6 7.6 7.6
Bed surface
Length ratio
2.6 2.6 2.6
Shape of
side-bed
surface
Rectangle Zigzag Triangle
Motor
power(kw)
1.1 1.1 1.1
Transmission
device
Eccentricity Linkage
Name Max.feeding
size(mm)
Feeding amount (t/d)
Grit
shaking
 table
2 30-60
Fine sand
shaking
 table
0.5 10-20
Sludge
shaking
 table
0.15 15-25
