Stone Crusher Stone Crusher

Stone Crusher

  • Processing capacity:5-1200t/h
  • Feeding size:≤1500mm
  1. Home
  2. Product
  3. Stone Crusher

Brief Introduction

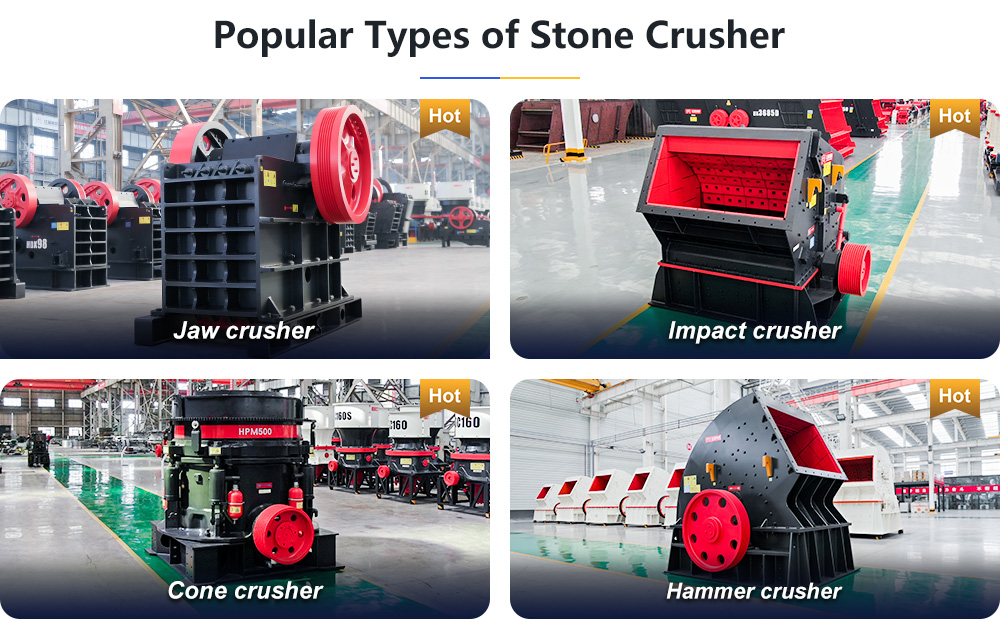

Stone Crushers are heavy-duty industrial equipment used to break large rocks, ores, or construction waste into smaller particles (aggregates). They are widely used in mining, construction, highways, water conservancy, chemical industry and other fields. Common types include jaw crushers, impact crushers, hammer crushers and cone crushers, which feature large crushing ratio, sturdy structure and high efficiency.

Application area：Quarrying and Mining,Aggregate production,Construction waste recycling,Road construction & infrastructure,Concrete Batching Plant,Dry Mortar, Power Plant Desulfurization etc.

Get Price Now Leave Message
Stone Crusher

Material

  • river pebbles

  • construction waste

  • granite

  • limestone

  • basalt

  • iron ore

Product Advantage

  • Durability Advantage

    Core components are made of high-quality materials, with long service life.

  • Structure Advantage

    Simple structure, easy to install and maintain, low failure rate.

  • Adaptability Advantage

    Strong adaptability, suitable for various working environments and material types.

  • Excellent Product Shape

    The output has uniform particle size, low needle-flake content, and reasonable gradation, fully compliant with national construction aggregate standards.

Product Photos

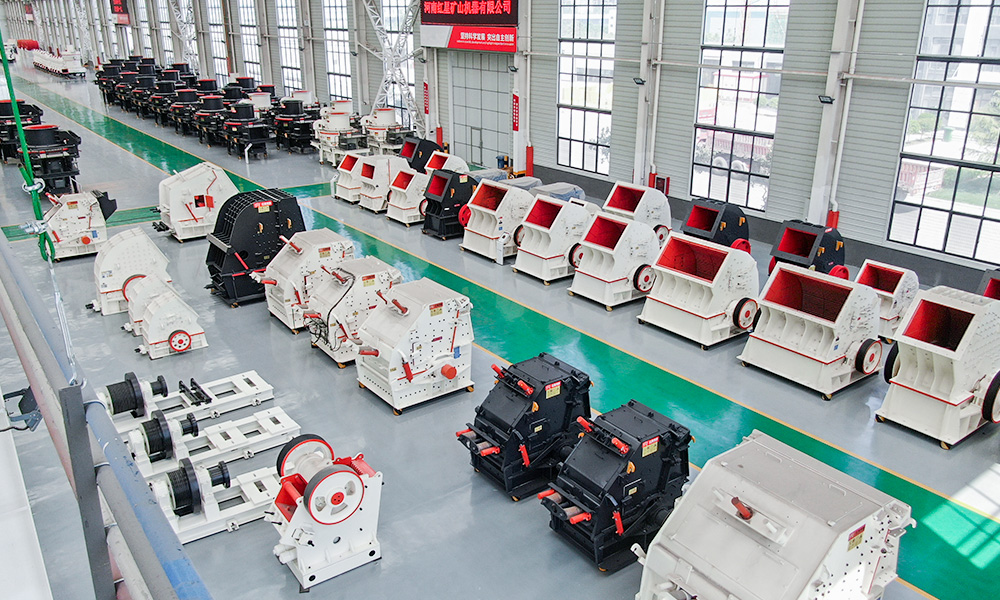

  • Production site
  • Delivery Site
  • Videos




Customer reviews


  • Capacity: 100TPH

  • Material: Basalt

Avatar Arif ★★★★★

Basalt Crushing Project in New Zealand

The machine is sturdy enough for hard basalt crushing. Deep V crushing chamber ensures smooth feeding without blocking. It runs stably with low wear, easy maintenance and supports long-term continuous production.

37m agoNew Zealand


  • Capacity: 200TPH

  • Material: River Pebble

Lim Wei Jie Lim Wei Jie★★★★★

River Pebble Aggregate Production in the Philippines

The equipment is wear-resistant and easy to operate, fully meeting mass production demands. Its discharge quality surpasses local similar machines with timely professional after-sales support. It is highly reliable and strongly recommended.

5m agoPhilippines

Related Products

Technical Parameter

SC Single Cylinder Cone Crusher Medium Crushing Series

Model Cavities Feeding Size （mm） Maximum Feeding Size （mm） Minimum Discharging Size （mm） Power （kw） Capacity（t/h）
SC100S C1 240 175 22 90 85-170
C2 200 160 19 70-130
SC160S C1 360 290 25 160 125-345
C2 300 240 22 108-305
SC250S C1 450 360 35 250 265-524
C2 400 320 29 225-448
SC315S C1 560 450 41 315 349-1050
C2 500 400 38 318-892
SC450S C1 600 480 44 450 498-1500
C2 480 385 41 454-1274

SC Single Cylinder Cone Crusher Fine Crushing Series

Model Cavities Feeding Size （mm） Maximum Feeding Size （mm） Minimum Discharging Size （mm） Power （kw） Capacity（t/h）
SC100 F1 150 120 10 90 45-135
F2 90 70 10 43-118
F3 50 40 6 25-40
SC160 F1 200 160 13 160 69-215
F2 115 90 10 57-184
F3 75 60 8 70-90
SC250 F1 240 190 16 250 116-396
F2 140 110 13 97-346
F3 70 55  9 90-251
SC315 F1 275 220 32 315 177-662
F2 215 170 29 209-643
F3 175 140 29 162-552
F4 85 70 19 175-325
SC560 F1 300 240 22 560 448-1512
F2 195 155 19 380-1373
F3 90 70 13 357-912
SC750 F1 370 295 25 750 394-2181
F2 300 240 19 342-2020
F3 230 185 16 267-1814
F4 120 95 13 248-1165
F5 85 70 10 185-1170

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

SC Single Cylinder Cone Crusher Medium Crushing Series

Model Cavities Feeding Size （mm） Capacity（t/h）
SC100S C1 240 85-170
C2 200 70-130
SC160S C1 360 125-345
C2 300 108-305
SC250S C1 450 265-524
C2 400 225-448
SC315S C1 560 349-1050
C2 500 318-892
SC450S C1 600 498-1500
C2 480 454-1274

SC Single Cylinder Cone Crusher Fine Crushing Series

Model Cavities Feeding Size （mm） Capacity（t/h）
SC100 F1 150 45-135
F2 90 43-118
F3 50 25-40
SC160 F1 200 69-215
F2 115 57-184
F3 75 70-90
SC250 F1 240 116-396
F2 140 97-346
F3 70 90-251
SC315 F1 275 177-662
F2 215 209-643
F3 175 162-552
F4 85 175-325
SC560 F1 300 448-1512
F2 195 380-1373
F3 90 357-912
SC750 F1 370 394-2181
F2 300 342-2020
F3 230 267-1814
F4 120 248-1165
F5 85 185-1170

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Rotor diameter×length (mm) Feed Opening Length×width(mm) Feeding Size (mm) Processing Capacity(t/h) Power (kw) Dimensions L×W×H (mm)
PCZ1308 Φ1330×790 870×780 ≤380 60-160 132 2880×2130×2390
PCZ1410 Φ1400×1000 1060×740 ≤450 80-210 2×90(160) 2830×2100×2485
PCZ1610 Φ1600×1000 1090×930 ≤480 100-230 2×132 3370×2415×2750
PCZ1612 Φ1600×1200 1340×1140 ≤500 120-350 2×160 3370×2613×2750
PCZ1615 Φ1600×1500 1570×1140 ≤550 200-550 2×200 3370×2925×2750
PCZ1716 Φ1700×1600 1420×1200 ≤600 400-850 2×250 3520×3000×3210
PCZ1720 Φ1700×2000 2030×1200 ≤650 500-1000 2×400 3670×3390×3330
PCZ1920 Φ1900×2000 1980×1210 ≤750 800-1500 2×500 4490×3910×3600
PCZ2225 Φ2200×2500 2530×1610 ≤1000 1500-3000 1250 4890×5010×4560

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Feeding Size (mm) Processing Capacity(t/h)
PCZ1308 ≤380 60-160
PCZ1410 ≤450 80-210
PCZ1610 ≤480 100-230
PCZ1612 ≤500 120-350
PCZ1615 ≤550 200-550
PCZ1716 ≤600 400-850
PCZ1720 ≤650 500-1000
PCZ1920 ≤750 800-1500
PCZ2225 ≤1000 1500-3000

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Feeding opening size L×W（mm） Maximum Feeding size（mm） Adjustment range of discharge port（mm） Capacity（t/h） Power（KW） Dimensions L×W×H（mm）
CJ80 800×510 410 40-175 55-335 4P 75 2660×2162×1800
CJ96 930×580 480 60-175 105-390 4P 90 2850×2180×1990
CJ100 1000×760 600 70-200 150-420 4P 110 3535×2350×2510
CJ106 1060×700 560 70-200 150-500 4P 110 3280×2510×2400
CJ116 1150×760 608 70-200 165-580 4P 132 3840×2440×2650
CJ120 1200×870 700 70-200 175-610 4P 160 3700×2790×2950
CJ125 1250×950 760 100-250 270-831 4P 160 4230×2820×3080
CJ130 1300×1000 800 100-250 270-831 4P 185 4220×2810×3330
CJ150 1400×1200 960 125-250 340-880 4P 200 5040×3445×3970
CJ160 1600×1200 960 150-300 430-1145 4P 250 5780×3460×3840
CJ180 1800×1200 960 150-300 500-1300 6P 315 5640×3780×3920
CJ200 2000×1500 1200 175-300 630-1435 6P 400 6600×4040×4580

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Maximum Feeding size（mm） Capacity（t/h）
CJ80 410 55-335
CJ96 480 105-390
CJ100 600 150-420
CJ106 560 150-500
CJ116 608 165-580
CJ120 700 175-610
CJ125 760 270-831
CJ130 800 270-831
CJ150 960 340-880
CJ160 960 430-1145
CJ180 960 500-1300
CJ200 1200 630-1435

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model Maximum Feeding Size (mm) Power (kw) Capacity (t/h) Dimensions(L×W×H)(mm)
CI1110 250 160 60-210 2826×2087×2285
CI1213 300 200 80-280 2903×2530×2411
CI1316 300 250 100-350 3320×2770×2535
CI1321 300 315 130-430 2955×3285×2585
CI1521 350 2×(200-250) 200-600 3450×3620×2770
Cl1524 350 2×315 240-700 3450×3925×2855
Cl1630 400 710-800 300-900 3693×4520×3173



Model Maximum Feeding Size (mm) Power (kw) Capacity (t/h) Dimensions(L×W×H)(mm)
CI1313 600 200 100-480 2972×2560×2937
CI1415 600 250 120-600 2985×2790×3068
CI1620 800 2×(200-250) 220-900 4261×3480×3780
CI2023 800 2×500 400-2000 5151×4424×4712
Model Maximum Feeding Size (mm) Capacity(t/h)
CI1110 250 60-210
CI1213 300 80-280
CI1316 300 100-350
CI1321 300 130-430
CI1521 350 200-600
Cl1524 350 240-700
Cl1630 400 300-900



Model Maximum Feeding Size (mm) Capacity(t/h)
CI1313 600 100-480
CI1415 600 120-600
CI1620 800 220-900
CI2023 800 200-2000

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Need some help?

Talk to our experts about how we can help you today

Get in touch

Messages welcome

Helping us to understand your needs will help us to ensure we're getting you the best advice.

FTM will use your personal data to respond to your enquiry. Your personal data will be deleted when this purpose is fulfilled or if you actively opt-out in beforehand.

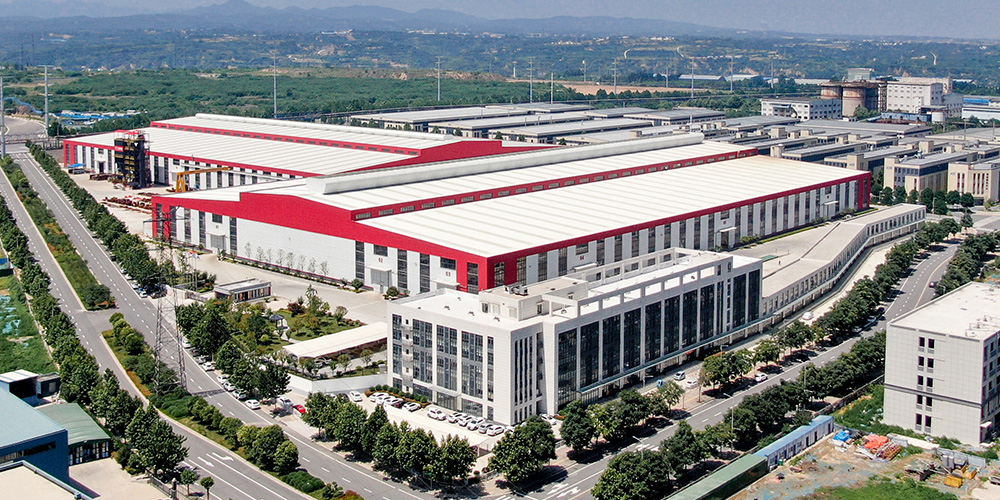

Fote Heavy Machinery With a 40 year history
