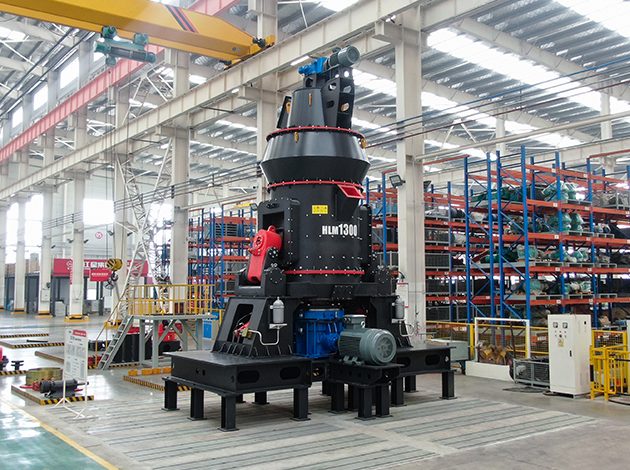

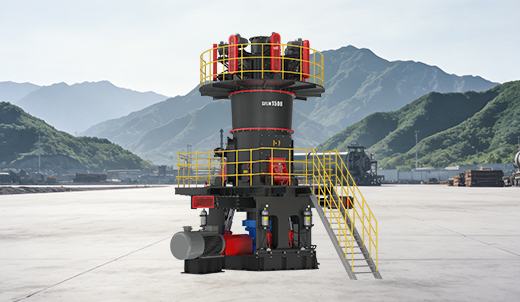

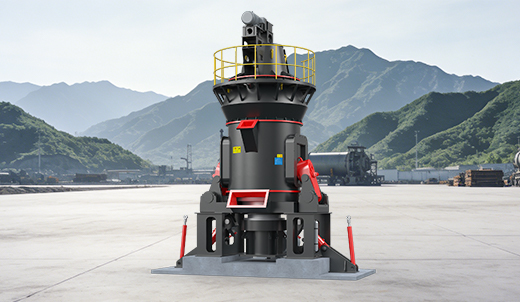

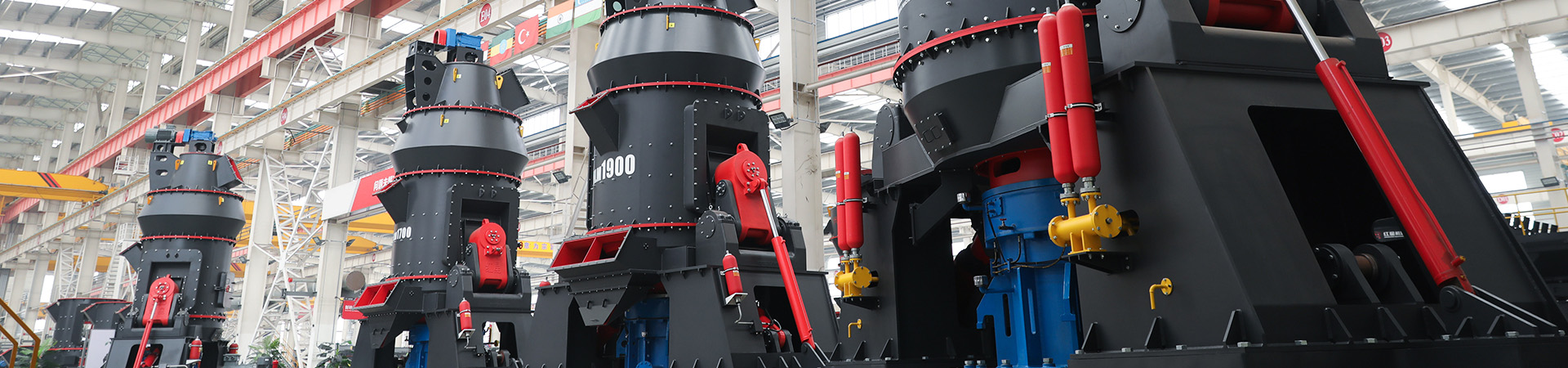

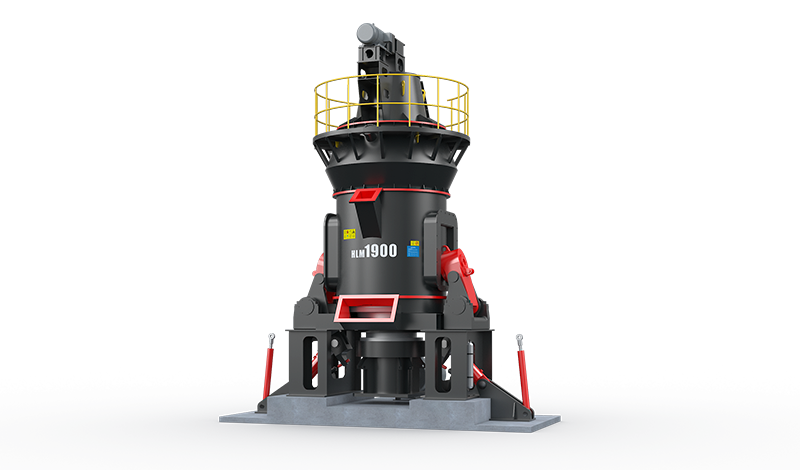

Vertical Mill Vertical Mill

Vertical Mill

  • Capacity:10-500t/h
  • Output Size:≤2500mesh
  1. Home
  2. Product
  3. Vertical Mill

Brief Introduction

Vertical mill is a large-scale, high-efficiency and energy-saving grinding equipment developed for the powder processing field, which innovatively integrates four functions of grinding, classification, drying and conveying. It has complete independent intellectual property rights, and its core technology and economic indicators have reached the international advanced level. The equipment can flexibly process dozens of materials such as cement raw meal, clinker, slag, limestone, calcite, talc, with a wide fineness adjustment range, and it is a high-efficiency alternative to traditional equipment such as ball mills, and also the core equipment for large-scale and intelligent powder processing projects.

  • Application area:metallurgy, chemical industry,non-metallic minerals,cement building materials,coal energy, electric power and other industries.
Get Price Now Leave Message
Vertical Mill

Material

  • Limestone

  • CaCO₃

  • Talc

  • Clinker

  • Gypsum

  • Kaolin

Product Advantage

  • Wide range of humidity of grindable materials

    Vertical mill pulverizing system does not need to be equipped with another dryer, and can directly pass the hot air, in the mill for many times with the full contact with the powder material drying. By adjusting the temperature of the hot air, it can meet the drying requirements of materials with different humidity, the highest humidity of materials can be up to 15% of the drying.

  • Clean and environmental protection

    Small vibration, low noise, noise is not higher than 80dB, and the use of full negative pressure operation, no dust overflow, reliable sealing, choose a special pulse dust collector according to different materials, dust removal efficiency up to 99.9%, higher than the latest national environmental protection standards.

  • High product purity

    Limit device to ensure that the grinding disk and rollers are not in direct contact with each other during the working process, the iron content in the product is very low, and the mill consumption per unit of product is generally not higher than 1/100000, and the iron contained in the mechanical abrasion is easy to be removed, which effectively ensures the whiteness and purity of the material.

  • Simple operation and maintenance

    The hydraulic maintenance device can easily turn the grinding rolls out of the machine, and is convenient to replace the roller sleeve and overhaul the grinding rolls.

  • High efficiency and energy saving

    The grinding rolls and discs are made of special materials, and the roller sleeve can be turned over for long service life. Based on years of production experience, the structure of the roller mill is constantly optimized, which improves the output and production efficiency. Equipped with hydraulic loading system, the roller pressure can be flexibly adjusted according to the change of grindability, high efficiency and energy saving.

Product Photos

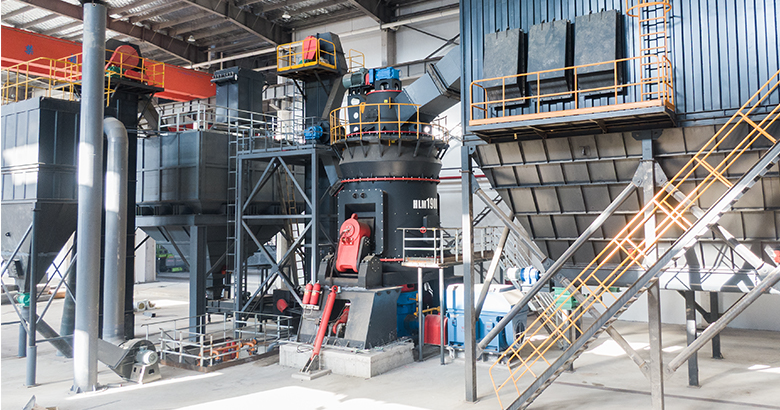

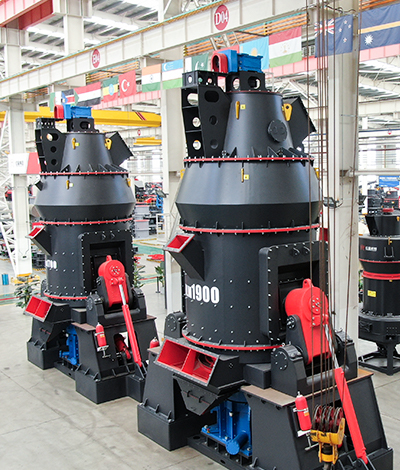

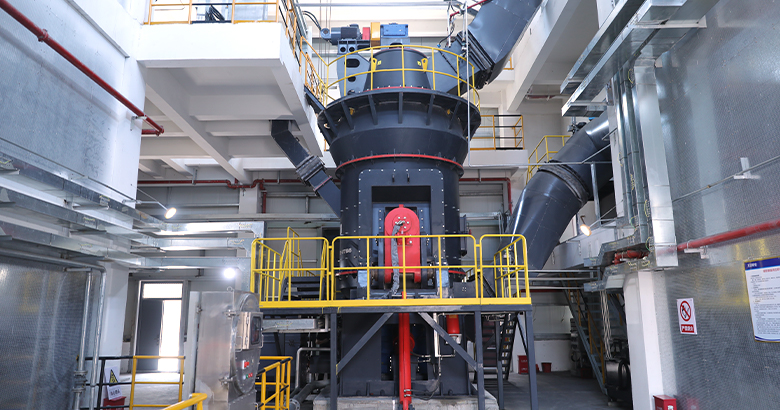

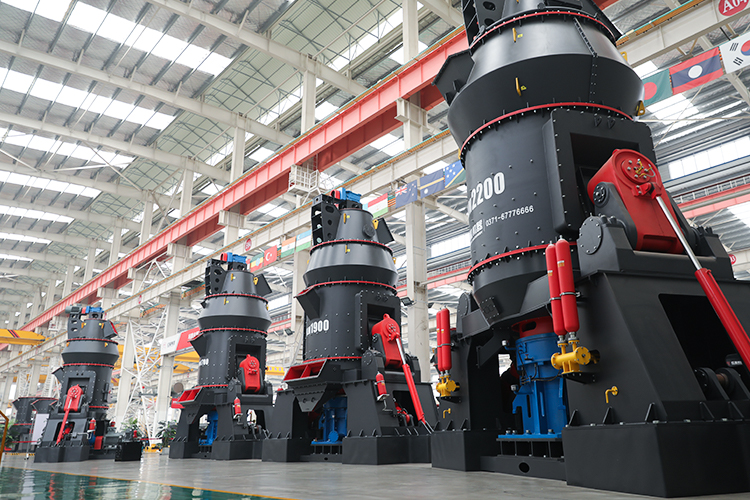

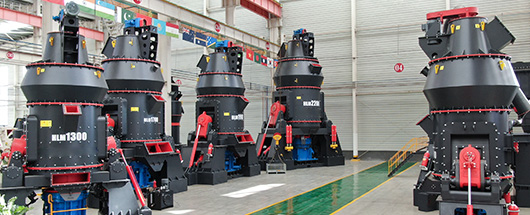

  • Production site

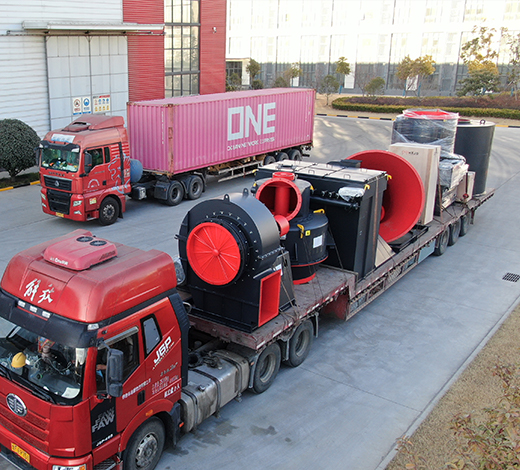

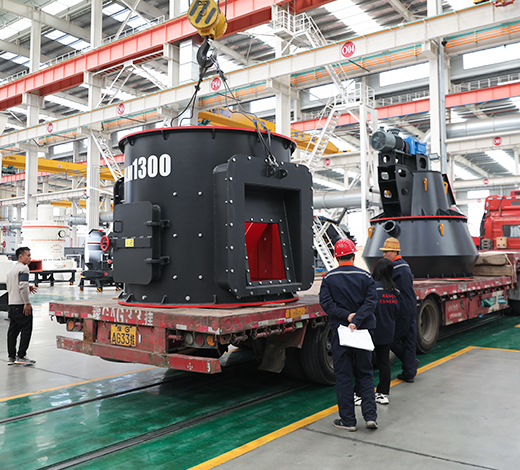

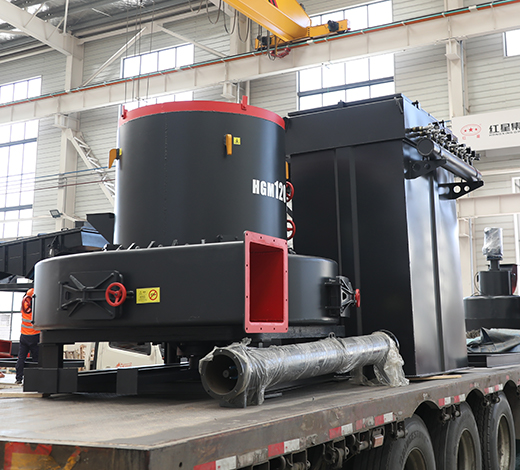

  • Delivery Site
  • Videos

Customer reviews

  • Capacity: 50TPH

  • Material: Limestone

Avatar Stefan Hoffmann★★★★★

Germany Lukas: Efficient Grinding

This vertical mill is far more cost-effective than the equipment we used before. It runs stably, consumes less energy, and the finished powder is uniform. The quality is reliable, we will purchase again and recommend it to partners.

56m agoGermany

  • Capacity: 25TPH

  • Material: Calcite

Avatar Agus Pratama★★★★★

Indonesia Siti: Superior Grinding

The vertical mill is easy to operate, and we don’t need too many operators. The grinding effect is very good, the finished product meets our production needs, and its quality is far better than similar products. Highly recommended!

3m agoIndonesia

Related Products

Technical Parameter

Specifications Capacity(t/h) Pulverized coal fineness The raw coal moisture Pulverized coal moisture Main motor power(kW)
HLM1200M 6—10 R0.08=5-15% ≤15% ≤1-5% 110-132
HLM1300M 10-15 160—200
HLM1500M 15—20 220—280
HLM1700M 20-30 280-355
HLM1900M 26-35 355—450
HLM2200M 35-50 450—560
HLM2400M 45-55 560-710
HLM2800M 60-80 900—1120

Note:Raw coal HGl≥55

Specifications Capacity(t/h) Main motor power(kW)
HLM1200M 6—10 110-132
HLM1300M 10-15 160—200
HLM1500M 15—20 220—280
HLM1700M 20-30 280-355
HLM1900M 26-35 355—450
HLM2200M 35-50 450—560
HLM2400M 45-55 560-710
HLM2800M 60-80 900—1120

Note:Raw coal HGl≥55

Specifications Capacity(t/h) The finished product fineness The raw material moisture The finished product moisture Main motor power(kW)
HLM1300K 10-40 0.84-0.37mm (20-400 mesh) ≤15% ≤1% 200
HLM1500K 13-50 280
HLM1700K 18-70 400
HLM1900K 20-85 500
HLM2200K 35-135 800-900
HLM2400K 40-160 900-1120
HLM2800K 50-200 1120-1250
HLM3400K 70-260 1800-2000
HLM3700K 90-320 2500-2800

Note: The grindability (Bond) index of raw materials is less than or equal to 13kw/t

Specifications Capacity(t/h) Main motor power(kW)
HLM1300K 10-40 200
HLM1500K 13-50 280
HLM1700K 18-70 400
HLM1900K 20-85 500
HLM2200K 35-135 800-900
HLM2400K 40-160 900-1120
HLM2800K 50-200 1120-1250
HLM3400K 70-260 1800-2000
HLM3700K 90-320 2500-2800

Note: The grindability (Bond) index of raw materials is less than or equal to 13kw/t

Specifications Capacity(t/h) Specific surface area Slag moisture Mineral moisture Main motor power(kW)
HLM17-2N 6-10 ≥420㎡/kg ≤15% ≤1% 200-220
HLM19-2N 8-13 280-315
HLM21-2N 10-15 400-450
HLM24-2N 12-18 500-560
HLM28-2N 22-30 900-1000
HLM35-3N 55-70 1800-2000
HLM42-4N 70-100 2500-2800
HLM46-4N 85-135 3150-3800
HLM53-4N 130-165 4500-5000

Note: Slag grindability (Bond) index ≤25kw/t; Steel slag grindability (Bond) index ≤30kw/t; The production of steel slag is reduced by about 30-40% when it is ground.

Specifications Capacity(t/h) Main motor power(kW)
HLM17-2N 6-10 200-220
HLM19-2N 8-13 280-315
HLM21-2N 10-15 400-450
HLM24-2N 12-18 500-560
HLM28-2N 22-30 900-1000
HLM35-3N 55-70 1800-2000
HLM42-4N 70-100 2500-2800
HLM46-4N 85-135 3150-3800
HLM53-4N 130-165 4500-5000

Note: Slag grindability (Bond) index ≤25kw/t; Steel slag grindability (Bond) index ≤30kw/t; The production of steel slag is reduced by about 30-40% when it is ground.

Specifications Capacity(t/h) Product fineness The raw material moisture Main motor power(kW)
≤80μm ≤2mm
HLM17-2Y 12-20 ≥30% ≥90% ≤3% 200
HLM19-2Y 18-25 280
HLM21-2Y 25-35 400
HLM24-2Y 30-45 500
HLM28-2Y 60-80 900
HLM35-3Y 125-165 1800
HLM42-4Y 200-230 2500
HLM46-4Y 250-300 3150
HLM53-4Y 360-420 4500

Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t

Specifications Capacity(t/h) Main motor power(kW)
HLM17-2Y 12-20 200
HLM19-2Y 18-25 280
HLM21-2Y 25-35 400
HLM24-2Y 30-45 500
HLM28-2Y 60-80 900
HLM35-3Y 125-165 1800
HLM42-4Y 200-230 2500
HLM46-4Y 250-300 3150
HLM53-4Y 360-420 4500

Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t

Specifications Capacity(t/h) Specific surface area The raw material moisture The finished product moisture Main motor power(kW)
HLM19S 8-13 ≥380㎡/kg ≤5% ≤1% 280-315
HLM21S 11-18 400-450
HLM24S 15-20 500-560
HLM28S 28-35 900-1000
HLM35S 70-80 1800-2000
HLM42S 95-110 2500-2800
HLM46S 130-150 3150-3800
HLM53S 160-200 4500-5000

Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t

Specifications Capacity(t/h) Main motor power(kW)
HLM19S 8-13 280-315
HLM21S 11-18 400-450
HLM24S 15-20 500-560
HLM28S 28-35 900-1000
HLM35S 70-80 1800-2000
HLM42S 95-110 2500-2800
HLM46S 130-150 3150-3800
HLM53S 160-200 4500-5000

Note: The grindability (Bond) index of raw materials is less than or equal to 18kw/t

Specifications Feed particle size(mm) Capacity(t/h) Product fineness The raw material moisture Main motor power(kW)
HLM1200X ≤10 2-6 Screen passing rate of 10-40μm 97% ≤4% 132
HLM1300X ≤10 3-10 220
HLM1500X ≤10 4-13 315
HLM1700X ≤15 7-18 450
HLM1900X ≤15 8-23 560
HLM2200X ≤20 13-35 800
HLM2400X ≤20 15-45 1000

Note: Mohs hardness grade 4 or below

Specifications Feed particle size(mm) Capacity(t/h) Main motor power(kW)
HLM1200X ≤10 2-6 132
HLM1300X ≤10 3-10 220
HLM1500X ≤10 4-13 315
HLM1700X ≤15 7-18 450
HLM1900X ≤15 8-23 560
HLM2200X ≤20 13-35 800
HLM2400X ≤20 15-45 1000

Note: Mohs hardness grade 4 or below

Models Main machine power
(kW)		 Powder classifier power
(kW)		 Fan Power
(kW)		 Grinding material particle size D90
(mm)		 Moisture of grinding material Capacity
(t/h)
SFLM1000 132-185 4×15 90-132 <10(Max15) <3% 3-12
SFLM1200 220-280 6×15 185-200 4-14
SFLM1300 315-355 7×15 200-250 5-16
SFLM1500 355-400 8×15 280-315 7-18
SFLM1700 450-500 9×15 315-355 8-22

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Models Main machine power
(kW)		 Capacity
(t/h)
SFLM1000 132-185 3-12
SFLM1200 220-280 4-14
SFLM1300 315-355 5-16
SFLM1500 355-400 7-18
SFLM1700 450-500 8-22

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
