Vibrating Screen

Vibrating Screen

Vibrating Screen

Capacity:≤1800t/h
Feeding Size:≤200mm

Brief Introduction

Vibrating screens are the core equipment for material classification, impurity removal and dehydration in mining, building materials, metallurgy and other industries. Driven by the vibration force generated by the excitation device, materials move reciprocally on the screen surface to achieve precise screening according to particle size. Our vibrating screen series includes circular vibrating screens, linear vibrating screens, high-frequency vibrating screens and other models, which can adapt to the screening needs of different materials such as sand and gravel, ore and coal. With the characteristics of high screening efficiency, stable operation and easy maintenance, it can be customized according to the production line capacity and material characteristics, helping customers achieve an efficient material processing process.

Application area：Quarrying and Mining,Aggregate production,Construction waste recycling,Road construction & infrastructure,Concrete Batching Plant,Dry Mortar, Power Plant Desulfurization etc.

Get Price Now Leave Message

Vibrating Screen

Material

river pebbles
construction waste
granite
limestone
basalt
iron ore

Product Advantage

High Screening Efficiency

Strong exciting force, fast material stratification, high screening rate and stable classification effect.
Stable & Reliable Operation

Sturdy and durable structure, low failure rate, suitable for long-term continuous production.
Wide Application Range

Suitable for screening ore, sand, coal, chemical materials and other materials.
Easy Maintenance

Easy replacement of wearing parts, simple screen installation and low operating cost.
Low Energy & Low Noise

Reasonable power design, smooth operation, energy saving and low noise.

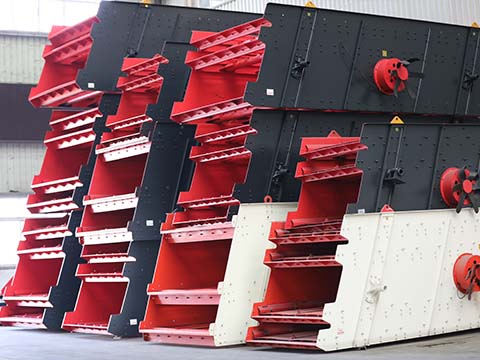

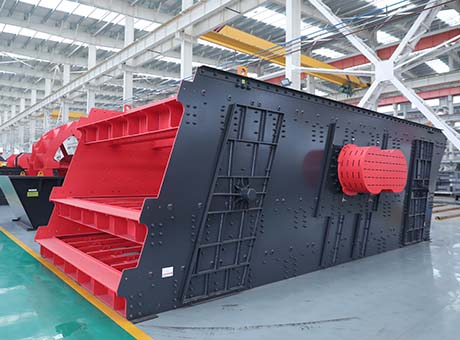

Product Photos

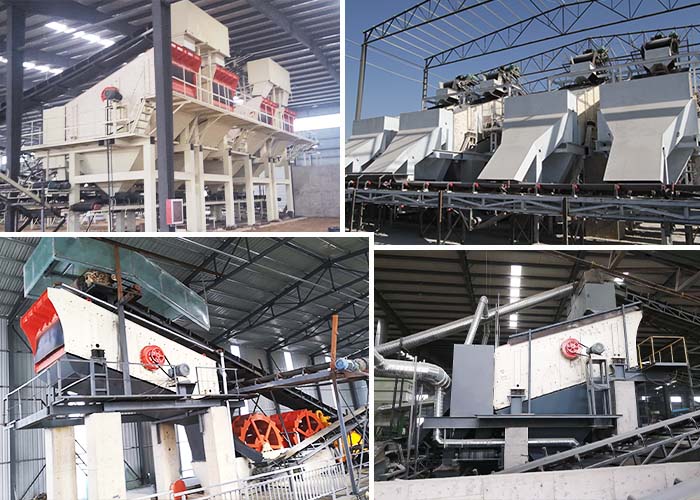

Production site
Delivery Site
Videos

Customer reviews

Capacity: 50TPH
Material: Quartz Sand

Dmitry ★★★★★

Russian Quartz Sand Screening Project

This vibrating screen has high screening accuracy, which can effectively solve the problem of quartz sand agglomeration and screen clogging. It runs stably and quietly, and the later maintenance is very simple, which fully meets our production needs.

55m agoRussia

Capacity: 30TPH
Material: Limestone

Azman ★★★★★

Malaysian Limestone Screening Project

The vibrating screen has a reasonable structural design, easy screen replacement, and the screened limestone has uniform particle size. In addition, it has low energy consumption and low failure rate, which greatly improves the production efficiency of our crushing workshop.

46m agoMalaysia

Related Products

HX(D)series Heavy Vibating Screen
YK Series Vibating Screen
LH Series Triaxial Elliptical Screen
SG Series Heavy Duty Grizzly Vibrating Screen
LS Series Linear Screen

Technical Parameter

YK series vibrating screen
SG series heavy-duty bar vibrating screen
LH series three-axis elliptical vibrating screen
LS series linear sieve
HX-D series thin oil circular vibrating screen

Model	Sieve Layer	Sieve Area (㎡)	Mesh Size (mm)	Max.Feeding Size (mm)	Processing capacity (m³/h)	Vibrating Frequency (r/min)	Double Amplitude (mm)	Power (kw)	Sieve Obliquity (°)	Sieve Specification (mm)	Dimensions (L×W×H) (mm)
2YK1230	2	7.2	4-50	200	12-78	970	6	6P 7.5	20	1200×3000	3530×1885×920
3YK1230	3	10.8	4-50	200	13-80	970	6	6P 7.5	20	1200×3000	3675×1885×1320
2YK1237	2	8.88	4-50	200	15-86	970	6	6P 7.5	20	1200×3700	4230×1990×920
3YK1237	3	13.32	4-50	200	16-90	970	6	6P 7.5	20	1200×3700	4375×1990×1320
2YK1548	2	14.4	5-50	200	22.5-162	970	6	6P 11	20	1500×4800	5355×2195×1030
3YK1548	3	21.6	5-50	200	22.5-162	970	6	6P 15	20	1500×4800	6055×2195×1740
4YK1548	4	28.8	5-50	200	22.5-162	970	6	6P 18.5	20	1500×4800	6195×2195×2120
2YK1854	2	19.44	5-80	200	32-312	970	6	6P 22	20	1800×5400	6515×2555×1370
3YK1854	3	29.16	5-80	200	32-312	970	6	6P 22	20	1800×5400	6655×2555×1750
4YK1854	4	38.88	5-80	200	32-336	970	6	6P 22	20	1800×5400	6790×2555×2130
2YK2160	2	25.2	5-100	200	50-475	970	6	6P 30	20	2100×6000	7200×2945×1580
3YK2160	3	37.8	5-100	200	50-475	970	6	6P 30	20	2100×6000	7340×2945×1980
4YK2160	4	50.4	5-100	200	50-497	970	6	6P 37	20	2100×6000	7490×2945×2380
2YK2460	2	28.8	5-100	200	65-550	970	6	6P 30	20	2400×6000	7200×3200×1580
3YK2460	3	43.2	5-100	200	70-620	970	6	6P 37	20	2400×6000	7340×3200×1980
4YK2460	4	57.6	5-100	200	80-680	970	6	6P 45	20	2400×6000	7490×3200×2380
2YK2866	2	31	5-100	200	70-650	970	6	6P 37	20	2800×5600	6950×3610×1790
3YK2866	3	47	5-100	200	80-700	970	6	6P 45	20	2800×5600	7130×3610×2270
4YK2866	4	62	5-100	200	90-750	970	6	6P 55	20	2800×5600	7300×3610×2750
2YK2873	2	39.2	5-100	200	70-680	970	6	6P 37	20	2800×6500	7850×3587×1790
3YK2873	3	58.8	5-100	200	80-720	970	6	6P 45	20	2800×6500	8025×3587×2270
4YK2873	4	58.8	5-100	200	90-950	970	6	6P 55	20	2800×6500	8200×3587×2750

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Sieve Layer	Sieve Area (㎡)	Processing capacity (m³/h)
2YK1230	2	7.2	12-78
3YK1230	3	10.8	13-80
2YK1237	2	8.88	15-86
3YK1237	3	13.32	16-90
2YK1548	2	14.4	22.5-162
3YK1548	3	21.6	22.5-162
4YK1548	4	28.8	22.5-162
2YK1854	2	19.44	32-312
3YK1854	3	29.16	32-312
4YK1854	4	38.88	32-336
2YK2160	2	25.2	50-475
3YK2160	3	37.8	50-475
4YK2160	4	50.4	50-497
2YK2460	2	28.8	65-550
3YK2460	3	43.2	70-620
4YK2460	4	57.6	80-680
2YK2866	2	31	70-650
3YK2866	3	47	80-700
4YK2866	4	62	90-750
2YK2873	2	39.2	70-680
3YK2873	3	58.8	80-720
4YK2873	4	58.8	90-950

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Size (mm)	Power (kw)	Tiers	Processing Capacity (t/h)	Amplitude (mm)	Vibration Intensity	Installation Angle	Separation Particle Size (mm)	Maximum Feeding Size (mm)
SG1231	1200×3000	2×7.5	1	300-700	5-14	Maximum4.5G	5°-10°	60-250	500
SG1242	1200×3900	2×11	2	300-700	5-14	Maximum4.5G	5°-10°	60-250	500
SG1541	1500×3900	2×11	1	600-1100	5-14	Maximum4.5G	5°-10°	60-250	700
SG1542	1500×3900	2×15	2	600-1100	5-14	Maximum4.5G	5°-10°	60-250	700
SG1841	1800×3900	2×11	1	800-1300	5-14	Maximum4.5G	5°-10°	60-250	900
SG1842	1800×3900	2×22	2	800-1300	5-14	Maximum4.5G	5°-10°	60-250	900
SG2151	2100×4800	2×22	1	900-1500	5-14	Maximum4.5G	5°-10°	60-250	1200
SG2451	2400×4800	2×30	1	1000-1800	5-14	Maximum4.5G	5°-10°	60-250	1500

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Tiers	Processing Capacity (t/h)	Maximum Feeding Size (mm)
SG1231	1	300-700	500
SG1242	2	300-700	500
SG1541	1	600-1100	700
SG1542	2	600-1100	700
SG1841	1	800-1300	900
SG1842	2	800-1300	900
SG2151	1	900-1500	1200
SG2451	1	1000-1800	1500

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Amplitude (mm)	Rotating speed (r/min)	Maximum feeding size (mm)	Processing Capacity (t/h)	Power (kw)
2LH1860	14-18	645-875	150	160-320	30
3LH1860	14-18	645-875	150	160-320	30
2LH2060	14-18	645-875	150	200-385	30
3LH2060	14-18	645-875	150	200-385	30
2LH2460	14-18	645-875	150	240-462	37
3LH2460	14-18	645-875	150	240-462	37

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Rotating speed (r/min)	Processing Capacity (t/h)	Power (kw)
2LH1860	645-875	160-320	30
3LH1860	645-875	160-320	30
2LH2060	645-875	200-385	30
3LH2060	645-875	200-385	30
2LH2460	645-875	240-462	37
3LH2460	645-875	240-462	37

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Screen mesh size (mm)	Power (kw)			Separation grain sizes (mm)	Processing Capacity (t/h)	Amplitude (mm)	Vibration Intensity	Maximum feeding size (mm)
Model	Screen mesh size (mm)	One layers	Two layers	Three layers	Separation grain sizes (mm)	Processing Capacity (t/h)	Amplitude (mm)	Vibration Intensity	Maximum feeding size (mm)
LS1550	1500×5000	2×11	2×11	2×15	2-100	70-300	5-16	5.0G	300
LS1860	1800×6000	2×11	2×15	2×22	2-100	90-400	5-16	5.0G	300
LS2160	2100×6000	2×11	2×15	2×22	2-100	100-450	5-16	5.0G	300
LS2460	2400×6000	2×15	2×22	2×30	2-100	110-500	5-16	5.0G	300
LS2770	2700×7000	一	2×30	一	2-100	130-600	5-16	5.0G	300
LS3060	3000×6000	一	2×30	一	2-100	140-650	5-16	5.0G	300
LS3070	3000×7000	一	2×30	一	2-100	140-700	5-16	5.0G	300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Separation grain sizes (mm)	Processing Capacity (t/h)	Maximum feeding size (mm)
LS1550	2-100	70-300	300
LS1860	2-100	90-400	300
LS2160	2-100	100-450	300
LS2460	2-100	110-500	300
LS2770	2-100	130-600	300
LS3060	2-100	140-650	300
LS3070	2-100	140-700	300

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Sieve Layer	Sieve obliquity (°)	Vibrating Frequency (r/min)	Max.Feeding Size (mm)	Processing Capacity (t/h)	Power (kw)	Mesh Size (mm)	Double Amplitude (mm)	Dimensions (LxWxH) (mm)
2HX3075D	2	15-20	600-1100	300	130-1300	22×2	1-140	5-13	8695×4080×2145
3HX3075D	3	15-20	600-1100	300	140-1300	37×2	1-140	5-13	8940×4095×2885
2HX3085D	2	15-20	600-1100	300	150-1300	37×2	1-140	5-13	9892×3909×2140
3HX3085D	3	15-20	600-1100	300	160-1300	45×2	1-140	5-13	10132×4100×2880
2HX3685D	2	15-20	600-1100	300	200-1500	37×2	1-140	5-13	9500×5420×2200
3HX3685D	3	15-20	600-1100	300	220-1500	45×2	1-140	5-13	9780×5505×3050

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.

Model	Sieve Layer	Sieve obliquity (°)	Processing Capacity (t/h)
2HX3075D	2	15-20	130-1300
3HX3075D	3	15-20	140-1300
2HX3085D	2	15-20	150-1300
3HX3085D	3	15-20	160-1300
2HX3685D	2	15-20	200-1500
3HX3685D	3	15-20	220-1500

Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
