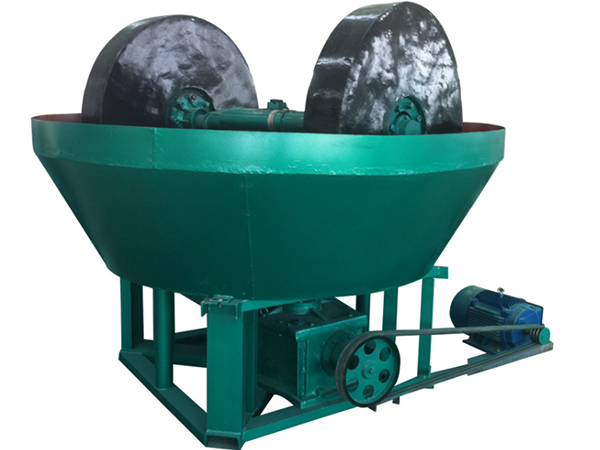

Wet pan mill

Wet pan mill

  • Capacity: 1-50t/h

  • Feed size: ≤30mm

  • Applied Materials : Gold Ore, Copper Ore, Iron Ore, Molybdenum, Quartz, silver, lead, zinc,etc


Get Price Now Leave Message

what can i do for you

40 Years history production base and exporter

Contact Us ( sales@sinofote.com )

Introduction

The wet pan mill can be used for the grinding operations of gold, silver, copper, iron, molybdenum, quartz and other ores, especially in the grinding work of various vein gold mines, rock gold mines, placer gold mines, and associated gold mines. A wide range of minerals (natural gold, fractured gold, coated gold, fine-grained gold, fine-grained gold) can achieve good grinding indicators, providing favorable conditions for subsequent gold selection operations.

High grinding efficiency

Large crushing ratio; the proportion of 80-200 mesh products can reach more than 95%.

Durable in use

The machine is assembled with special casting parts and it has precision design which makes the machine to be durable.

Low investment

Wet pan mill has simple structure and less wearing parts thus easy to do maintenance and request low investment.

 ------Working Principle------

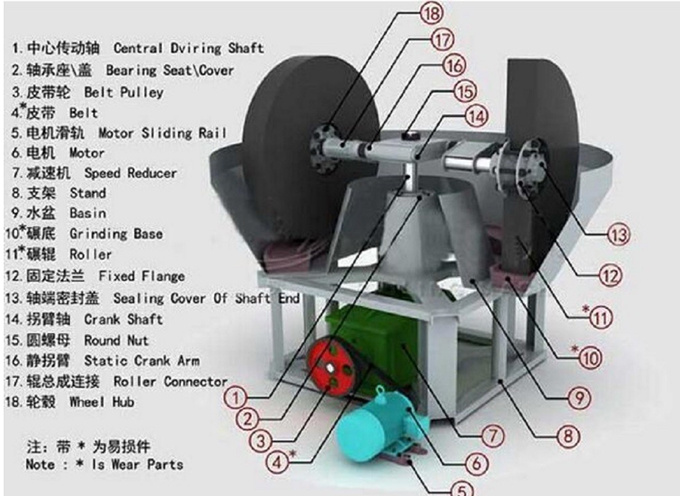

The motor is driven by the V-belt to the gearbox, and then the gearbox drives the rollers, so that the rollers rotate in a clockwise direction. When the raw materials in the basin rotate with the rollers, they follow the rotation of the rollers, so as to achieve the purpose of uniform mixing. At the same time, raw materials are stirred-rolled-crushed-rolled repeatedly with the friction of rollers and the pan to achieve a certain degree of fineness and then discharged with water to achieve the purpose of beneficiation.

Wet pan mill is used for the recovery of tailings in the mineral ore process, without the loss of mineral powder, so that effective resources can be fully utilized.

Our Services

1. We will provide you the prophase plan,process flow design and manufacturer equipment according to your special requests.

2. Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

3. We will regularly pay return visit to customers to establish long term friendship. Supplying technique, building design, instruction, installation and debugging for free.

4. We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.

Technical Parameters

ModelRoller dia. (mm)Pan dia. (mm)Suggest feeding size (mm)Daily capacity(t)power (kw)Rotation speed (rpm)
11001100178030104P5.517-19
12001200178030156P7.517-19
14001400188030256P1516-18
15001500188030356P2219-21
16001600188030456P3019-21

Our Partners

Through long-term arduous technology research and international communication, our product quality has been in line with international level, winning a world-wide acclaim and honor, and our products are exported to ninety countries and regions like Tanzania, Nigeria, South Africa, Kenya, Turkey, Saudi Arabia, Philippines, Indonesia, Malaysia, Vietnam, Mexico, Brazil, Russia, Uzbekistan, Australia, etc.
