Our independently developed crawler crushing and screening station is a mobile crushing and screening system based on a fully hydraulically driven crawler chassis. This equipment offers numerous advantages, including the elimination of complex infrastructure construction. Its integrated design integrates crushing, screening, and conveying equipment onto a mobile platform. The crawler system allows for easy transfer between sites, significantly reducing construction costs and increasing equipment flexibility and utilization. Equipped with an advanced intelligent control system, it enables easy remote operation, enabling start-up, shutdown, and parameter adjustment. Furthermore, the equipment utilizes a renowned engine that complies with the latest emission standards, along with advanced hydraulic and power systems. Combined with advanced dust and noise reduction technologies, this minimizes the equipment's impact on the site environment, ensuring environmentally friendly production practices.

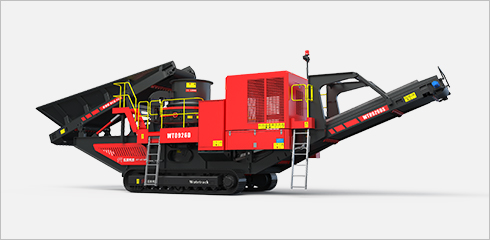

Used for rough breaking and pre-crushing

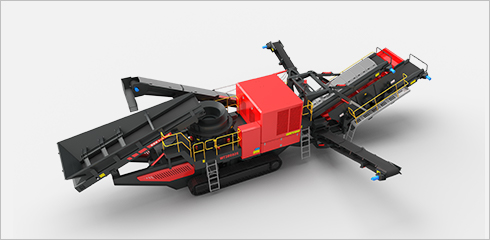

Used for Secondary and Tertiary crushing

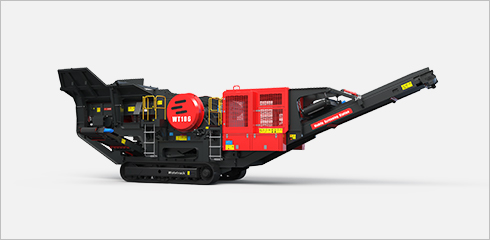

Used for Primary and Secondary crushing, to make sure the higher crushing capacity and produce high quality products with cubic shape

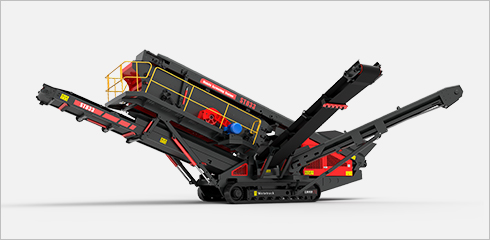

Used for crushed or coarse material screening

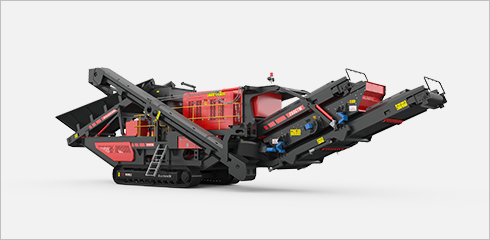

The integrated design of crushing and screening machine equipment reduces the cost of equipment

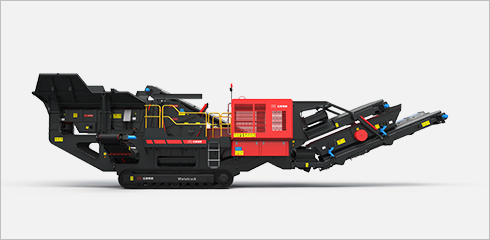

Used for tertiary crushing, sand making and reshaping
| SPECIFICATIONS | ST 722 | ST 833 | ST 833S | ST 1083 | ST 1083S | ST 6203 | |
| Feeding Device | Maximum Feeding Size(mm) | 400 | 150 | 150 | 200 | 200 | 200 |
| Feeding Height(mm) | 3200 | 3620 | 2450 | 3650 | 2500 | 3000 | |
| Hopper Volume(m³) | 7 | 8 | 2.5 | 8 | 3 | 8 | |
| Feeding Conveyor | W×L(mm) | 1200×4000 | 1200×4300 | 1200×4300 | 1200×6000 | ||
| Type | Variable Velocity | Variable Velocity | Variable Velocity | Variable Velocity | |||
| Charging Conveyer | W×L(mm) | 1000×11000 | 1000×11000 | 1200×11500 | 1200×11500 | ||
| Vibrating Screen | Type | Double-deck Vibrating Screen | Three-deck Vibrating Screen | Three-deck Vibrating Screen | Three-deck Vibrating Screen | Three-deck Vibrating Screen | Three-deck Vibrating Screen |
| Screening Surface Size(mm) | 1500×4800 | 1500×5500 | 1500×5500 | 1800×6000 | 1800×6000 | 1830×6100 | |
| Fine Product Conveyor | W×L(mm) | 800×8000 | 1200×7500 | 1200×7500 | 1400×8000 | 1400×8000 | 800×8000 |
| Feed Height(mm) | 3600 | 4100 | 4100 | 4100 | 4100 | 3400 | |
| Fine and Medium Product Conveyor | W×L(mm) | 650×10000 | 650×10000 | 800×10000 | 800×10000 | 800×7000 | |
| Feed Height(mm) | 4800 | 4800 | 4800 | 4800 | 3400 | ||
| Medium Product Conveyor | W×L(mm) | 800×8000 | 800×10000 | 800×10000 | 800×10000 | 800×10000 | 800×7000 |
| Feed Height(mm) | 3300 | 4800 | 4800 | 4800 | 4800 | 3400 | |
| Transfer Conveyor | W×L(mm) | 1200×4000 | 650×2200 | 650×2200 | 650×2200 | 650×2200 | 1400×6500 |
| Coarse Product Conveyor | W×L(mm) | 1200×5500 | 500×9000 | 500×7500 | 650×9000 | 650×7500 | 1000×5500 |
| Feed Height(mm) | 3600 | 4900 | 4300 | 4900 | 4300 | 3600 | |
| Powertrain | Driving Mechanism | Diesel-Hydraulic Drive | Diesel-Hydraulic Drive | Diesel-Hydraulic Drive | Diesel-Hydraulic Drive | Diesel-Hydraulic Drive | Diesel-Hydraulic Drive |
| Engine | Cummins 81kW | Cummins 81kW | Cummins 81kW | Cummins 163kW | Cummins 163kW | Cummins 163kW | |
| Overall Dimension of Transportation | Length(mm) | 15700 | 17500 | 15500 | 18500 | 16500 | 18500 |
| Width(mm) | 3180 | 3100 | 3100 | 3400 | 3400 | 3260 | |
| Height(mm) | 3500 | 3500 | 3500 | 3650 | 3650 | 3600 | |
| Weight(t) | 32.6 | 35 | 31 | 40 | 36 | 42 | |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
ST 722 and ST 833
| SPECIFICATIONS | ST 722 | ST 833 | |
| Feeding Device | Maximum Feeding Size(mm) | 400 | 150 |
| Feeding Height(mm) | 3200 | 3620 | |
| Hopper Volume(m³) | 7 | 8 | |
| Feeding Conveyor | W×L(mm) | 1200×4000 | 1200×4300 |
| Type | Variable Velocity | Variable Velocity | |
| Charging Conveyer | W×L(mm) | 1000×11000 | |
| Vibrating Screen | Type | Double-deck Vibrating Screen | Three-deck Vibrating Screen |
| Screening Surface Size(mm) | 1500×4800 | 1500×5500 | |
| Fine Product Conveyor | W×L(mm) | 800×8000 | 1200×7500 |
| Feed Height(mm) | 3600 | 4100 | |
| Fine and Medium Product Conveyor | W×L(mm) | 650×10000 | |
| Feed Height(mm) | 4800 | ||
| Medium Product Conveyor | W×L(mm) | 800×8000 | 800×10000 |
| Feed Height(mm) | 3300 | 4800 | |
| Transfer Conveyor | W×L(mm) | 1200×4000 | 650×2200 |
| Coarse Product Conveyor | W×L(mm) | 1200×5500 | 500×9000 |
| Feed Height(mm) | 3600 | 4900 | |
| Powertrain | Driving Mechanism | Diesel-Hydraulic Drive | Diesel-Hydraulic Drive |
| Engine | Cummins 81kW | Cummins 81kW | |
| Overall Dimension of Transportation | Length(mm) | 15700 | 17500 |
| Width(mm) | 3180 | 3100 | |
| Height(mm) | 3500 | 3500 | |
| Weight(t) | 32.6 | 35 | |
ST 833S and ST 1083
| SPECIFICATIONS | ST 833S | ST 1083 | |
| Feeding Device | Maximum Feeding Size(mm) | 150 | 200 |
| Feeding Height(mm) | 2450 | 3650 | |
| Hopper Volume(m³) | 2.5 | 8 | |
| Feeding Conveyor | W×L(mm) | 1200×4300 | |
| Type | Variable Velocity | ||
| Charging Conveyer | W×L(mm) | 1000×11000 | 1200×11500 |
| Vibrating Screen | Type | Three-deck Vibrating Screen | Three-deck Vibrating Screen |
| Screening Surface Size(mm) | 1500×5500 | 1800×6000 | |
| Fine Product Conveyor | W×L(mm) | 1200×7500 | 1400×8000 |
| Feed Height(mm) | 4100 | 4100 | |
| Fine and Medium Product Conveyor | W×L(mm) | 650×10000 | 800×10000 |
| Feed Height(mm) | 4800 | 4800 | |
| Medium Product Conveyor | W×L(mm) | 800×10000 | 800×10000 |
| Feed Height(mm) | 4800 | 4800 | |
| Transfer Conveyor | W×L(mm) | 650×2200 | 650×2200 |
| Coarse Product Conveyor | W×L(mm) | 500×7500 | 650×9000 |
| Feed Height(mm) | 4300 | 4900 | |
| Powertrain | Driving Mechanism | Diesel-Hydraulic Drive | Diesel-Hydraulic Drive |
| Engine | Cummins 81kW | Cummins 163kW | |
| Overall Dimension of Transportation | Length(mm) | 15500 | 18500 |
| Width(mm) | 3100 | 3400 | |
| Height(mm) | 3500 | 3650 | |
| Weight(t) | 31 | 40 | |
ST 1083S and ST 6203
| SPECIFICATIONS | ST 1083S | ST 6203 | |
| Feeding Device | Maximum Feeding Size(mm) | 200 | 200 |
| Feeding Height(mm) | 2500 | 3000 | |
| Hopper Volume(m³) | 3 | 8 | |
| Feeding Conveyor | W×L(mm) | 1200×6000 | |
| Type | Variable Velocity | ||
| Charging Conveyer | W×L(mm) | 1200×11500 | |
| Vibrating Screen | Type | Three-deck Vibrating Screen | Three-deck Vibrating Screen |
| Screening Surface Size(mm) | 1800×6000 | 1830×6100 | |
| Fine Product Conveyor | W×L(mm) | 1400×8000 | 800×8000 |
| Feed Height(mm) | 4100 | 3400 | |
| Fine and Medium Product Conveyor | W×L(mm) | 800×10000 | 800×7000 |
| Feed Height(mm) | 4800 | 3400 | |
| Medium Product Conveyor | W×L(mm) | 800×10000 | 800×7000 |
| Feed Height(mm) | 4800 | 3400 | |
| Transfer Conveyor | W×L(mm) | 650×2200 | 1400×6500 |
| Coarse Product Conveyor | W×L(mm) | 650×7500 | 1000×5500 |
| Feed Height(mm) | 4300 | 3600 | |
| Powertrain | Driving Mechanism | Diesel-Hydraulic Drive | Diesel-Hydraulic Drive |
| Engine | Cummins 163kW | Cummins 163kW | |
| Overall Dimension of Transportation | Length(mm) | 16500 | 18500 |
| Width(mm) | 3400 | 3260 | |
| Height(mm) | 3650 | 3600 | |
| Weight(t) | 36 | 42 | |
Note:processing Capacity May Vary With Different Materials And Feeding Sizes.
